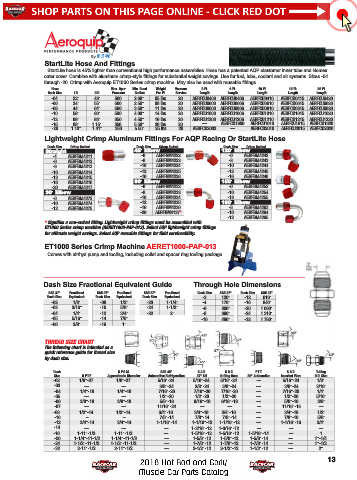

Page 14 - 2018 Racecar Engineering Hot Rod and Early Muscle Car Parts and Accessories Catalog

StartLite Hose And Fittings
6WDUW/LWH KRVH LV OLJKWHU WKDQ FRQYHQWLRQDO KLJK SHUIRUPDQFH DVVHPEOLHV +RVH KDV D SDWHQWHG $43 HODVWRPHU LQQHU WXEH DQG 1RPH[
RXWHU FRYHU &RPELQH ZLWK DOXPLQXP FULPS VW\OH ¿WWLQJV IRU VXEVWDQWLDO ZHLJKW VDYLQJV 8VH IRU IXHO OXEH FRRODQW DQG DLU V\VWHPV 6L]HV
WKURXJK &ULPS ZLWK $HURTXLS (7 6HULHV FULPS PDFKLQH 0D\ DOVR EH XVHG ZLWK UHXVDEOH ¿WWLQJV
Hose Max. Oper. Min. Bend Weight Vacuum 3 Ft. 6 Ft. 10 Ft. 15 Ft. 20 Ft.
Dash Size I.D. O.D. Pressure Radius Per Ft. Service Length Length Length Length Length
-04 .22" .43" 500 2.00" .05 lbs. 20 AERFCU0403 AERFCU0406 AERFCU0410 AERFCU0415 AERFCU0420
-06 .34" .55" 500 2.50" .08 lbs. 20 AERFCU0603 AERFCU0606 AERFCU0610 AERFCU0615 AERFCU0620
-08 .44" .64" 500 3.50" .11 lbs. 20 AERFCU0803 AERFCU0806 AERFCU0810 AERFCU0815 AERFCU0820
-10 .56" .80" 500 4.00" .14 lbs. 20 AERFCU1003 AERFCU1006 AERFCU1010 AERFCU1015 AERFCU1020
-12 .69" .93" 350 4.50" .16 lbs. 20 AERFCU1203 AERFCU1206 AERFCU1210 AERFCU1215 AERFCU1220
-16 .88" 1.15" 350 5.50" .20 lbs. 20 — AERFCU1606 AERFCU1610 AERFCU1615 AERFCU1620
-20 1.13" 1.41" 350 5.50" .25 lbs. 20 AERFCU2003 — AERFCU2010 AERFCU2015 AERFCU2020
Lightweight Crimp Aluminum Fittings For AQP Racing Or StartLite Hose
Dash Size Crimp Swivel Dash Size Crimp Swivel Dash Size Crimp Swivel
Straight 45° Elbow 120° Elbow
-4 AERFBM4211 -6 AERFBM4222 -6 AERFBM4242
-6 AERFBM4212 -8 AERFBM4223 -8 AERFBM4243
-8 AERFBM4213 -10 AERFBM4224 -10 AERFBM4244
-10 AERFBM4214 -12 AERFBM4225 -12 AERFBM4245
-12 AERFBM4215 -16 AERFBM4226 -16 AERFBM4246
-16 AERFBM4216 90° Elbow 150° Elbow
-20 AERFBM4217 -6 AERFBM4232 -6 AERFBM4252
30° Elbow -8 AERFBM4233 -10 AERFBM4254
-6 AERFBM4272 -10 AERFBM4234 -12 AERFBM4255
-10 AERFBM4274 -12 AERFBM4235 180° Elbow
-12 AERFBM4275 -16 AERFBM4236 -8 AERFBM4263
-20 AERFBM4137* -10 AERFBM4264
-12 AERFBM4265
* Signifies a non-swivel fitting. Lightweight crimp fittings must be assembled with
ET1000 Series crimp machine (AERET1000-PAP-013). Select AQP lightweight crimp fittings
for ultimate weight savings. Select AQP reusable fittings for field serviceability.
ET1000 Series Crimp Machine AERET1000-PAP-013
Comes with air/hyd pump and tooling, including collet and spacer ring tooling package.

Dash Size Fractional Equivalent Guide Through Hole Dimensions
SAE 37° Fractional SAE 37° Fractional SAE 37° Fractional Dash Size SAE 37° Dash Size SAE 37°
Dash Size Equivalent Dash Size Equivalent Dash Size Equivalent -3 .120" -12 .610"
-02 1/8" -08 1/2" -20 1-1/4" -4 .170" -16 .840"
-03 3/16" -10 5/8" -24 1-1/2" -6 .300" -20 1.080"
-04 1/4" -12 3/4" -32 2" -8 .390" -24 1.310"
-05 5/16" -14 7/8" -10 .480" -32 1.780"
-06 3/8" -16 1"
THREAD SIZE CHART
The following chart is intended as a
quick reference guide for thread size
by dash size.
Dash N.P.S.M. SAE 45° S.A.E. S.A.E. P.T.T. S.A.E. Tubing
Size N.P.T.F. Approximate Diameter Automotive Refrigeration 37° AN O-Ring Boss 30° Automotive Inverted Flare O.D. Size
-02 1/8"-27 1/8"-27 5/16"-24 5/16"-24 5/16"-24 — 5/16"-24 1/8"
-03 — — 3/8"-24 3/8"-24 3/8"-24 — 3/8"-24 3/16"
-04 1/4"-18 1/4"-18 7/16"-20 7/16"-20 7/16"-20 — 7/16"-20 1/4"
-05 — — 1/2"-20 1/2"-20 1/2"-20 — 1/2"-20 5/16"
-06 3/8"-18 3/8"-18 5/8"-18 9/16"-18 9/16"-18 — 5/8"-18 3/8"
-07 — — 11/16"-24 — — — 11/16"-18 —
-08 1/2"-14 1/2"-14 3/4"-16 3/4"-16 3/4"-16 — 3/4"-18 1/2"
-10 – – 7/8"-14 7/8"-14 7/8"-14 — 7/8"-18 5/8"
-12 3/4"-14 3/4"-14 1-1/16"-14 1-1/16"-12 1-1/16"-12 — 1-1/16"-16 3/4"
-14 — — — 1-3/16"-12 1-3/16"-12 — — —
-16 1-11"-1/2 1-11"-1/2 — 1-5/16"-12 1-5/16"-12 1-5/16"-14 — 1
-20 1-1/4"-11-1/2 1-1/4"-11-1/2 — 1-5/8"-12 1-5/8"-12 1-5/8"-14 — 1"-1/4
-24 1-1/2"-11-1/2 1-1/2"-11-1/2 — 1-7/8"-12 1-7/8"-12 1-7/8"-14 — 1"-1/2
-32 2-11"-1/2 2-11"-1/2 — 2-1/2"-12 2-1/2"-12 1-1/2"-12 — 2"
2018 HOT ROD AND EARLY MUSCLE 13
