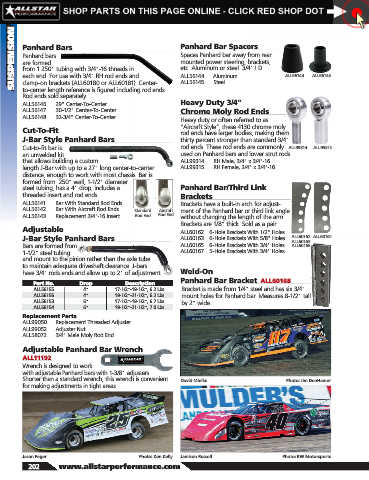

Page 204 - 2020 Allstar Performance Parts and Equipment Catalog

SUSPENSION Panhard Bars Panhard Bar Spacers ALL56144 ALL56145

Spaces Panhard bar away from rear
Panhard bars
mounted power steering, brackets,
are formed
etc. Aluminum or steel. 3/4" I.D.
from 1.250" tubing with 3/4"-16 threads in
each end. For use with 3/4" RH rod ends and
ALL56144 .....Aluminum
clamp-on brackets (ALL60180 or ALL60181). Center-
to-center length reference is figured including rod ends.
Rod ends sold separately. ALL56145 ..... Steel
Heavy Duty 3/4"
ALL56146 ..... 29" Center-To-Center
ALL56147 ..... 30-1/2" Center-To-Center Chrome Moly Rod Ends
ALL56148 ..... 32-3/4" Center-To-Center
Heavy duty or often referred to as
“Aircraft Style”, these 4130 chrome moly
Cut-To-Fit rod ends have larger bodies, making them
J-Bar Style Panhard Bars thirty percent stronger than standard 3/4"
Cut-to-fit bar is rod ends. These rod ends are commonly ALL99314 ALL99315
an unwelded kit used on Panhard bars and lower strut rods.
that allows building a custom ALL99314 ..... RH Male, 3/4" x 3/4"-16
length J-Bar with up to a 27" long center-to-center ALL99315 ..... RH Female, 3/4" x 3/4"-16
distance, enough to work with most chassis. Bar is
formed from .250" wall, 1-1/2" diameter
steel tubing, has a 4" drop, includes a Panhard Bar/Third Link
threaded insert and rod ends. Brackets
ALL56141 ..... Bar With Standard Rod Ends Brackets have a built-in arch for adjust-
ALL56142 ..... Bar With Aircraft Rod Ends Standard Aircraft ment of the Panhard bar or third link angle
ALL56143 ..... Replacement 3/4"-16 Insert Rod End Rod End
without changing the length of the arm.
Brackets are 1/8" thick. Sold as a pair.
Adjustable
ALL60162 ...6-Hole Brackets With 1/2" Holes
J-Bar Style Panhard Bars ALL60163 ...6-Hole Brackets With 5/8" Holes ALL60162 ALL60167
ALL60163
Bars are formed from ALL60165 ...6-Hole Brackets With 3/4" Holes ALL60165
1-1/2" steel tubing ALL60167 ...5-Hole Brackets With 3/4" Holes
and mount to the pinion rather than the axle tube
to maintain adequate driveshaft clearance. J-bars
have 3/4" rods ends and allow up to 2" of adjustment. Weld-On
Panhard Bar Bracket ALL60168
Part No. Drop Description
ALL56155 4" 17-1/2"-19-1/2", 6.2 Lbs. Bracket is made from 1/4" steel and has six 3/4"
ALL56156 4" 19-1/2"-21-1/2", 6.2 Lbs. mount holes for Panhard bar. Measures 8-1/2" tall
ALL56153 6" 17-1/2"-19-1/2", 6.7 Lbs. by 2" wide.
ALL56154 6" 19-1/2"-21-1/2", 7.0 Lbs.
Replacement Parts
ALL99050 ..... Replacement Threaded Adjuster
ALL99052 ..... Adjuster Nut
ALL58072 ..... 3/4" Male Moly Rod End

Adjustable Panhard Bar Wrench
ALL11192
Wrench is designed to work
with adjustable Panhard bars with 1-3/8" adjusters.
Shorter than a standard wrench, this wrench is convenient David Mielke Photo: Jim DenHamer
for making adjustments in tight areas.

Jason Feger Photo: Ken Kelly Jamison Russell Photo: RW Motorsports
202 www.allstarperformance.com
