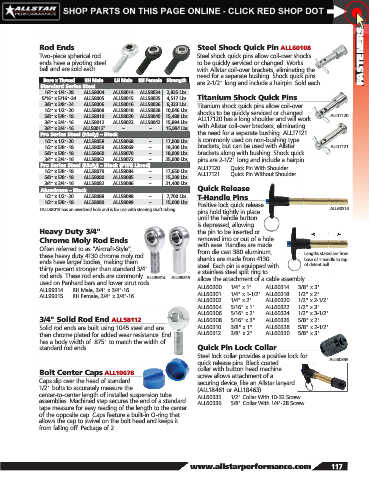

Page 119 - 2020 Allstar Performance Parts and Equipment Catalog

Rod Ends Steel Shock Quick Pin ALL60108
Two-piece spherical rod Steel shock quick pins allow coil-over shocks FASTENERS
ends have a pivoting steel to be quickly serviced or changed. Works
ball and are sold each. with Allstar coil-over brackets, eliminating the
need for a separate bushing. Shock quick pins
Bore x Thread RH Male LH Male RH Female Strength are 2-1/2" long and include a hairpin. Sold each.
Standard Series Steel
1/4" x 1/4"-28 ALL58004 ALL58014 ALL58034 2,835 Lbs
5/16" x 5/16"-24 ALL58005 ALL58015 ALL58035 4,517 Lbs Titanium Shock Quick Pins
3/8" x 3/8"-24 ALL58006 ALL58016 ALL58036 6,323 Lbs Titanium shock quick pins allow coil-over
1/2" x 1/2"-20 ALL58008 ALL58018 ALL58038 10,046 Lbs shocks to be quickly serviced or changed.
5/8" x 5/8"-18 ALL58010 ALL58020 ALL58040 15,488 Lbs ALL17120
3/4" x 3/4"-16 ALL58012 ALL58022 ALL58042 15,894 Lbs ALL17120 has a long shoulder and will work
3/4" x 3/4"-16 ALL58013 † – – 15,894 Lbs with Allstar coil-over brackets, eliminating
Pro Series Steel (Moly) – Black the need for a separate bushing. ALL17121
1/2" x 1/2"-20 ALL58058 ALL58068 – 17,000 Lbs is commonly used on non-bushing type
1/2" x 5/8"-18 ALL58059 ALL58069 – 19,300 Lbs brackets, but can be used with Allstar ALL17121
5/8" x 5/8"-18 ALL58060 ALL58070 – 18,000 Lbs brackets along with bushing. Shock quick
3/4" x 3/4"-16 ALL58062 ALL58072 – 25,000 Lbs pins are 2-1/2" long and include a hairpin.
Pro Series Steel (Moly) – Black (PTFE Lined) ALL17120 ...... Quick Pin With Shoulder
1/2" x 5/8"-18 ALL58079 ALL58084 – 17,650 Lbs ALL17121 ...... Quick Pin Without Shoulder
5/8" x 5/8"-18 ALL58080 ALL58085 – 15,200 Lbs
3/4" x 3/4"-16 ALL58082 ALL58086 – 21,400 Lbs
Aluminum – Black Quick Release
1/2" x 1/2"-20 ALL58088 ALL58098 – 7,700 Lbs T-Handle Pins
1/2" x 5/8"-18 ALL58089 ALL58099 – 15,000 Lbs
Positive lock quick release
†ALL58013 has an oversized hole and is for use with steering shaft tubing. ALL60314
pins hold tightly in place
until the handle button
is depressed, allowing
Heavy Duty 3/4" the pin to be inserted or
Chrome Moly Rod Ends removed into or out of a hole
with ease. Handles are made
Often referred to as “Aircraft-Style”,
these heavy duty 4130 chrome moly rod from die cast 380 aluminum, Lengths stated are from
ends have larger bodies, making them shanks are made from 4130 base of T-handle to top
of detent ball.
thirty percent stronger than standard 3/4" steel. Each pin is equipped with
a stainless steel split ring to
rod ends. These rod ends are commonly ALL99314 ALL99315 allow the attachment of a cable assembly.
used on Panhard bars and lower strut rods.
ALL60300 ..... 1/4" x 1" ALL60314 ..... 3/8" x 3"
ALL99314 ..... RH Male, 3/4" x 3/4"-16
ALL99315 ..... RH Female, 3/4" x 3/4"-16 ALL60301 ..... 1/4" x 1-1/2" ALL60318 ..... 1/2" x 2"
ALL60302 ..... 1/4" x 2" ALL60320 ..... 1/2" x 2-1/2"
ALL60304 ..... 5/16" x 1" ALL60322..... 1/2" x 3"
ALL60306 ..... 5/16" x 2" ALL60324 ..... 1/2" x 3-1/2"
3/4" Solid Rod End ALL58112 ALL60308 ..... 5/16" x 3" ALL60326 ..... 5/8" x 2"
Solid rod ends are built using 1045 steel and are ALL60310 ..... 3/8" x 1" ALL60328 ..... 5/8" x 2-1/2"
then chrome plated for added wear resistance. End ALL60312 ..... 3/8" x 2" ALL60330 .... 5/8" x 3"
has a body width of .875" to match the width of
standard rod ends. Quick Pin Lock Collar
Steel lock collar provides a positive lock for
ALL60335
quick release pins. Black coated
collar with button head machine
Bolt Center Caps ALL10678
screw allows attachment of a
Caps slip over the head of standard securing device, like an Allstar lanyard
1/2" bolts to accurately measure the (ALL18461 or ALL18463).
center-to-center length of installed suspension tube ALL60335 ..... 1/2" Collar With 10-32 Screw
assemblies. Machined step secures the end of a standard ALL60336 ..... 5/8" Collar With 1/4"-28 Screw
tape measure for easy reading of the length to the center
of the opposite cap. Caps feature a built-in O-ring that
allows the cap to swivel on the bolt head and keeps it
from falling off. Package of 2.

www.allstarperformance.com 117
