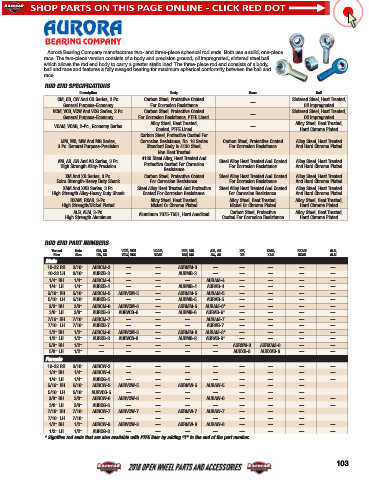

Page 104 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

(\YVYH )LHYPUN *VTWHU` THU\MHJ[\YLZ [^V HUK [OYLL WPLJL ZWOLYPJHS YVK LUKZ )V[O \ZL H ZVSPK VUL WPLJL
YHJL ;OL [^V WPLJL ]LYZPVU JVUZPZ[Z VM H IVK` HUK WYLJPZPVU NYV\UK VPS PTWYLNUH[LK ZPU[LYLK Z[LLS IHSS
^OPJO HSSV^Z [OL YVK LUK IVK` [V JHYY` H NYLH[LY Z[H[PJ SVHK ;OL [OYLL WPLJL YVK LUK JVUZPZ[Z VM H IVK`
IHSS HUK YHJL HUK MLH[\YLZ H M\SS` Z^HNLK ILHYPUN MVY TH_PT\T ZWOLYPJHS JVUMVYTP[` IL[^LLU [OL IHSS HUK
race.
ROD END SPECIFICATIONS
Description Body Race Ball
CM, CB, CW And CG Series, 2 Pc. Carbon Steel, Protective Coated Sintered Steel, Heat Treated,
General Purpose-Economy For Corrosion Resistance — Oil Impregnated
VCM, VCB, VCW And VCG Series, 2 Pc. Carbon Steel, Protective Coated — Sintered Steel, Heat Treated,
General Purpose-Economy For Corrosion Resistance, PTFE Lined. Oil Impregnated
Alloy Steel, Heat Treated, Alloy Steel, Heat Treated,
VCAM, VCAB, 2-Pc., Economy Series —
Coated, PTFE Lined Hard Chrome Plated
Carbon Steel, Protective Coated For
MM, MB, MW And MG Series, Corrosion Resistance, No. 16 Series Carbon Steel, Protective Coated Alloy Steel, Heat Treated
3 Pc. General Purpose-Precision Standard Body Is 4130 Steel, For Corrosion Resistance And Hard Chrome Plated
Non Heat Treated
4130 Steel Alloy, Heat Treated And
AM, AB, AW And AG Series, 3 Pc. Steel Alloy Heat Treated And Coated Alloy Steel, Heat Treated
High Strength Alloy-Precision Protective Coated For Corrosion For Corrosion Resistance And Hard Chrome Plated
Resistance
XM And XB Series, 3 Pc. Carbon Steel, Protective Coated Steel Alloy Heat Treated And Coated Alloy Steel, Heat Treated
Extra Strength-Heavy Duty Shank For Corrosion Resistance. For Corrosion Resistance And Hard Chrome Plated
XAM And XAB Series, 3 Pc. Steel Alloy Heat Treated And Protective Steel Alloy Heat Treated And Coated Alloy Steel, Heat Treated
High Strength Alloy-Heavy Duty Shank Coated For Corrosion Resistance. For Corrosion Resistance. And Hard Chrome Plated
RXAM, RXAB, 3-Pc. Alloy Steel, Heat Treated, Alloy Steel, Heat Treated, Alloy Steel, Heat Treated,
High Strength/Nickel Plated Nickel Or Chrome Plated Nickel Or Chrome Plated Hard Chrome Plated
ALB, ALM, 3-Pc. Carbon Steel, Protective Alloy Steel, Heat Treated,
High Strength Aluminum Aluminum 7075-T651, Hard Anodized Coated For Corrosion Resistance Hard Chrome Plated

ROD END PART NUMBERS
Thread Hole CM, CB VCM, VCB VCAM, MM, MB AM, AB XM, XAM, RXAM ALB,
Size Size CW, CG VCW, VCG VCAB MW, MG AW, AG XB XAB RXAB ALM
Male
10-32 RH 3/16" AURCM-3 — — AURMM-3 — — — — —
10-32 LH 3/16" AURCB-3 — — AURMB-3 — — — — —
1/4" RH 1/4" AURCM-4 — — — AURAM-4 — — — —
1/4" LH 1/4" AURCB-4 — — AURMB-4 AURAB-4 — — — —
5/16" RH 5/16" AURCM-5 AURVCM-5 — AURMM-5 AURAM-5 — — — —
5/16" LH 5/16" AURCB-5 — — AURMB-5 AURAB-5 — — — —
3/8" RH 3/8" AURCM-6 AURVCM-6 — AURMM-6 AURAM-6* — — — —
3/8" LH 3/8" AURCB-6 AURVCB-6 — AURMB-6 AURAB-6* — — — —
7/16" RH 7/16" AURCM-7 — — — AURAM-7 — — — —
7/16" LH 7/16" AURCB-7 — — — AURAB-7 — — — —
1/2" RH 1/2" AURCM-8 AURVCM-8 — AURMM-8 AURAM-8* — — — —
1/2" LH 1/2" AURCB-8 AURVCB-8 — AURMB-8 AURAB-8* — — — —
5/8" RH 1/2" — — — — — AURXM-8 AURXAM-8 — —
5/8" LH 1/2" — — — — — AURXB-8 AURXAB-8 — —
Female
10-32 RH 3/16" AURCW-3 — — — — — — — —
1/4" RH 1/4" AURCW-4 — — — — — — — —
1/4" LH 1/4" AURCG-4 — — — — — — — —
5/16" RH 5/16" AURCW-5 AURVCW-5 — AURMW-5 AURAW-5 — — —
5/16" LH 5/16" AURVCG-5 — — — — — — —
3/8" RH 3/8" AURCW-6 AURVCW-6 — — AURAW-6 — — — —
3/8" LH 3/8" AURCG-6 — — — — — — — —
7/16" RH 7/16" AURCW-7 AURVCW-7 — AURMW-7 AURAW-7 — — —
7/16" LH 7/16" — — — — — — — —
1/2" RH 1/2" AURCW-8 AURVCW-8 — AURMW-8 AURAW-8 — — — —
1/2" LH 1/2" AURCG-8 — — — — — — — —
* Signifies rod ends that are also available with PTFE liner by adding “T” to the end of the part number.
