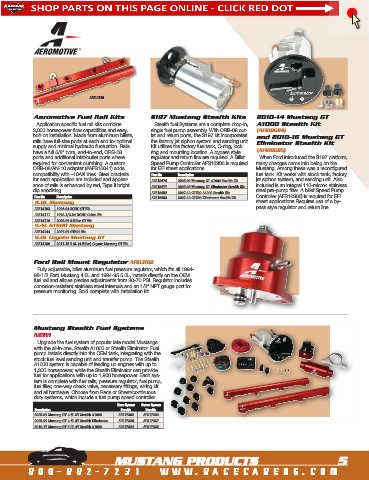

Page 6 - 2018 Racecar Engineering Late-Model Muscle Car Parts and Accessories Catalog

AFS14130

Aeromotive Fuel Rail Kits S197 Mustang Stealth Kits 2010-14 Mustang GT
Application specific fuel rail kits combine Stealth fuel Systems are a complete drop-in, A1000 Stealth Kit
3,000 horsepower flow capabilities and easy, single fuel pump assembly. With ORB-08 out- (AFS18694)
bolt-on installation. Made from aluminum billets, let and return ports, the S197 kit incorporates and 2010-16 Mustang GT
rails have full-size ports at each end for optimal the factory jet siphon system and sending unit.
supply and minimal hydraulic fluctuation. Rails Kit utilizes the factory fuel tank, O-ring, lock Eliminator Stealth Kit
have a full 5/8” bore, end-to-end, ORB-08 ring and mounting location. A bypass style (AFS18695)
ports and additional inlet/outlet ports where regulator and return line are required. A Billet When Ford introduced the S197 platform,
required for convenient plumbing. A custom Speed Pump Controller AFS16306 is required many changes came into being on the
ORB-08/AN-10 adapter (#AFS15641) adds for EFI street applications. Mustang. Among these was a reconfigured
compatibility with –10AN lines. Steel brackets Part No. Description fuel tank. Kit works with stock tank, factory
for each application are included and appear- AFS18676 2005-09 Mustang GT A1000 Stealth Kit jet siphon system, and sending unit. Also
ance of rails is enhanced by red, Type II bright AFS18677 2005-09 Mustang GT Eliminator Stealth Kit included is an integral 110-micron stainless
dip anodizing. AFS18682 2007-12 GT500 A1000 Stealth Kit steel pre-pump filter. A billet Speed Pump
Part No. Description AFS18683 2007-12 GT500 Eliminator Stealth Kit Controller (AFS16306) is required for EFI
4.6L Mustang street applications.Requires use of a by-
AFS14103 1996-04 SOHC GT Kit pass style regulator and return line.
AFS14111 1998-1/2-04 DOHC Cobra Kit
AFS14116 2005-09 3-Valve GT Kit
5.4L GT500 Mustang
AFS14144 2007-09 GT500 Kit
5.0L Coyote Mustang GT
AFS14130 2011-16 5.0L (4-Valve) Coyote Mustang GT Kit

Ford Rail Mount Regulator AFS13102
Fully adjustable, billet aluminum fuel pressure regulator, which fits all 1994-
98-1/2 Ford Mustang 4.6L and 1994-95 5.0L, installs directly on the OEM
fuel rail and allows precise adjustments from 30-70 PSI. Regulator includes
corrosion-resistant stainless steel internals and an 1/8" NPT gauge port for
pressure monitoring. Sold complete with installation kit.

Mustang Stealth Fuel Systems
NEW!
Upgrade the fuel system of popular late model Mustangs
with the all-in-one, Stealth A1000 or Stealth Eliminator. Fuel
pump installs directly into the OEM tank, integrating with the
stock fuel level sending unit and transfer pump. The Stealth
A1000 system is capable of feeding up engines with up to
1,300 horsepower, while the Stealth Eliminator can provide
fuel for applications with up to 1,900 horsepower. Each sys-
tem is complete with fuel rails, pressure regulator, fuel pump,
fuel filter, one-way check valve, necessary fittings, wiring kit
and all hardware. Choose from Race or Street/continuous
duty systems, which include a fuel pump speed controller.
Race System Street System
Description Part No. Part No.
2005-09 Mustang GT 4.6L 3V Stealth A1000 AFS17302 AFS17303
2005-09 Mustang GT 4.6L 3V Stealth Eliminator AFS17326 AFS17327
2010-17 Mustang GT 5.0L 4V Stealth A1000 AFS17324 AFS17325

MUSTANG PRODUCTS 5
