Navigation:  Job Editor Menu > File Menu > Export > ODB++

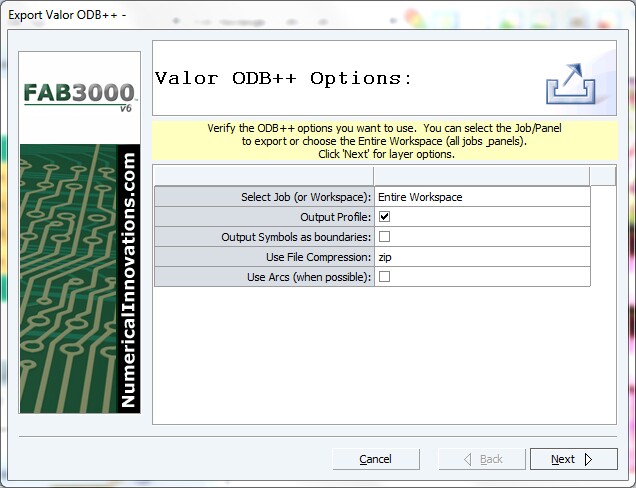

Writes an ODB++ database to an external file system.





Note: The ODB++ Matrix requires layers to have their types (ie. Top, Bottom, Silkscreen, etc.) and  sequence order (ie. layer stackup) defined before exporting.  To define both Layer Types & Stackup goto Layers Table..., before exporting ODB++ data
