Writes an Image (TIFF, PNG, BMP, GIF, etc.) file to an external file system.
Note: To export an image, you must be in the "CAD Viewer", because ACE requires the viewer to render the pixels that will be used in the exported images. ACE will automatically goto the Viewer once you have finished imported data.

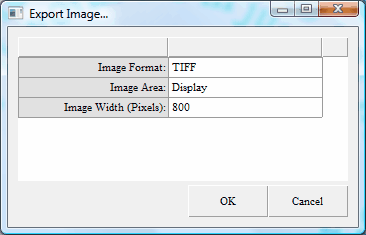

Image Format: |
Choose the Image Format you want to export (TIFF, JPEG, BMP, etc.) |
Image Area: |
Verify the viewer display area to export to your image file. You may select "Extents" (the entire design), or "Display" (the current viewer display). Display is useful when you want to make an image file of a close-up area. |
Image Width (Pixels): |
Determine the size of the image in pixels. 5000 pixels is the maximum width. |
