Monitoring conditional dependencies

Monitor HCL Workload Automation jobs by using the Dynamic Workload Console or the conman command line.

The Dynamic Workload Console displays the following sample information:

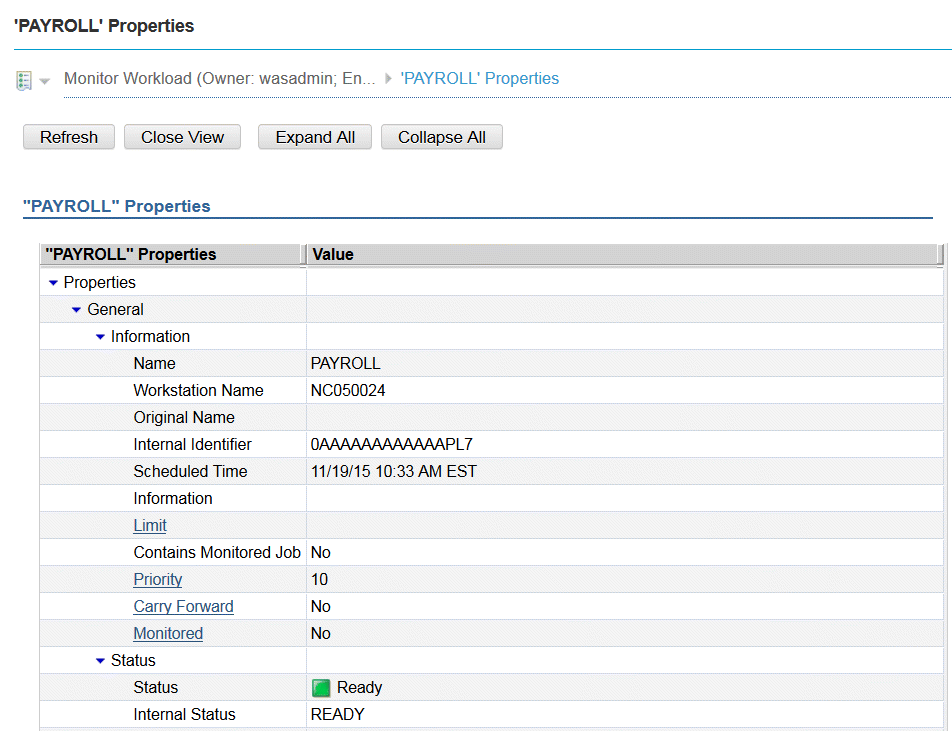

The job stream properties as available in the Dynamic Workload Console.

The job stream properties as available in the Dynamic Workload Console.

You can monitor output conditions using the conman showjobs and showschedules command line.

In this example, you can see the status of the PAYROLL job stream after submission and before it is run:

%ss @#PAYROLL
                                                       (Est)  (Est)    Jobs  Sch
Workstation      Job Stream       SchedTime   State Pr Start  Elapse   #  OK Lim
NC050024        #PAYROLL          0958 11/19  HOLD  10                 7   0

This example shows the details about the jobs in the PAYROLL job stream:

%sj @#PAYROLL
                                                                                               (Est)  (Est)
Workstation      Job Stream       SchedTime  Job                       State Pr Start  Elapse ReturnCode Dependencies

NC050024        #PAYROLL          0958 11/19 ************************** READY 10
                              (NC050024_1_1#)OPERATOR_INTERVENTION      HOLD  10                         ABSENCES IF UNKNOWN_ERR
                              (NC050024_1_1#)DB_BACKUP                  HOLD  10                         JOIN SUCCESS 1 OF
                                                                                                          ABSENCES IF SUCC
                                                                                                     ABSENCES_RETRY IF SUCC
                              (NC050024_1_1#)ABSENCES                    READY 10
                              (NC050024_1_1#)RESTART_DB                  HOLD  10                       ABSENCES IF DB_FAIL
                              (NC050024_1_1#)RESTART_WAS                 HOLD  10                       ABSENCES IF WAS_FAIL
                              (NC050024_1_1#)TEMP_CLEANUP                HOLD  10                       ABSENCES IF TEMP_FULL
                              (NC050024_1_1#)ABSENCES_RETRY              HOLD  10                       JOIN PROBLEM_SOLVING 1 OF
                                                                                                              RESTART_DB
                                                                                                              RESTART_WAS
                                                                                                              TEMP_CLEANUP

If you run the showjob;info command on one of the jobs, you can obtain some details about the job:

%sj NC050024#PAYROLL.ABSENCES;info
-------- Restart ---------
Workstation   Job Stream    SchedTime  Job                                    JobFile                  Opt  Job      Prompt
NC050024      #PAYROLL       0958 11/19
                           (NC050024_1_1#)ABSENCES
.......                                                                       oc: DB_FAIL n/a "RC=1"
                                                                              oc: TEMP_FULL n/a "RC=3"
                                                                              oc: UNKNOWN_ERR n/a "RC>3"
                                                                              oc: WAS_FAIL n/a "RC=2"

To obtain more details, run the showjob;props command. The following sample output is a subset of the information you obtain by running this command:

%sj NC050024#PAYROLL.ABSENCES;props
General Information
  Job = ABSENCES
  Workstation = NC050024_1_1
  .....
  Other Output Conditions
    DB_FAIL = n/a "RC=1"
    TEMP_FULL = n/a "RC=3"
    UNKNOWN_ERR = n/a "RC>3"
    WAS_FAIL = n/a "RC=2"

........

Monitoring join conditional dependencies

The Dynamic Workload Console displays the following sample information:

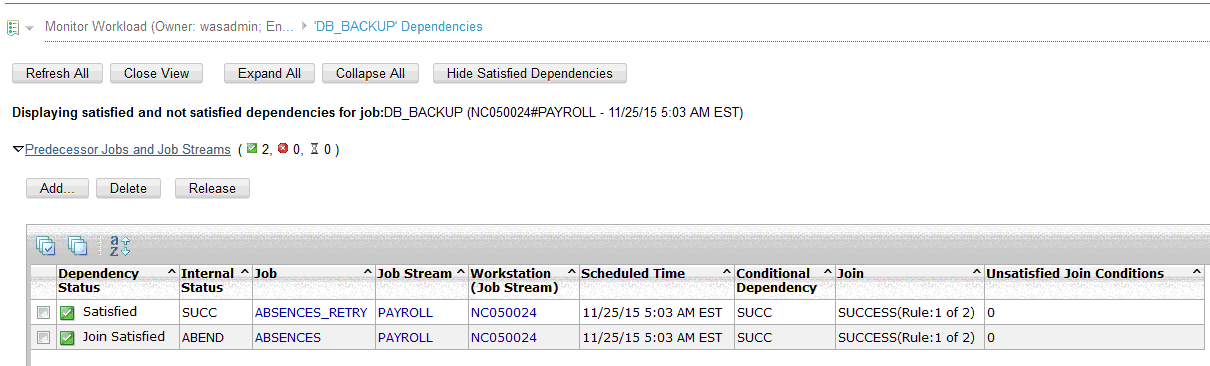

Information about join conditional dependencies in Dynamic Workload Console.

Information about join conditional dependencies in Dynamic Workload Console.

Note: From the Dynamic Workload Console, you can retrieve information about dependencies in the join, whether or not they are satisfied, while this is not possible from the command line.

Join dependencies are represented using composer-like syntax. Only unresolved and undecided join dependencies are displayed. If the join dependency is satisfied, no dependencies are displayed.

Here is an example of how the join conditional dependencies are displayed using conman. You can see that the PROBLEM_SOLVING join dependency has been satisfied and is no longer displayed. The SUCCESS join dependency will be evaluated next:

%sj @#PAYROLL
                                                                                               (Est)  (Est)
Workstation      Job Stream       SchedTime  Job                                      State Pr Start  Elapse ReturnCode Dependencies

NC050024        #PAYROLL          1007 11/19 **************************************** READY 10 10:08 (00:01)
                              (NC050024_1_1#)OPERATOR_INTERVENTION                    SUPPR 10                          ABSENCES IF UNKNOWN_ERR
                              (NC050024_1_1#)DB_BACKUP                                HOLD  10       (00:01)            JOIN SUCCESS 1 OF
                                                                                                                          ABSENCES IF SUCC
                                                                                                                          ABSENCES_RETRY IF SUCC
                              (NC050024_1_1#)ABSENCES                                 ABEND 10 10:08  00:01           1 #J355305499
                              (NC050024_1_1#)RESTART_DB                               SUCC  10 10:08  00:01           0 #J355305500
                              (NC050024_1_1#)RESTART_WAS                              SUPPR 10                          ABSENCES IF WAS_FAIL
                              (NC050024_1_1#)TEMP_CLEANUP                             SUPPR 10                          ABSENCES IF TEMP_FULL
                              (NC050024_1_1#)ABSENCES_RETRY                           SUCC  10 10:09  00:01           0 #J355305501

When the job stream completes, the ABSENCES job completed in ABEND status, which caused the RESTART_DB job to start and recover the problem. The REATART_WAS and TEMP_CLEANUP jobs have been suppressed, because they are no longer necessary. The PROBLEM_SOLVING join dependency is now satisfied. The ABSENCES_RETRY job also completes successfully, causing the SUCCESS join dependency to be satisfied, which in turn causes the DB_BACKUP job to start. You can retrieve the following information from the showjobs command:

%sj @#PAYROLL
                                                                       (Est)  (Est)
Workstation      Job Stream       SchedTime  Job                     State Pr Start  Elapse ReturnCode Dependencies

NC050024        #PAYROLL          1007 11/19 **************************************** ABEND 10 10:08  00:02
   (NC050024_1_1#)OPERATOR_INTERVENTION                    SUPPR 10                          ABSENCES IF UNKNOWN_ERR
   (NC050024_1_1#)DB_BACKUP                                SUCC  10 10:09  00:01           0 #J355305502
   (NC050024_1_1#)ABSENCES                                 ABEND 10 10:08  00:01           1 #J355305499
   (NC050024_1_1#)RESTART_DB                               SUCC  10 10:08  00:01           0 #J355305500
   (NC050024_1_1#)RESTART_WAS                              SUPPR 10                          ABSENCES IF WAS_FAIL
   (NC050024_1_1#)TEMP_CLEANUP                             SUPPR 10                          ABSENCES IF TEMP_FULL
   (NC050024_1_1#)ABSENCES_RETRY                           SUCC  10 10:09  00:01           0 #J355305501

Note: There are some differences in the way dependencies are evaluated and resolved when plan replication is enabled. When it is enabled (the default setting), then dependencies are resolved as soon as the conditions necessary to satisfy the dependencies are present. When plan replication is not enabled, then a specific order of evaluation is followed where job streams with dependencies on external job streams or jobs are resolved first, and then dependencies between jobs within the job stream are resolved second.

Similarly, when plan replication is enabled, all dependencies of a job or job stream in suppress state are evaluated. When plan replication is not enabled, the evaluation of dependencies stops as soon as a job or job stream is put in suppress state because of a conditional dependency that was not satisfied. In both of these cases, the end result is the same, however, when monitoring the progress of the jobs and job streams in these two situations, you might see differing results.
