Configure ehcache

The ehcache is an open source Java™ distributed cache for caching, Java EE, and light-weight containers. Every node in the cluster can use the same campaign_ehcache.xml file or you can set a different campaign_ehcache.xml file for each node. For installations in a cluster, edit the campaign_ehcache.xml file so you do not have to restart the computer if you change any templates or offer folders.

Important:
  • If your installation is upgraded from a previous version, the campaign_ehcache.xml file is overwritten. Add and edit the following sections in the file.
  • You must also configure caching for user sessions (userSessionCache).

Use one of the following procedures to configure the ehcache file.

Configuring ehcache with Remote Method Invocation (RMI)

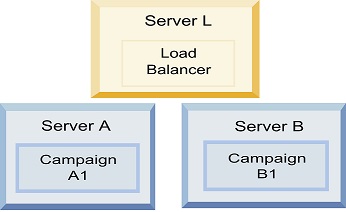

HCL® Campaign systems that have the following topography typically use RMI:


Server with load balancing across two servers

Go to the <IBM_IMS_HOME>\<CAMPAIGN_HOME>\conf directory and open the campaign_ehcache.xml file in a text editor. Then, make the following edits:

  • Uncomment the following section of the file.

    You must customize the settings for machineA and machineB to reflect your environment. Provide a pipe-separated list of all servers in the cluster and use fully qualified host names.

    <!--<cacheManagerPeerProviderFactory
class="net.sf.ehcache.distribution.RMICacheManagerPeerProviderFactory"
properties="peerDiscovery=manual, rmiUrls=//
<machineA>:40000/campaignApplicationCache|//
<machineB>:40000/campaignApplicationCache|//
<machineA>:40000/userSessionCache|//
<machineB>:40000/userSessionCache"/>
-->
  • Uncomment the following section of the file.
    <!--
<cacheEventListenerFactory
class="net.sf.ehcache.distribution.RMICacheReplicatorFactory"
properties="replicateAsynchronously=true, replicatePuts=true,
replicateUpdates=true, replicateUpdatesViaCopy=true,
replicateRemovals=true"/>
<cacheEventListenerFactory
class="com.unicacorp.Campaign.cache.CampaignCacheEventListenerFactory" />
-->
  • Uncomment the following section of the file.
    <!--
<cacheEventListenerFactory
class="net.sf.ehcache.distribution.RMICacheReplicatorFactory"
properties="replicateAsynchronously=true, replicatePuts=true,
replicateUpdates=true, replicateUpdatesViaCopy=true,
replicateRemovals=true"/>
-->

Configuring ehcache with multicast

HCL Campaign systems that have the following topography typically use multicast:


Server with load balancing over one server

Go to the <IBM_IMS_HOME>\<CAMPAIGN_HOME>\conf directory and open the campaign_ehcache.xml file in a text editor. Then, make the following edits:

  • Uncomment the following section of the file.

    You must customize the settings for multicastGroupAddress and multicastGroupPort to reflect your environment.

    <!--<cacheManagerPeerProviderFactory
class="net.sf.ehcache.distribution.RMICacheManagerPeerProviderFactory"
properties="peerDiscovery=automatic, multicastGroupAddress=230.0.0.1,
multicastGroupPort=4446, timeToLive=32"/>

<cacheManagerPeerListenerFactory
class="net.sf.ehcache.distribution.RMICacheManagerPeerListenerFactory"/>
-->
  • Uncomment the following section of the file.
    <!--
<cacheEventListenerFactory
class="net.sf.ehcache.distribution.RMICacheReplicatorFactory"
properties="replicateAsynchronously=true, replicatePuts=true,
replicateUpdates=true, replicateUpdatesViaCopy=true,
replicateRemovals=true"/>
<cacheEventListenerFactory
class="com.unicacorp.Campaign.cache.CampaignCacheEventListenerFactory" />
-->
