Setting up a Test Scenario using a Model Delta
 		Previous Topic  Next Topic

To begin a test scenario where model quantities will be adjusted:

  1. Click Capacity from the top navigation menu.
  2. Select a PFEP Customer where the model or models are produced using the drop down selection menu.
  3. Click Select Models.

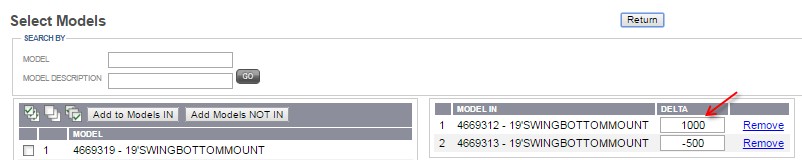

  1. Select the model or models that will be in the test scenario.
  2. Click Add to Models IN.
  3. Enter the quantity to increase or decrease (negative number) for each model in the test scenario.
  4. Click Return.

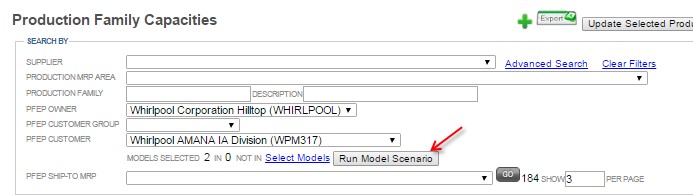

  1. Click Run Model Scenario.

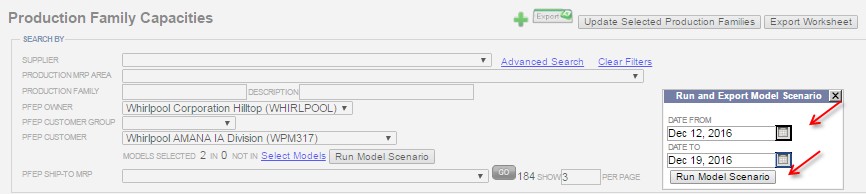

  1. Using the dialog box that appears, enter the time frame in the production schedule where the model adjustments will occur.
  2. Click Run Model Scenario.


  1. Click the Excel report icon on lower left of your screen. Note: If the system times out before the report can be downloaded, the report will be emailed to you.



See also:

Generated Report for Model Delta Scenario

Production Family Details for a Model Delta Scenario
