546 / 601
N1
Replacement Parts
Hardware
Hardware
Construction Options and
Modifications
Specifications subject to change without notice.
PBDR
12
code
depth

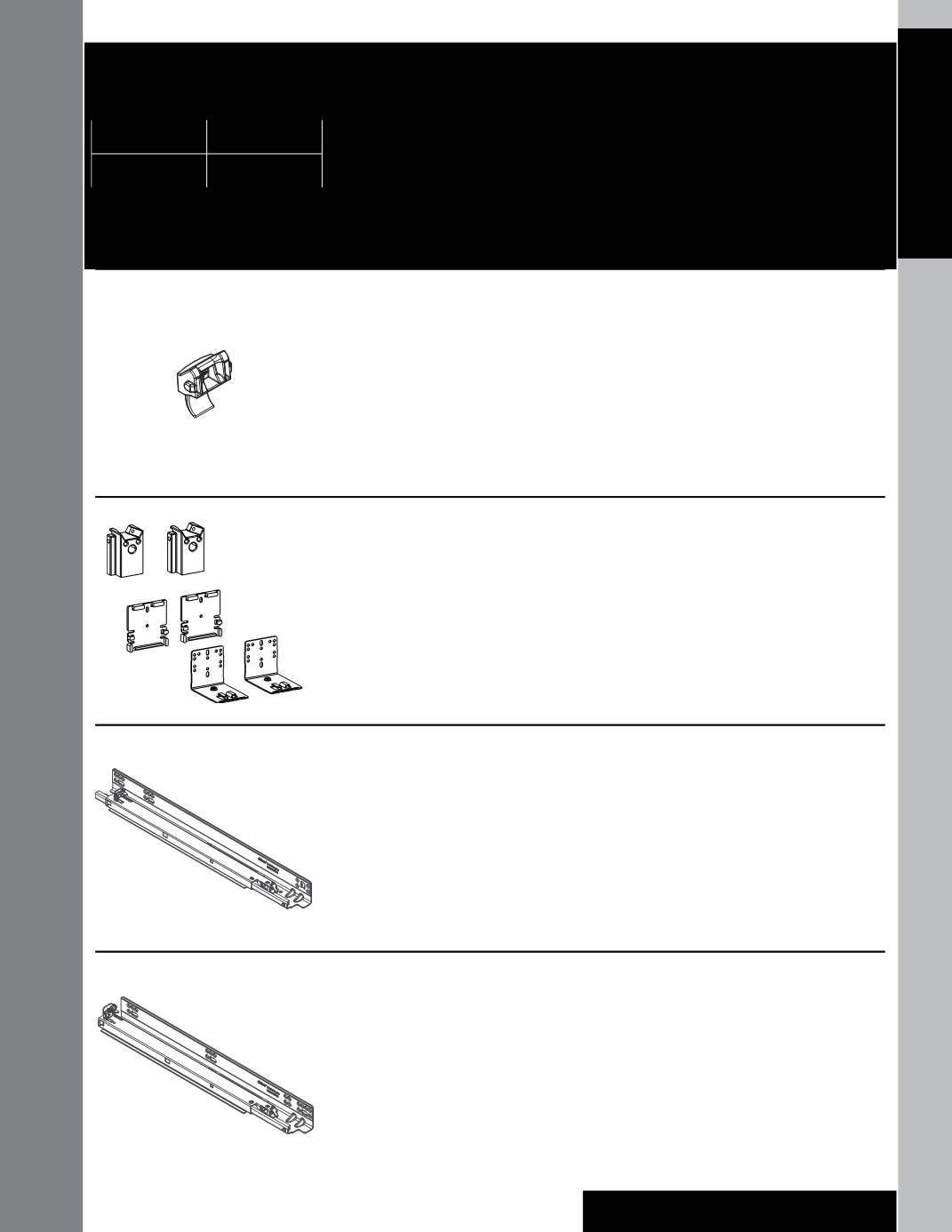

Whisper Touch™ Angle Restrictor Clip
WTHARC
• Limits hinge opening angle to 86 degrees (+/- 2
degrees)
•
Cannot
be used in cabinets with installed accessories
• Used for:
PH1516•SC — Whisper Touch™ Hinges - Full Overlay
PH12C•SC — Whisper Touch™ Hinges - Half Overlay
PHFM•SC — Whisper Touch™ Hinges - Face Mount
• Packaged and sold four per box
•
Note:
One clip per door is sufficient; however, one clip
per hinge results in less deflection
Whisper Touch™ Deluxe Dovetailed Roll-Out Tray Mounting Block Kit
BWTDXROTK
• Includes mounting blocks, drawer glide mounting sleeves
and fasteners
• Used for:
Whisper Touch™ Deluxe Dovetailed Roll-out Tray runners
• Packaged and sold as a pair
Whisper Touch™ Drawer Runners
PBWTDR12
PBWTDR15
PBWTDR18
PBWTDR21
PBWTDR24
• 90 lb. capacity
• Fully concealed
• Full extension runner, pulls out past the face frame
• Ball bearing operation
• Integrated mechanism closes drawers softly and quietly
• Packaged and sold as a pair
•
Must
order drawer clips separately
Whisper Touch™ Drawer Runners–Two Drawer Cabinets
PBWTDR21 •2
PBWTDR24 •2
• 90 lb. capacity
• Fully concealed
• Full extension runner, pulls out past the face frame
• Ball bearing operation
• Integrated mechanism closes drawers softly and quietly
• Used for:
BPPS_•2—Base Pot and Pan Organizer Two Drawer
BDDC—Base Deep Drawer Combination
BMSD—Base Multi-Storage Drawer
• Packaged and sold as a pair
•
Must
order drawer clips separately
