Molding Accents
Note
: Heavy, dark lines indicate finished surfaces.

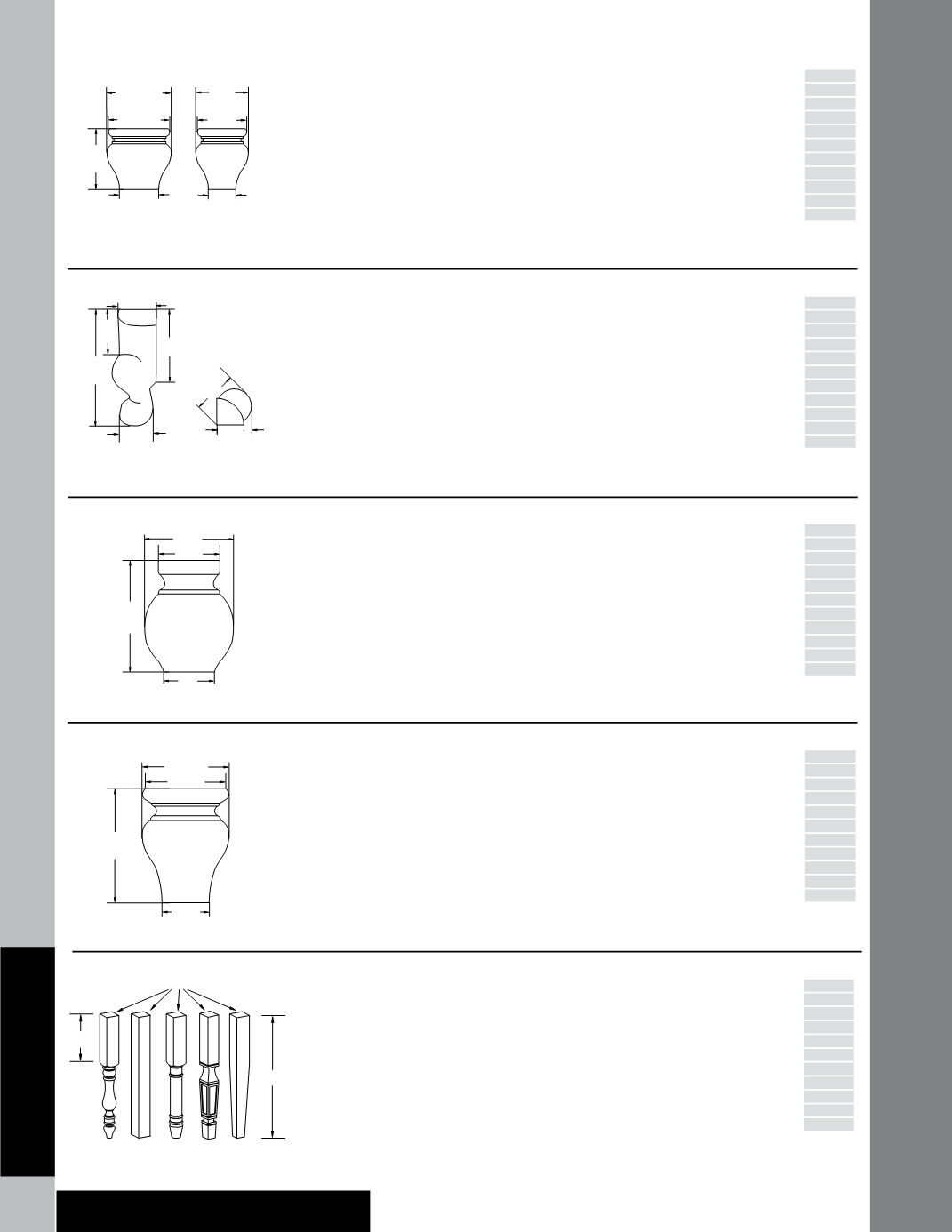

Decorative Enhancements
Cove Leg
CVL
4 3/4˝ x 3 7/8˝
CVL •2
3 7/8˝ x 3 7/8˝ square
• Solid wood
• Painted hardwood supplied for EverCore™
and Laminate
• Painted or Stained hardwood supplied for
Woodgrain Laminate door styles
• Oak supplied for Hickory
• Maple supplied for Birch
• Quartersawn door styles will be supplied in
plain sawn wood
• Decorative feet or legs should support the
cabinet by way of the end panels,
not
the
cabinet floor
v
A
v
B
v
C
v
E
v
H
v
L
LHG
v
LWG
v
M
v
O
v
QS
3 / ˝
3 / ˝ 1¾˝
2˝
2˝, 2 / ˝
3 / ˝ 4 ½˝
3 / ˝
Front
Side
4 ½˝
French Leg
FRL
• Solid wood
• Painted hardwood supplied for EverCore™
and Laminate
• Painted or Stained hardwood supplied for
Woodgrain Laminate door styles
• Maple supplied for Birch, Hickory, Oak and
Quartersawn Oak
• Decorative feet or legs should support the
cabinet by way of the end panels,
not
the
cabinet floor
• Trimmable
A
v
B
v
C
v
E
v
H
v
L
LHG
v
LWG
v
M
v
O
v
QS
2˝
2˝
6˝
3 / ˝
2 / ˝
3 / ˝
2 ¼˝
Medium Squat Leg
MSL
• Solid wood
• Painted hardwood supplied for EverCore™
and Laminate
• Painted or Stained hardwood supplied for
Woodgrain Laminate door styles
• Oak supplied for Hickory
• Maple supplied for Birch
• Decorative feet or legs should support the
cabinet by way of the end panels,
not
the
cabinet floor
• Quartersawn door styles will be supplied in
plain sawn wood
• Trimmable
v
A
v
B
v
C
v
E
v
H
v
L
LHG
v
LWG
v
M
v
O
v
QS
2˝
2 / ˝
4 ½˝
3 ½˝
Tulip Leg
TLL
• Solid wood
• Painted hardwood supplied for EverCore™
and Laminate
• Painted or Stained hardwood supplied for
Woodgrain Laminate door styles
• Oak supplied for Hickory
• Maple supplied for Birch
• Decorative feet or legs should support the
cabinet by way of the end panels,
not
the
cabinet floor
• Quartersawn door styles will be supplied in
plain sawn wood
• Trimmable
v
A
v
B
v
C
v
E
v
H
v
L
LHG
v
LWG
v
M
v
O
v
QS
1 / ˝
3 / ˝
3 / ˝
4 ½˝
Decorative Island End Cap Legs
Classic Leg
CIECL434
Plain Square Post
PIECL434
Roman Spindle
RIECL434
Sterling Leg
STIECL434
Tapered Leg
TIECL434
• Solid wood
• Painted hardwood supplied for EverCore™
and Laminate
• Painted hardwood supplied for Woodgrain
Laminate door styles; only available in white
• Dimension matches the legs used on Island
End Cap cabinets (IEC)
• Decorative feet or legs should support the
cabinet by way of the end panels,
not
the
cabinet floor
• Trimmable
v
A
B
v
C
v
E
H
v
L
LHG
I
LWG
v
M
O
QS
C
R P
T
13 ½˝
34 ½˝
3¾˝
S
