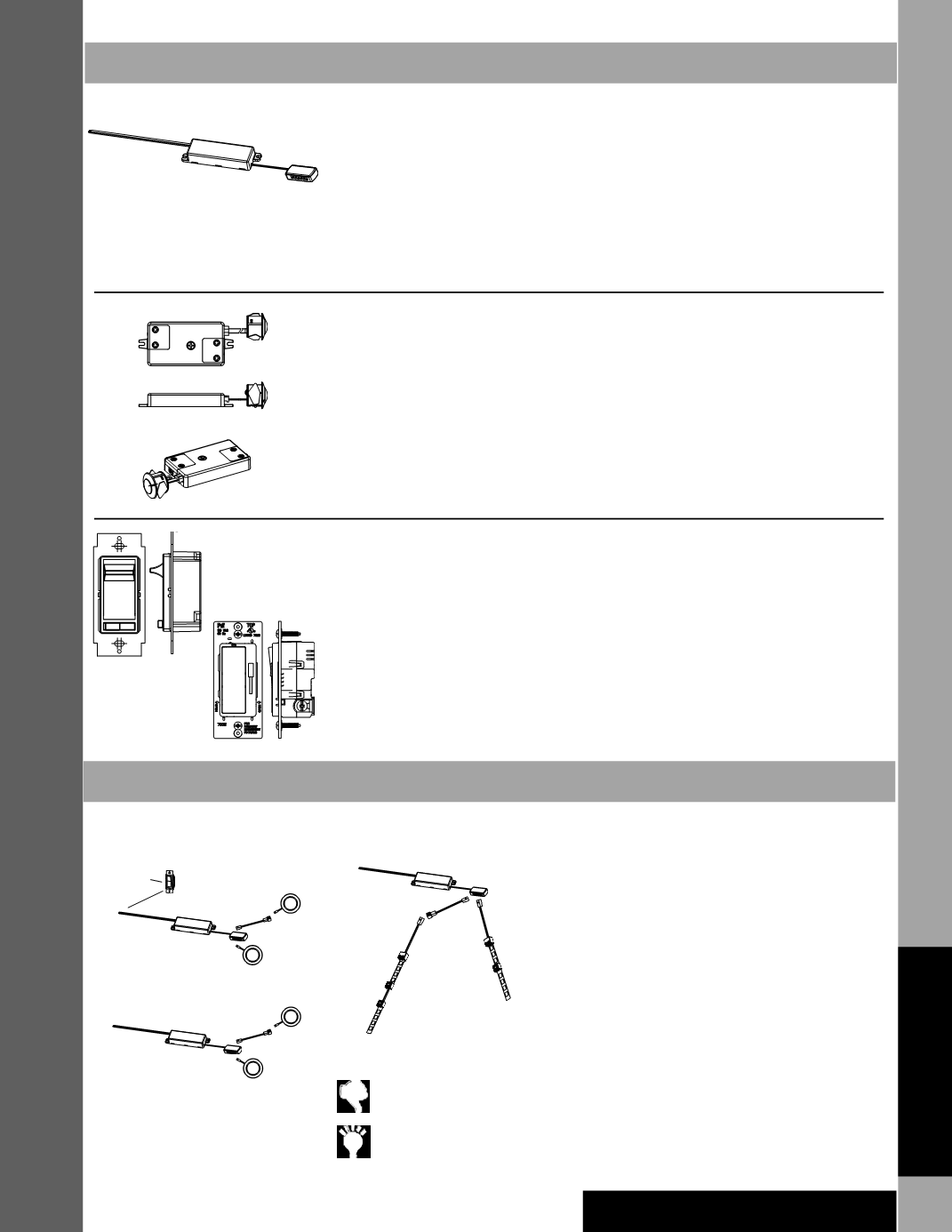

LED Lighting

Decorative Enhancements

DayBreak Dimmable Driver - LED Power Supply

18 Watts

LED•DDR18

72 Watts

LED•DDR72

• 24V DC; 18W, 12 port connector block can be used for

up to 18 total watts of lighting

• 24V DC; 72W, 12 port connector block can be used for

up to 72 total watts of lighting

• Requires electrical outlet or junction box to connect to

power

• Converts 120V AC power to 24V DC power

• Can be used with most standard TRIAC wall dimmers

(ex. Lutron DVWCL-153PDH). Verify compatibility with

switch manufacturer’s specifications

• Comes with a 5’ long power cord and optional plug

head

SPT-2VW-1

Motion Sensor On/Off Switch - LED Switches

LED•MSS

• Medium range motion sensor ideal for interior cabinet

installation. Lights are activated by motion of opening

cabinet doors.

• Includes 12-port connector block

• One switch can be used to activate lighting for single or

double door cabinets

• Adjustable timer controls the length of time lights

remain on; up to 6 minutes

• 5’ long cable between sensor and controller

• The sensor eye

must

be recess mounted and requires a

20mm hole

Low Voltage LED Wall Dimmer Switch

LED•WDS•3W

LED•WDS•SP

• White, wall dimmer switch for single gang box

• Functions as both an on/off and dimmer switch

• Use LED•WDS•3W for rooms with multiple entrances

and switches

• Use LED•WDS•SP for rooms with a single entrance and

switch

• Faceplate

not

included. Purchase seperately to match

decor

•3W

•SP

• KraftMaid® products are designed to give you the ultimate

versatility in designing lighting solutions. The following

examples show the use of puck lighting and strip lighting,

along with the various accessories:

• The best power source for LED Lighting is called a driver.

The patented technology in your driver allows it to be used

as both a dimmable driver and a regular driver. The driver

is powered by standard AC line voltage of 120VAC. The

driver can be plugged into an outlet by using the plug head

included or can be hardwired into a junction box

• Puck lights attach to the driver in a “hub and spoke”

configuration. The driver has a 12-port connector block.

Each light comes equipped with a 98” power lead. Should

you require a longer power lead, use a power extension

cord

• Each run of strip lights attach to the driver in a “hub and

spoke” configuration. The driver has a 12-port connector

block. Each series of strips require the use of one power

cable. Should you require a longer power lead, use a power

extension cable.

• Connectors allow you to run more than one segment

of LED strip from a single power cable. The End to End

Connector joins smaller pieces of LED tape together to

form longer segments. For example, if you are installing

toe kick lighting, but need to skip past the refrigerator, use

the Connector Kit for Custom Wire Length. After wiring

around the refrigerator, you can continue your lighting on

the other side.

SPT-2VW-1

AC Power In

Driver

LED Puck

Extension

Cable

Wall Dimmer Switch

Puck Lighting with Dimming

Puck Lighting without Dimming

SPT-2VW-1

AC Power In

Driver

LED Puck

Extension

Cable

SPT-2VW-1

AC Power In

Driver

Extension Cable

Connector Block

Power Cable

End to End

Connector

Connector Kit for

Custom Wire Length

Strip Lighting without Dimming

LED Power Supply

LED Connection Options

not

attach more lights than the

driver has wattage to support

For instructional information on

designing and installing lighting, visit

www.kminfo.com

. The Lighting Wizard

is located under the Training tab.
