Vanity Cabinet Accessories
Vanity Cabinets

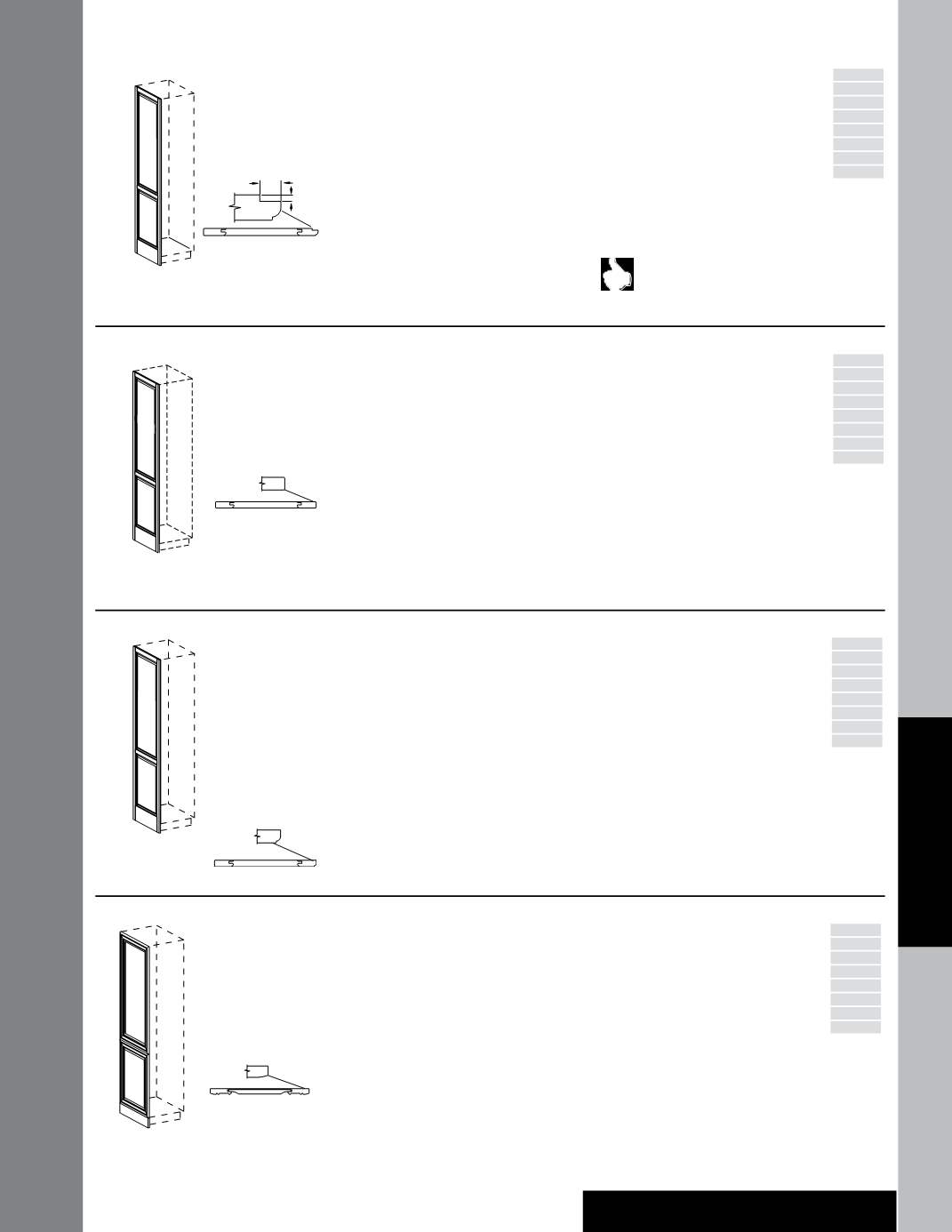

Matching Tall Vanity End Panel
Specify R or L
MTEP1288 R or L
MTEP1888 R or L
MTEP2188 R or L
• 3/4” thick panel with matching door edge
profile on front edge only
• Matching panel may not align with the
cabinet doors
• Left shown
• Field installation only
•
Not
available in Laminate or High-Gloss
Laminate door styles
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in Sturbridge Oak Square
•
Not
available in slab door styles
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End
Panels the reveal will differ from the
cabinet door height reveal. Matching End
Panels cover the entire side of the
cabinet. See drawing for exact measurements
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
11 / ˝
17 / ˝ 20 / ˝
88 ½˝
Standard edge detail—
fits flush against
1/2˝ end panel and
behind face frame
¾˝
/ ˝
Matching Tall Vanity End Panel–Square Edges
MTEP1288 •S
MTEP1888 •S
MTEP2188 •S
• 3/4˝ thick panel with square edge front and
back
• Reversible, may be used on either right or left
end
• No frame recess dado
• Matching panel may not align with the
cabinet doors
• Field installation only
•
Not
available in High-Gloss Laminate, Laminate or
Woodgrain Laminate door styles
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in slab door styles
•
Not
available in Sturbridge Oak Square
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
11
7
/
8
˝
17
7
/
8
˝
20
7
/
8
˝
Will not fit flush
against 1/2˝ end panel,
a 3/16˝ shim
is recommended
88 ½˝
Furniture Matching Tall Vanity End Panel
Specify R or L
FMTEP1288 R or L
FMTEP1888 R or L
FMTEP2188 R or L
• 3/4” thick panel with matching door edge
profile on front edge only
• Matching panel may not align with the
cabinet doors
• Left shown
• Field installation only
• For use with Furniture Plywood Ends (FPEB)—flush
ends
•
Not
available in High-Gloss Laminate, Laminate or
Woodgrain Laminate door styles
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in Sturbridge Oak Square
•
Not
available in slab door styles
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
VTK
88 ½˝
11 / ˝
17 / ˝ 20 / ˝
Matching Tall Vanity End Panel–Mitered
M•MTEP1288
M•MTEP1888
M•MTEP2188
• 3/4˝ thick panel with matching door edge
profile on four sides
• Matching panel may not align with the
cabinet doors
• Reversible, may be used on either right or left
end
• Available in mitered door styles only
• Field installation only
• Top, bottom and toe kick shipped separately
PE
APC
APFC
FPEB
MI
RD
WR
VTK
Will not fit flush
against 1/2˝ end panel,
a 3/16˝ shim
is recommended
88 ½˝
11 / ˝
17 / ˝ 20 / ˝
