K18
Roll-out Trays
Panels-Shelving-Trays

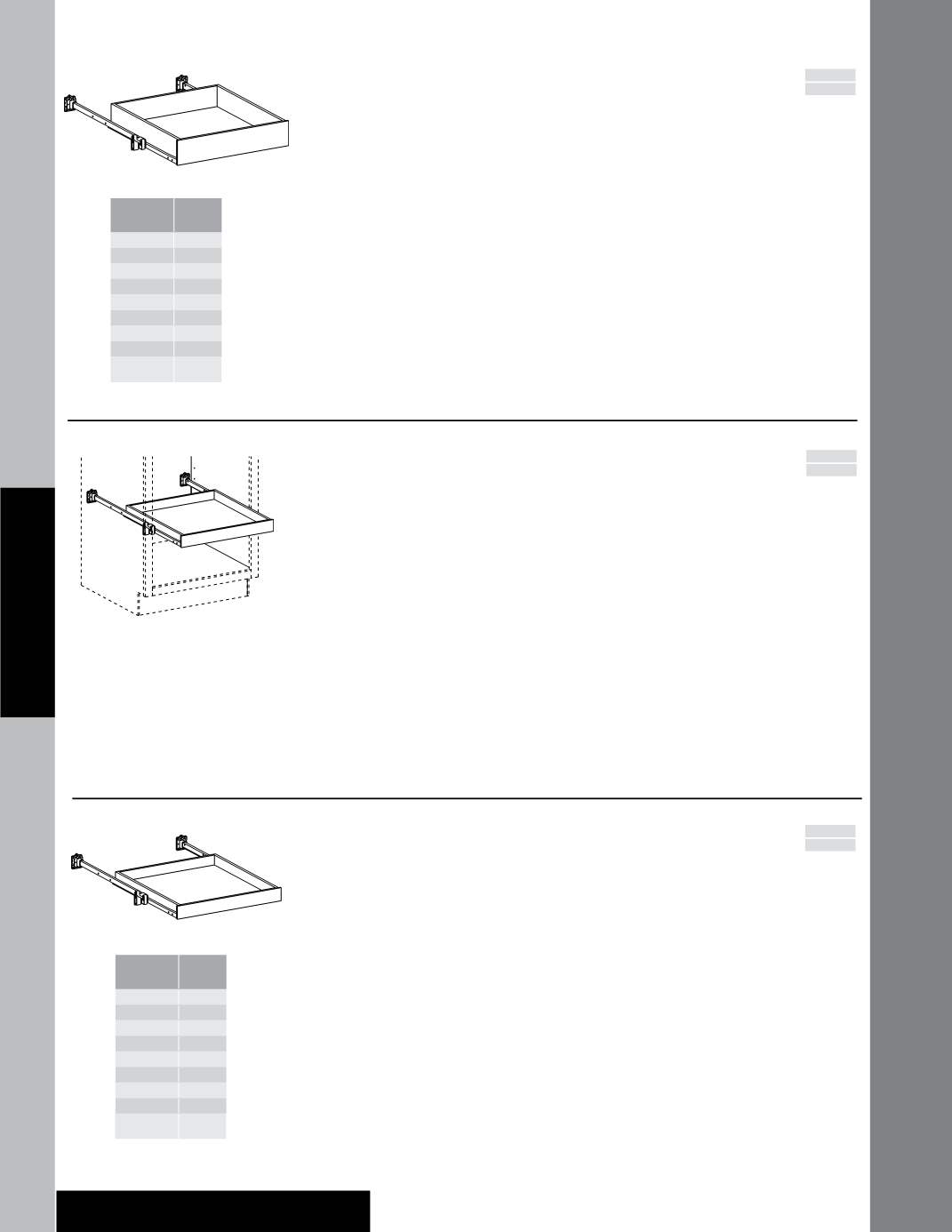

Deep Roll-out Trays Field Installation
DROT12•24 •21 •18
DROT15•24 •21 •18
DROT16•24 •21 •18
DROT18•24 •21 •18
DROT19•24 •21 •18
DROT21•24 •21 •18
DROT22•24 •21 •18
DROT24•24 •21 •18
DROT27•24 •21 •18
DROT30•24 •21 •18
DROT33•24 •21 •18
DROT36•24 •21 •18
• 4” deep tray has 1/2” thick solid wood sides and 3/16”
Viraguard laminated plywood bottom
• 18”, 21” and 24” depths only
• Tray location is adjustable
• Mounting hardware and runners included
• Order Example:
For U182484—order DROT18•24
For B15L—order DROT15•24
For VB1518R—order DROT15•18
For VB15L—order DROT15•21
APC
MI
Deep Roll-out Tray
Field Installation Chart
Cabinet
(Max)
#DROTs
Base
Base•FH
Base•FH•40
Tall
Desk
Desk•FH
Vanity
Vanity•FH
VLC 88 ½˝ H 6 (Top)
4 (Bottom)
3
4
5
10
2
3
3
4
Roll-out Trays Factory Installed
i
1FWROT
i
2FWROT
i
3FWROT
i
4FWROT
i
5FWROT
i
6FWROT
1ROT
2ROT
3ROT
4ROT
5ROT
6ROT
• 2 1/4” deep tray has 1/2” thick solid wood sides
and 3/16” Viraguard laminated plywood
bottom
• 18”, 21” and 24” depths only
• Shelves are eliminated when this option is selected
• Tray location is adjustable
• Order Roll-out Trays (ROT) for cabinets that do
not
have center stiles; includes cabinets with BUTT doors.
Order Example: B36BUTT-2ROT; B24L-2ROT
• Roll-out Trays (ROT) can also be ordered in cabinets
with center stiles. The center stile will remain and trays
will be installed in the right and left openings.
Order Example: B36-4ROT (2 trays right and 2 trays
left)
• A maximum of two different Roll-out Tray (ROT) types
can be factory installed in a single cabinet.
Order Example: B30BUTT-1ROT-1DXROT
• Full-width trays
not
available in 39”, 42”, 45” or 48”
• Trays are
not
evenly spaced
• Specify quantity
• Order Example:
Installed—U182484L-3ROT
Installed—B15L-3ROT
Installed—B36-3FWROT
APC
MI
i
There is no need to order Mullion Strip
Base (MSB). When Full-width Roll-out Trays
(FWROT) are ordered for 30˝, 33˝ or 36˝ wide
cabinets, the double doors will have a mullion
attached to the left door. Full-width Roll-out
Trays (FWROT)
are
not available factory
installed on Utility cabinets (U) wider
than 24˝
Roll-out Trays Field Installation
ROT12•24 •21 •18
ROT15•24 •21 •18
ROT16•24 •21 •18
ROT18•24 •21 •18
ROT19•24 •21 •18
ROT21•24 •21 •18
ROT22•24 •21 •18
ROT24•24 •21 •18
ROT27•24 •21 •18
ROT30•24 •21 •18
ROT33•24 •21 •18
ROT36•24 •21 •18
• 2 1/4” deep tray has 1/2” thick solid wood sides
and 3/16” Viraguard laminated plywood bottom
• 18”, 21” and 24” depths only
• Tray location is adjustable
• Mounting hardware and runners included
• Order Example:
For U182484—order ROT18•24
For B15L—order ROT15•24
For VB15L—order ROT15•21
APC
MI
Roll-out Tray
Field Installation Chart
Cabinet
(Max)
#ROTs
Base
Base•FH
Base•FH•40
Tall
Desk
Desk•FH
Vanity
Vanity•FH
VLC 88 ½˝ H 6 (Top)
7 (Bottom)
5
7
7
10
3
4
5
7
