Roll-out Trays
Panels-Shelving-Trays

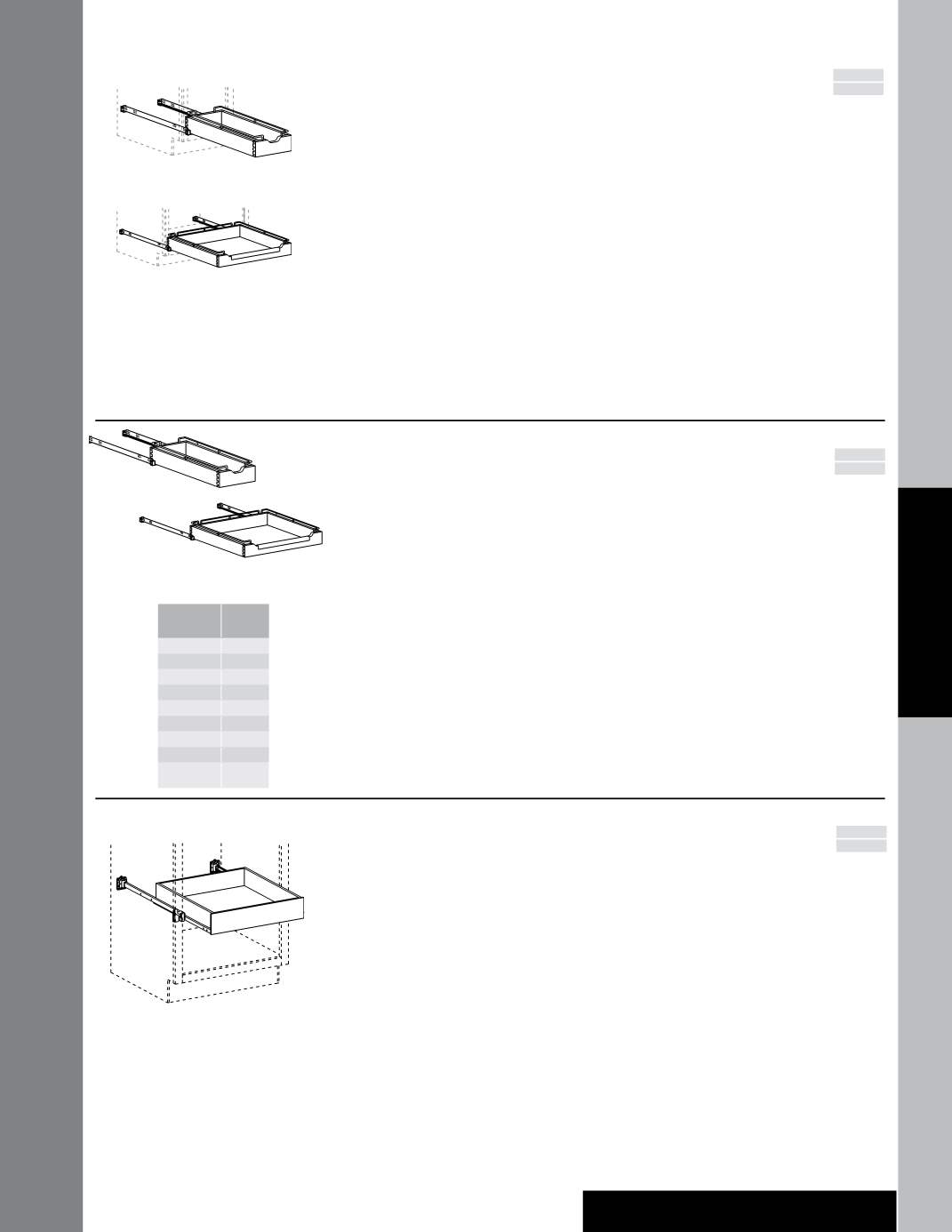

Chrome Deluxe Roll-out Tray Factory Installed
i
1SDXFWROT
i
2SDXFWROT
i
3SDXFWROT
i
4SDXFWROT
i
5SDXFWROT
i
6SDXFWROT
s
1SDXROT
s
2SDXROT
s
3SDXROT
s
4SDXROT
s
5SDXROT
s
6SDXROT
• Roll-out Trays (ROT) are 5 1/2” deep, 3/4” solid wood
dovetailed sides with 1 1/2” chrome rails on sides and
back, 3/16” plywood bottom, notched front with chrome
pull and full extension runners with integrated buffer
• 18”, 21” and 24” depths only
• Shelves are eliminated when this option is selected
• Tray location is adjustable
• Order Chrome Deluxe Roll-out (SDXROT) for cabinets
that do
not
have center stiles; includes cabinets
with BUTT doors.
Order Example: B36BUTT-2SDXROT; B24L-2SDXROT
• A maximum of two different Roll-out Tray (ROT) types
can be factory installed in a single cabinet.
Order Example: B30BUTT-1ROT-1DXROT
• Full-width trays
not
available in 39”, 42”, 45” or 48”
• Trays are
not
evenly spaced
• Mounting hardware and runners included
• Front chrome pullout is
not
included on trays for 12” wide
cabinets
• Order Example:
Installed—U182484L-3SDXROT
Installed—B15L-2SDXROT
Installed—B36-2SDXFWROT
APC
MI
12" Wide Units
15" - 36" Wide Units
i
There is no need to order Mullion Strip
Base (MSB). When Full-width Roll-out Trays
(FWROT) are ordered for 30˝, 33˝ or 36˝ wide
cabinets, the double doors will have a mullion
attached to the left door. Full-width Roll-out
Trays (FWROT)
are
not available factory
installed on Utility cabinets (U) wider
than 24˝
s
Not
available on double door cabinets with a
center stile
Chrome Deluxe Roll-out Tray Field Installation
SDXROT12•24•21•18
SDXROT15•24•21•18
SDXROT18•24•21•18
SDXROT21•24•21•18
SDXROT24•24•21•18
SDXROT27•24•21•18
SDXROT30•24•21•18
SDXROT33•24•21•18
SDXROT36•24•21•18
• Roll-out Trays (ROT) are 5 1/2” deep, 3/4” solid wood
dovetailed sides with 1 1/2” chrome rails on sides
and back, 3/16” plywood bottom, notched front with
chrome pull and full extension runners with integrated
buffer
• 18”, 21” and 24” depths only
• Tray location is adjustable
• Mounting hardware and runners included
• Front chrome pullout is
not
included on trays for 12”
wide cabinets
• Order Example:
Installed—U182484L-3SDXROT
Installed—B15L-2SDXROT
Installed—B36-2SDXFWROT
APC
MI
15" - 36" Wide Units
12" Wide Units
Chrome Deluxe Roll-out Tray
Field Installation Chart
Cabinet
(Max)
#SDXROTs
Base
Base•FH
Base•FH•40
Tall
Desk
Desk•FH
Vanity
Vanity•FH
VLC 88 ½˝ H 6 (Top)
4 (Bottom)
3
4
5
10
2
3
3
4
Deep Roll-out Trays Factory Installed
i
1DFWROT
i
2DFWROT
i
3DFWROT
i
4DFWROT
i
5DFWROT
i
6DFWROT
1DROT
2DROT
3DROT
4DROT
5DROT
6DROT
• 4” deep tray has 1/2” thick solid wood sides and 3/16”
Viraguard laminated plywood bottom
• 18”, 21” and 24” depths only
• Order Deep Roll-out Trays (DROT) for
cabinets that do
not
have center stiles; includes
cabinets with BUTT doors.
Order Example: B36BUTT-2DROT; B24L-2DROT
• Deep Roll-out Trays (DROT) can also be ordered in
cabinets with center stiles. The center stile will remain
and trays will be installed in the right and left openings.
Order Example: B36-4DROT (2 trays right and 2 trays
left)
• A maximum of two different Roll-out Tray (ROT) types
can be factory installed in a single cabinet.
Order Example: B30BUTT-1ROT-1DXROT
• Full-width trays
not
available in 39”, 42”, 45” or 48”
• Shelves are eliminated when this option is selected
• Specify quantity
• Tray location is adjustable
• Trays are installed from bottom to top and will
not
be
evenly spaced when multiples are ordered
• Order Example:
Installed—U182484L-3DROT
Installed—B15L-2DROT
Installed—B36-2DFWROT
APC
MI
i
There is no need to order Mullion Strip
Base (MSB). When Full-width Roll-out Trays
(FWROT) are ordered for 30˝, 33˝ or 36˝ wide
cabinets, the double doors will have a mullion
attached to the left door. Full-width Roll-out
Trays (FWROT)
are
not available factory
installed on Utility cabinets (U) wider
than 24˝
