G13
Vanity Cabinets
Vanity Cabinets

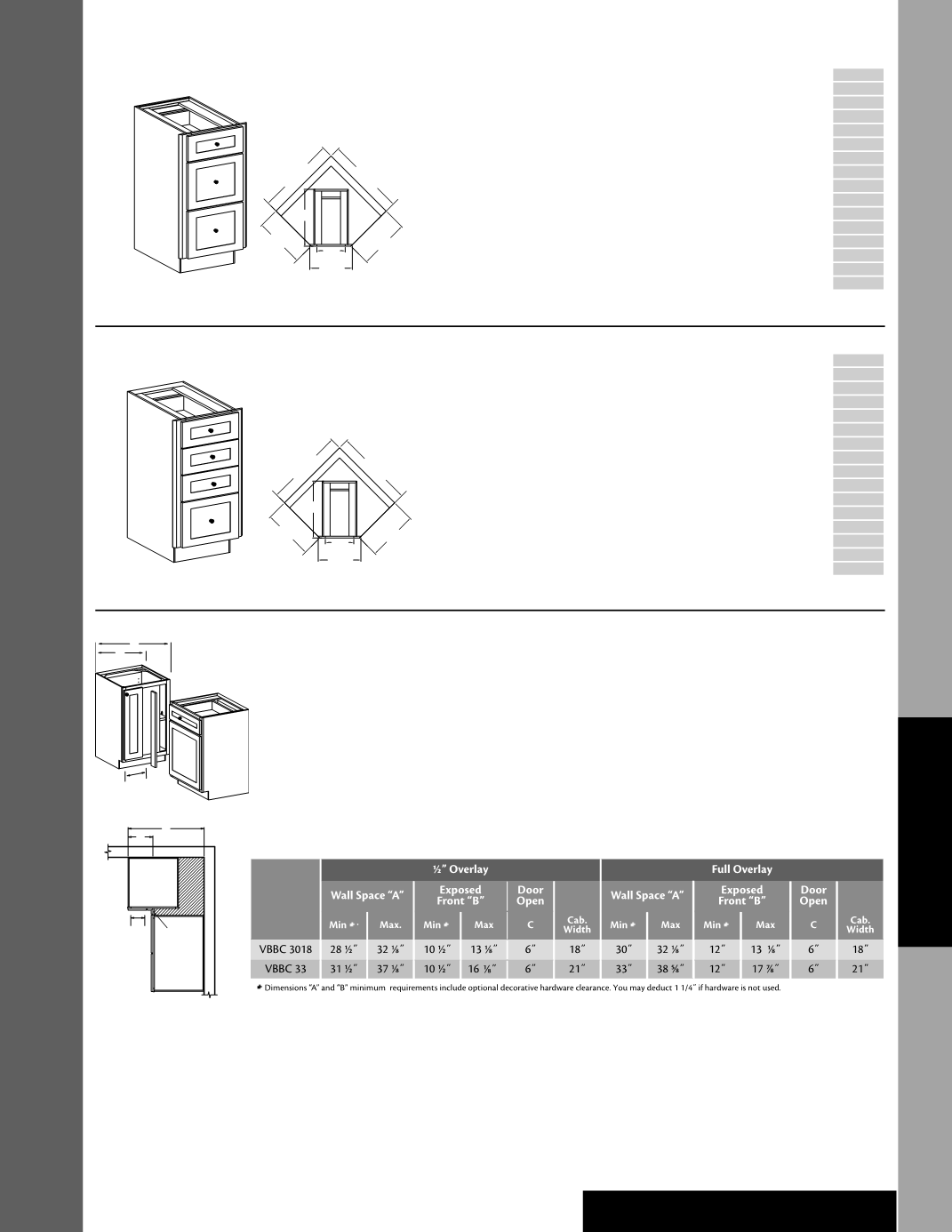

Vanity Drawer Base Angle Three Drawer
VDA332134 •3
• Angled frame designed for diagonal corner
installation only
• Scoop Top Drawer (STDW) option available
l
PE
l
APC
l
APFC
l
FPEB
MI
DE
OE
RD
ID
IF
l
TWR
WR
XS
GD
RTK
l
VTK
Vanity Drawer Base Angle Four Drawer
VDA332134 •4
• Angled frame designed for diagonal corner
installation only
• Scoop Top Drawer (STDW) option available
l
PE
l
APC
l
APFC
l
FPEB
MI
DE
OE
RD
ID
IF
l
TWR
WR
XS
GD
RTK
l
VTK
Vanity Base Blind Corner Cabinet Information
• R or L indicates blind
• All vanity blind corner cabinets
must
be pulled. Consult chart or pull dimensions and minimum
wall space requirements
• Door hinged on same side as blind on single door cabinets
• A 3” vanity filler is included with each VBBC cabinet ordered, shipped separately. Vanity cabinet
adjacent to VBBC may be ordered with an extended stile in lieu of installing supplied filler
• Overlay Panel for Wall Blind Corner Cabinet (OPWBC) is recommended for full overlay door
styles and
must
be ordered separately; see Base Accessories Section of this book
• Right blind shown
A
B
C
A
B
C
VBBC 30-33
3˝ Filler
Vanity
Cabinet
Cabinet
