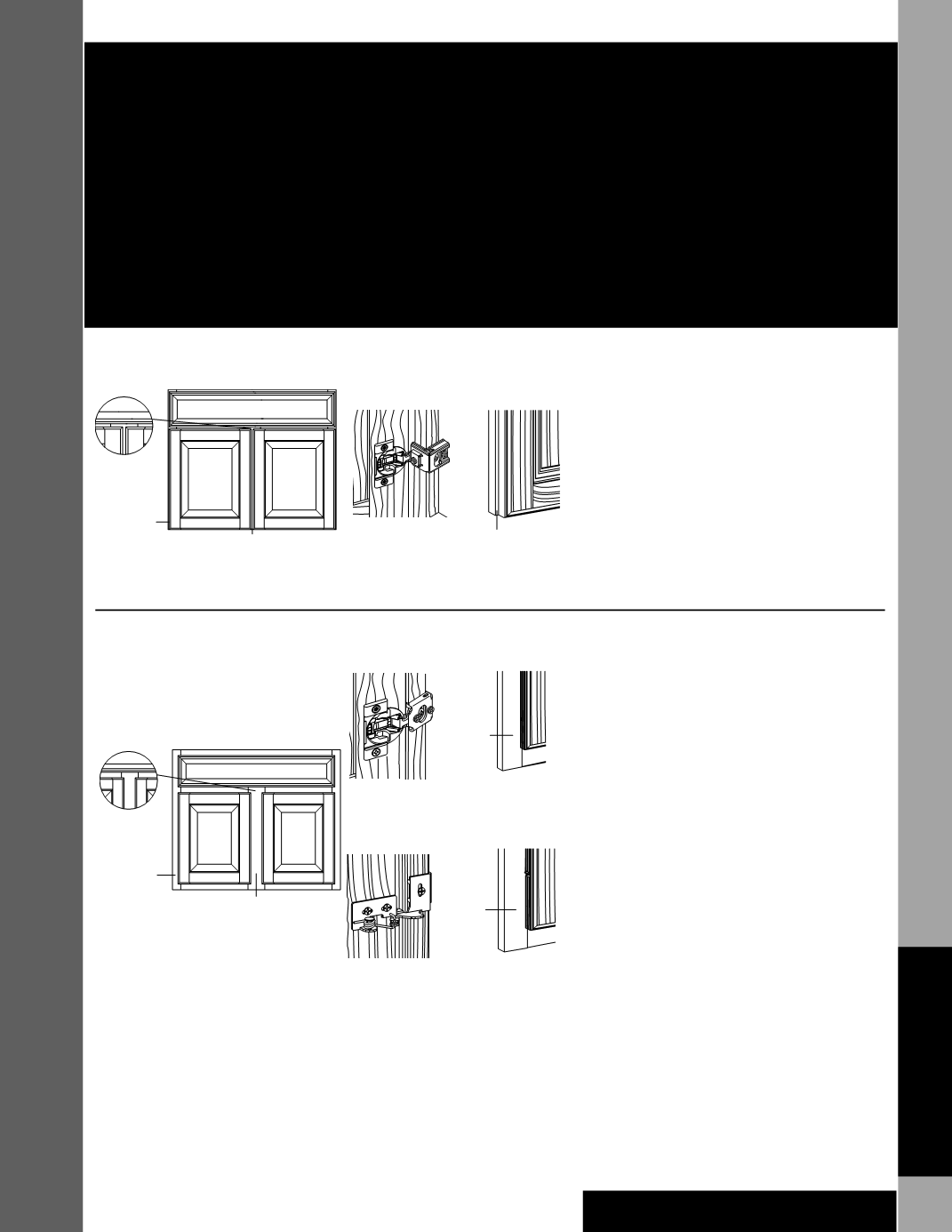

Full Overlay–Concealed Hinges
• Full Overlay doors leave 3/8˝ of the cabinet’s face frame
exposed between doors
• Whisper Touch™ hinge features an integrated mechanism
that closes doors softly and quietly and is adjustable six
ways for perfect alignment
• The reveals shown here may vary slightly on some cabinets
due to actual door/drawer front sizes used. Refer to the
replacement door and drawer section of this book for actual
door/drawer sizes for specific cabinets.
•
Note:
Door styles with square outside edges (including
aluminum frame decorative doors)
cannot
be opened
simultaneously on adjacent cabinets because the doors will
rub together. This is a common occurrence due to the sizing
of full overlay doors
Closed
reveal
/ ˝
reveal
/ ˝
Open
reveal
/ ˝
1/2˝ Overlay–Concealed or Knife Hinge
• 1/2˝ overlay doors leave 2˝ of the cabinet’s face frame
exposed between doors
• Whisper Touch™ hinge features an integrated mechanism
that closes doors softly and quietly and is adjustable six
ways for perfect alignment
• Knife hinge capable of opening 180º
• Knife hinges are
not
available on any full overlay door styles
• A knife hinge option is available on 1/2˝ overlay door styles
(see list below)
• Knife Hinge is available in the following door styles:
Geneva Cherry Roman–Half, Geneva Cherry Square–Half,
Northwood Roman, Northwood Square, Stratford Roman
and Stratford Square
• The reveals shown here may vary slightly on some cabinets
due to actual door/drawer front sizes used. Refer to the
replacement door and drawer section of this book for actual
door/drawer sizes for specific cabinets.
1˝
Closed
Concealed Hinge
Knife Hinge
reveal
1˝
reveal
2˝
reveal
Open
1˝
Closed
reveal
Open
