Vanity Cabinets
G100
Vanity Cabinet Accessories

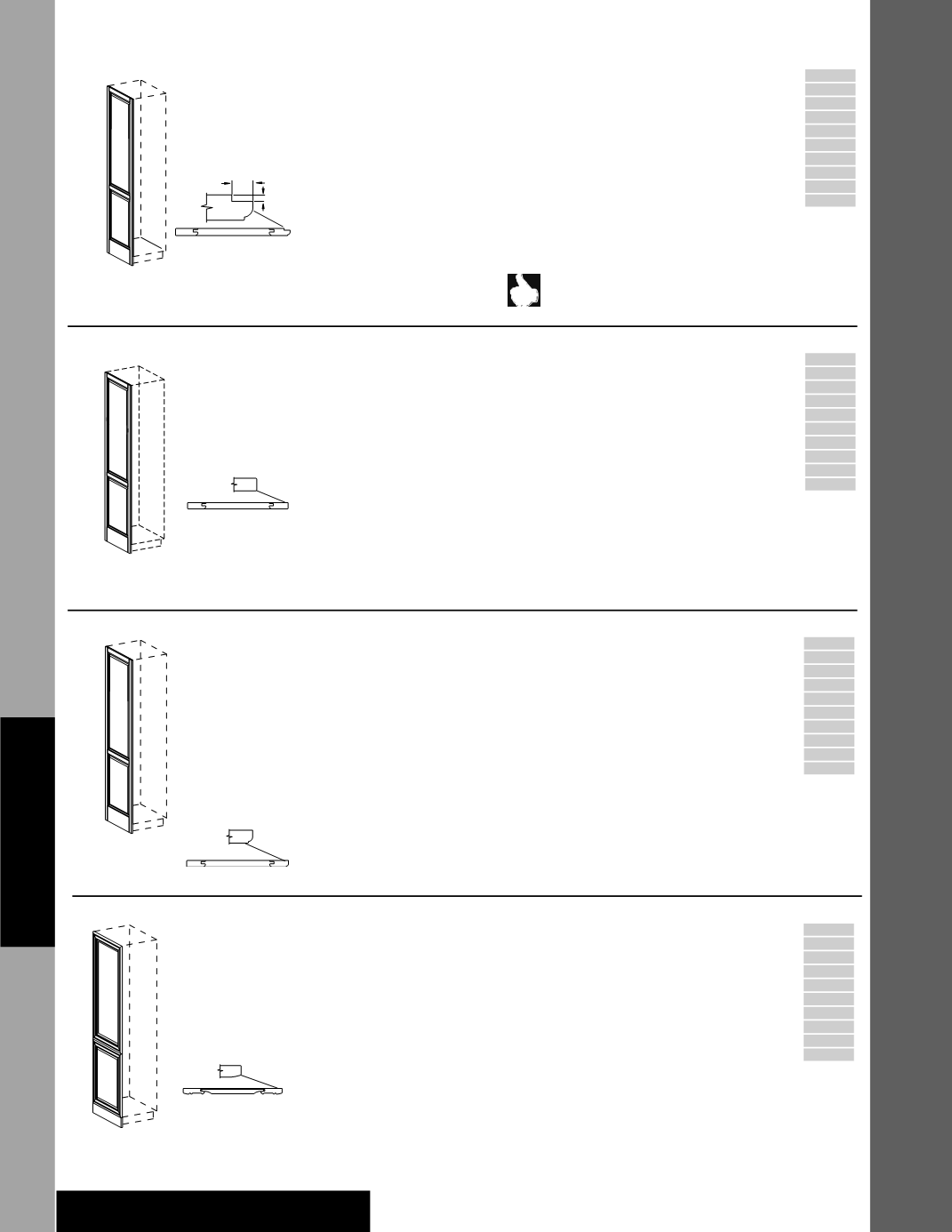

Matching Tall Vanity End Panel
MTEP1288 R or L
MTEP1888 R or L
MTEP2188 R or L
• 3/4” thick panel with matching door edge profile on front
edge only
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Left shown
• Field installation only
•
Not
available in Laminate door styles
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in Morristown
•
Not
available in slab door styles
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End Panels the reveal will
differ from the cabinet door height reveal. Matching End
Panels cover the entire side of the cabinet. See drawing for
exact measurements
PE
APC
APFC
FPEB
MI
CW
RD
CH
I
WR
VTK
11 / ˝
17 / ˝ 20 / ˝
88 ½˝
Standard edge detail—
fits flush against
1/2˝ end panel and
behind face frame
¾˝
/ ˝
Matching Tall Vanity End Panel–Square Edges
MTEP1288 •S
MTEP1888 •S
MTEP2188 •S
• 3/4˝ thick panel with square edge front and back
• Reversible, may be used on either right or left end
• No frame recess dado
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Field installation only
•
Not
available in Laminate door styles
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in slab door styles
•
Not
available in Morristown
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
CW
RD
CH
I
WR
VTK
11
7
/
8
˝
17
7
/
8
˝
20
7
/
8
˝
Will not fit flush
against 1/2˝ end panel,
a 3/16˝ shim
is recommended
88 ½˝
Furniture Matching Tall Vanity End Panel
FMTEP1288 R or L
FMTEP1888 R or L
FMTEP2188 R or L
• 3/4” thick panel with matching door edge profile on front
edge only
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Left shown
• Field installation only
• For use with Furniture Plywood Ends (FPEB)—flush ends
•
Not
available in Laminate door styles
•
Not
available in mitered door styles; use End Panel–Mitered
•
Not
available in Morristown
•
Not
available in slab door styles
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
CW
RD
CH
I
WR
VTK
88 ½˝
11 / ˝
17 / ˝ 20 / ˝
Matching Tall Vanity End Panel–Mitered
M•MTEP1288
M•MTEP1888
M•MTEP2188
• 3/4˝ thick panel with matching door edge profile on four
sides
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Reversible, may be used on either right or left end
• Available in mitered door styles only
• Field installation only
• Top, bottom and toe kick shipped separately
PE
APC
APFC
FPEB
MI
CW
RD
CH
WR
VTK
Will not fit flush
against 1/2˝ end panel,
a 3/16˝ shim
is recommended
88 ½˝
11 / ˝
17 / ˝ 20 / ˝
