List Service Profiles / Get Information for a Specific Service Profile
The response for both APIs is identical.
Display a list of all service profiles by running the following API.

method
URL
GET
https://zcm_ip:port/v1/serviceprofiles

Display information about a specific service profile by its ID by running the following API.

method
URL
GET
https://zcm_ip:port/v1/serviceprofiles/{serviceprofileidentifier}

Where:

zcm_ip
The IP address of the Zerto Cloud Manager where the API is run.
port
The port to access the Zerto Cloud Manager. The default port is 9989.
serviceprofileidentifie
The identifier of the service profile to use for the VPG.

Request
Response
Request
The request body is empty.
Response
The following is an example response Json body of a list of all service profiles and, without the array statement, of a specific service profile.

[{
  "BackupPolicy": {
    "RetentionPeriod": "",
    "SchedulePeriodType": "String content",
    "ScheduleDayOfWeek": "String content"
  },
  "DRPolicy": {
    "DefaultJournalHistory": "1 day",
    "JournalSizeHardLimit": "75%",
    "JournalSizeWarningThreshold": "50%",
    "TargetRpoAlert": "5 minutes",
    "TestFrequencyReminder": "None"
  },
  "Description": "System Service Profile",
  "IsDefaultServiceProfile": true,
  "Link" {
    "href": "https://172.20.184.51:9989/v1/serviceprofiles/18f89b73-e6dc-4430-9f47-e9d55dc204b",
    "identifier": "18f89b73-e6dc-4430-9f47-e9d55dc204be",
    "rel": null,
    "type": "ServiceProfileApi"
  "RecoveryPolicy": "Disaster Recovery",
  "ServiceProfileIdentifier": "b4438eb2-b7f0-41d4-ad21-14d881be566c",
  "ServiceProfileName": "System Service Profile"
}]

rESPONSe
type
Description
BackupPolicy

Details about the offsite backup policy.
RetentionPeriod
String

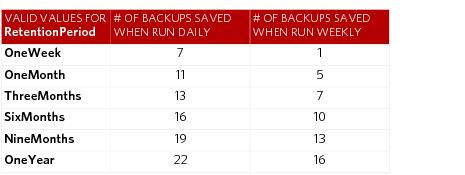

The length of time to keep offsite backups, up to a maximum of 12 months. Over time, Zerto reduces the number of stored offsite backups to save space.
The SchedulerPeriod parameter defines whether backups are created daily or weekly.
For an explanation of how Zerto reduces the number of offsite backups, see the Zerto Cloud Manager Administration Guide.
SchedulePeriodType
String
The type of scheduled period in which offsite backup will run.
Daily – The offsite backups will run every day.
Weekly – The offsite backups will run once a week.
ScheduleDayOfWeek
String
The day of the week when the backup is performed.
DRPolicy

Policy configuration.
TargetRpoAlert
String
The maximum requested time between each automatic checkpoint being written to the journal before an alert is issued.
The value can be between one minute and 12 hours.
DefaultJournalHistory
String
The default time that all write commands are saved in the journal. The value is between one hour and 30 days.
JournalSizeHardLimit
String
The maximum journal size. The value is between 1 and 100 percent. 0 means unlimited.
JournalSizeWarningThreshold
String
The journal size that generates a warning that the journal is nearing its hard limit. The value is between 1 and 100 percent. 0 means unlimited.
TestFrequencyReminder
String
The time recommended between testing the integrity of the VPG. A
warning is issued if a test is not done within this time frame.
Possible values are between 1 and 12 months. 0 means none.
Description
String
A description of the service profile.
IsDefaultServiceProfile
Boolean

Link

Link information for the URL.
href
String
URL for API call(s) to the service profile.
identifier
String
The unique internal identifier of the service profile.
rel
String
Next path level for the API relative to the current path.
type
String
API interface type.
RecoveryPolicy
String
The selected policy. Possible values:
Standard disaster recovery
Extended recovery (includes backup)
ServiceProfileIdentifier
String
The identifier of the service profile to use for the VPG.
ServiceProfileName
String
The name of the service profile.
