25,000lbs. Royal Forklift For Sale
- ROYAL T250B
- Year – 1987
- 94/85 STD
- LP
- PWRS.
- 60”FORKS
I’m a Rigger – Keep me upto date on available equipment!I’m a Manufacture – Click Here For Updates on Machines & Equipment
Author Archives: Dev
DoAll Bandsaw For Sale
DoAll Bandsaw For Sale C-305A
- CAPACITY, RECTANGULAR: 12” X 12”
- CAPACITY, ROUND: 12″
- RECOMMENDED SMALLEST DIAMETER: ½”
- SINGLE AUTOMATIC INDEX LENGTH: 16”
- MINIMUM BUTT END W/ AUTO FEED: 5”
- MINIMUM AUTO INDEX LENGTH: ¼”
- INFINITELY VARIABLE BAND SPEED DRIVE: 60-350 FPM
- MATERIAL PASS LINE HEIGHT: 30.5”
- BLADE: 1-1/4” X 144”
- WHEEL DIAMETER: 15”
- DRIVE MOTOR: 5 HP
- HYDRAULIC SYSTEM: 2 HP
- COOLANT PUMP: 1/10 HP
- FLOOR SPACE: 8’ X 6’6” X 5’
- NET WEIGHT: 4,200 LBS
- ELECTRICS: 220 VOLTS, 3 PH, 60 CYC
EQUIPPED WITH:
- OVERHEAD BUNDLING
- COOLANT SYSTEM

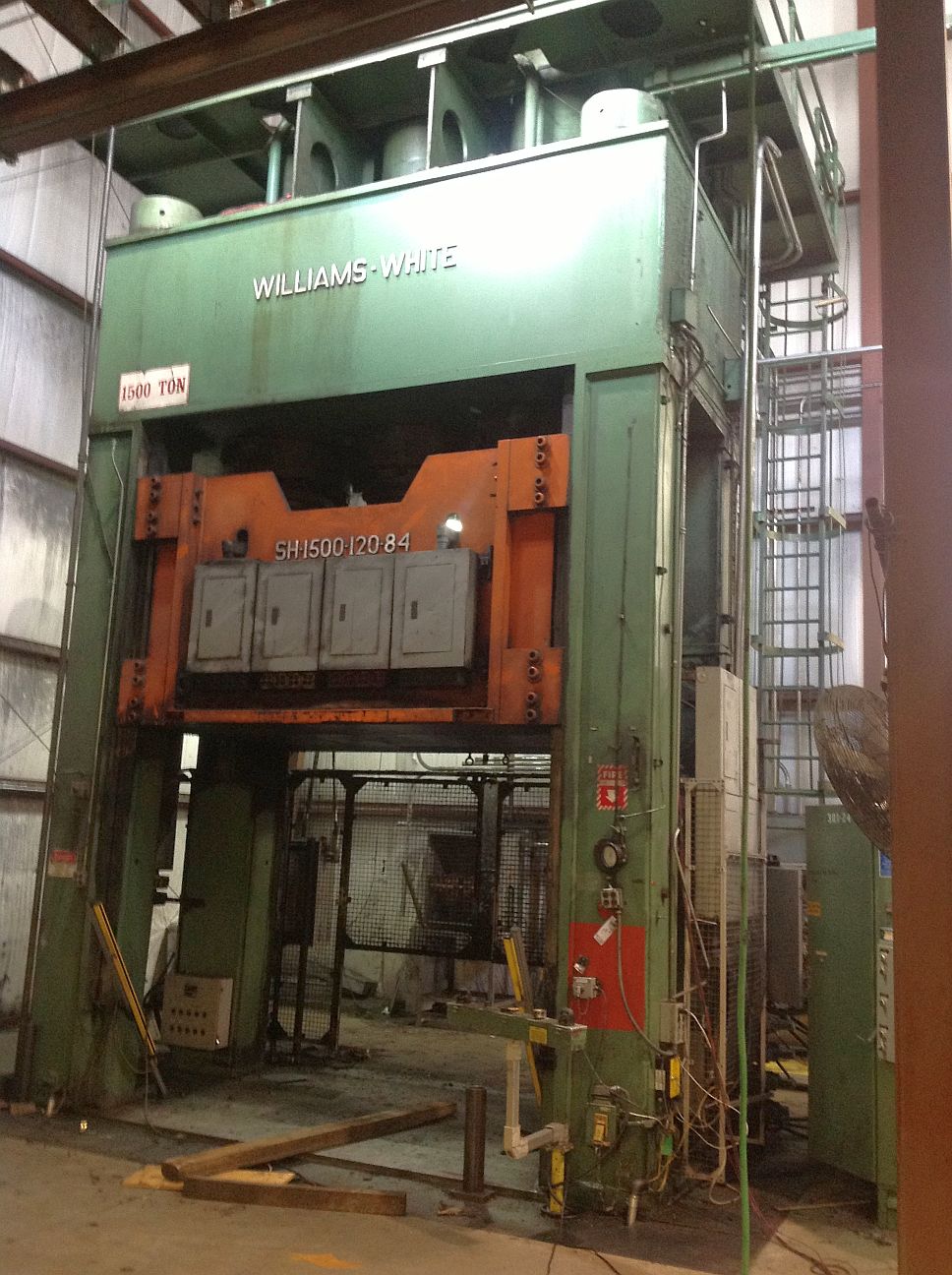

1,500 Ton Williams and White Gib Guided Hydraulic Press
1,500 Ton Williams and White Gib Guided Hydraulic Press
- Serial Number – C-4580
- Model Number – SH-1500-120-84
- Capacity – 1500 Tons
- Year – 1987
- Tonnage – 1500 Tons
- Distance Between Columns – 122″ x 84″
- Bed Area – 120″ x 84″
- Slide Area – 120″ x 84″
- Stroke – 84″
- Daylight – 109″
- Shut Height – 25″ over bed SDAU
- Overall Height – 30′ floor to top of hydraulic unit
- Electrical – 480 V/3 PH/60 HZ
- Overall Weight – 285,000 #
Operating Speeds:
- Fast Close – 925 IPM
- Intermediate – 9-90 IPM
- Pressing – 3-33 IPM
- Fast Close – (Pressing) – 4-45 IPM
- Stripping – 9-90 IPM
- Fast Open – 650 IPM
Equipped With:
- Gib Guided Construction
- Oil Reservoir
- Hydraulic Tie Rod Nuts
- Kicked Cylinder
- Main Cylinder

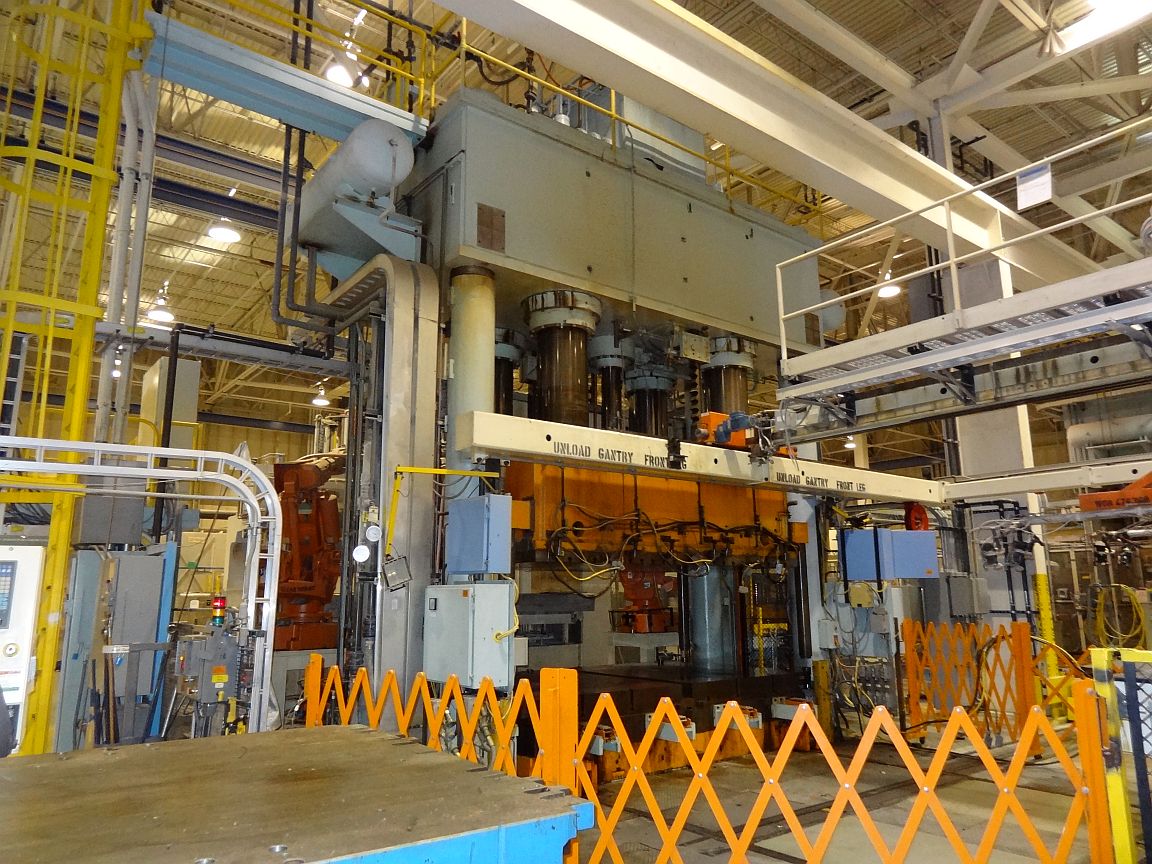

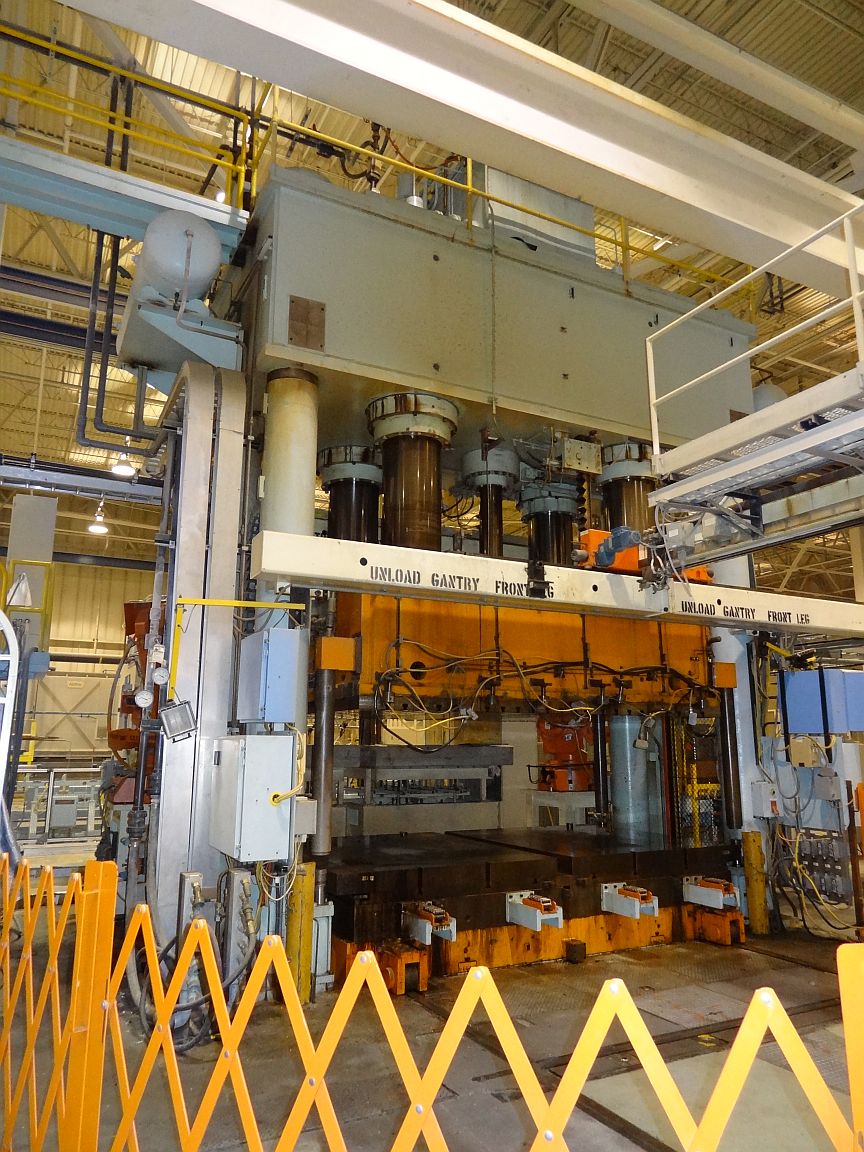

2000 Ton Williams and White Hydraulic Press – SOLD CALL FOR UPDATES
2000 Ton Williams and White Hydraulic Press
- Serial Number – C-4780
- Capacity – 2000 Tons
- Year – 1998
- Tonnage – 2000
- Net Lift @ Fast Open – 30 U.S. Tons
- Distance Between Columns – 177″ x 51″
- Bed Area – 151″ x 90″
- Slide Area – 169″ x 90″
- Stroke – 42″
- Daylight – 87″
- Shut Height – 45″ over bed SDAU
- Overall Height – 27′ 6″ floor to top of hydraulic tank
- Electrical – 480 V/3 PH/60 HZ
- Overall Weight – 636,000 #
Operating Speeds:
- Fast Close – 300 IPM
- Slow Close – 200 IPM
- Pressing – 1-9 IPM
- Stripping – 2-20 IPM
- Fast Open – 175 IPM
Equipped With:
- 4-Post Column Constructions
- Self Leveling Guided Ram
- Bed Cushions (2)
- -6″ Stroke
- -110″ x 56″ Bed Slide Pad
- -600 Ton Capacity
- 900 Gallon Oil Reservoir
Condition:
- Excellent
Price: POR
Alliant Vertical Mill
Alliant Vertical Mill
- Serial Number – 75016918
- Year – 1989
- Table Working Surface – 9″ x 42″
- Table Travel (Longitudinal X) – 30″
- Saddle Travel (Y) – 12″
- Quill Travel – 5″
- Knee Travel – 13″
- Ram Travel – 12″
- Throat Distance – 6 3/4″ – 18 3/4″
- Table Load – 750lbs.
- Spindle Speeds – 60 – 4,500 rpm
- Power Down Feed to Head (3) – 0.0015″, 0.003″, 0.006″
- Collet Capacity – 3/4″
- Spindle Taper – R-8
- Electrics – 3 HP/220-440/3/60
- Approximate Overall Dimensions – 62″ W x 63″ D x 83″ H
- Approximate Weight – 2,100lbs.
Machine is Equipped with:
- Anilam Mini Wizard 2-axis DRO
- Meehanite Casting
- Chrome Ways
- 1-Shot Lube System
- Servo Brand Type 140 X-Axis Power Feed
- Mitutoyo Digital Gage for Quill Position
- Set of R-8 Collets
- Coolant System
Price – Price on Request, FOB Truck in Grand Rapids, MI
75 Ton Dake H-Frame Press
75 Ton Dake H-Frame Press
- Serial Number – 1144672
- Year – 2011
- Capacity – 75 Tons
- Width Between Uprights – 44″
- Width Between Table Channels – 8 1/4″
- Minimum Ram to Table – 6″
- Maximum Ram to Table – 36″
- Ram Stroke – 4 1/2″
- Horizontal Workhead Travel – 29 5/8″
- Adjustment Screw Travel – 7″
- Approximate Overall Dimensions – 56″ LR x 36″ FB x 87″ H
- Approximate Weight – 1,300lbs.
Machine is Equipped with:
- Adjustable Table
- Rapid Ram Return
- Rapid Screw Position of Ram
- Moveable Workhead via Roller Bearings
- Pressure Gauge
- (2) Forged Steel V-Blocks
- (2) Forged Steel Table Plates
- V-Ram Nose
- Like New Condition
Eagle HP-90 Tube End Former
Eagle HP-90 Tube End Former
- Serial Number – 1992
- Max. Capacity – 2 3/4″ Tubing
- Min. Capacity – 1″ Tubing
- Machine Cycle Time – 5 – 9 Seconds
- Main Motor – 20 HP
- Dimensions – 40″ x 60″ x 46″ H
- Weight – 3,000lbs.
Machine is Equipped with:
- Ability to expand ID
- Reduce OD
- Drop in tooling system
- Self contained hydraulic system
- Remote control pedestal
- Several sets of tools
Price – Price On Request
1995 Bridgeport Mill
1995 Bridgeport Mill
- Year – 1995
- X Backlash – 0.003″
- Y Backlash – 0.010″
- Serial Number – 267818
- Table Working Surface – 9″ x 42″
- Table Travel (longitudinal X) – 30″
- Saddle Travel (Y) – 12″
- Quill Travel – 5″
- Knee Travel 16″
- Ram Travel – 12″
- Throat Distance – 6 3/4″ – 18 3/4″
- Table Load – 750lbs.
- Spindle Speeds – 60 – 4,200 rpm
- Power Down Feed to Head (3) – 0.0015″, 0.003″, 0.006″
- Collet Capacity – 3/4″
- Spindle Taper – R-8
- Electrics – 2 HP/220-440/3/60
- Approximate Overall Dimensions – 62″ W x 63″ D x 83″ H
- Approximate Weight – 2,000lbs.
Machine is Equipped with:
- Sony Millman 2-axis DRO
- Chrome Ways
- 5″ Riser in Column
- 1-Shot Lube System
- Servo Brand Type 150 x-axis Power Feed
- Mitutoyo Digital Gage for Quill Position
- Set of R-8 Collets
Price – Price On Request
800 Ton Verson Straight Side 4-Point Press For Sale
800 Ton Verson Straight Side 4-Point Press For Sale
- Model #S4-800-108-66T
- Tie rod frame
- Stroke 8″
- Strokes per minute 30 – 60
- Bed 66″ x 108″
- Slide 66″ x 108″
- Shut height 43″ to bed
- Bolster plate 9″ thick
- Slide adjustment 6″ motorized
- Air clutch & brake
- Air counterbalances
- Window in uprights 44″ wide
- Motor & controls
- Price On Request
Click Here For Updates on Machines & Equipment As They Become Available
25 Ton Grand Traverse Overhead Bridge Crane
25 Ton Grand Traverse Overhead Bridge Crane
- Span: 59′
- Shaft Driven
