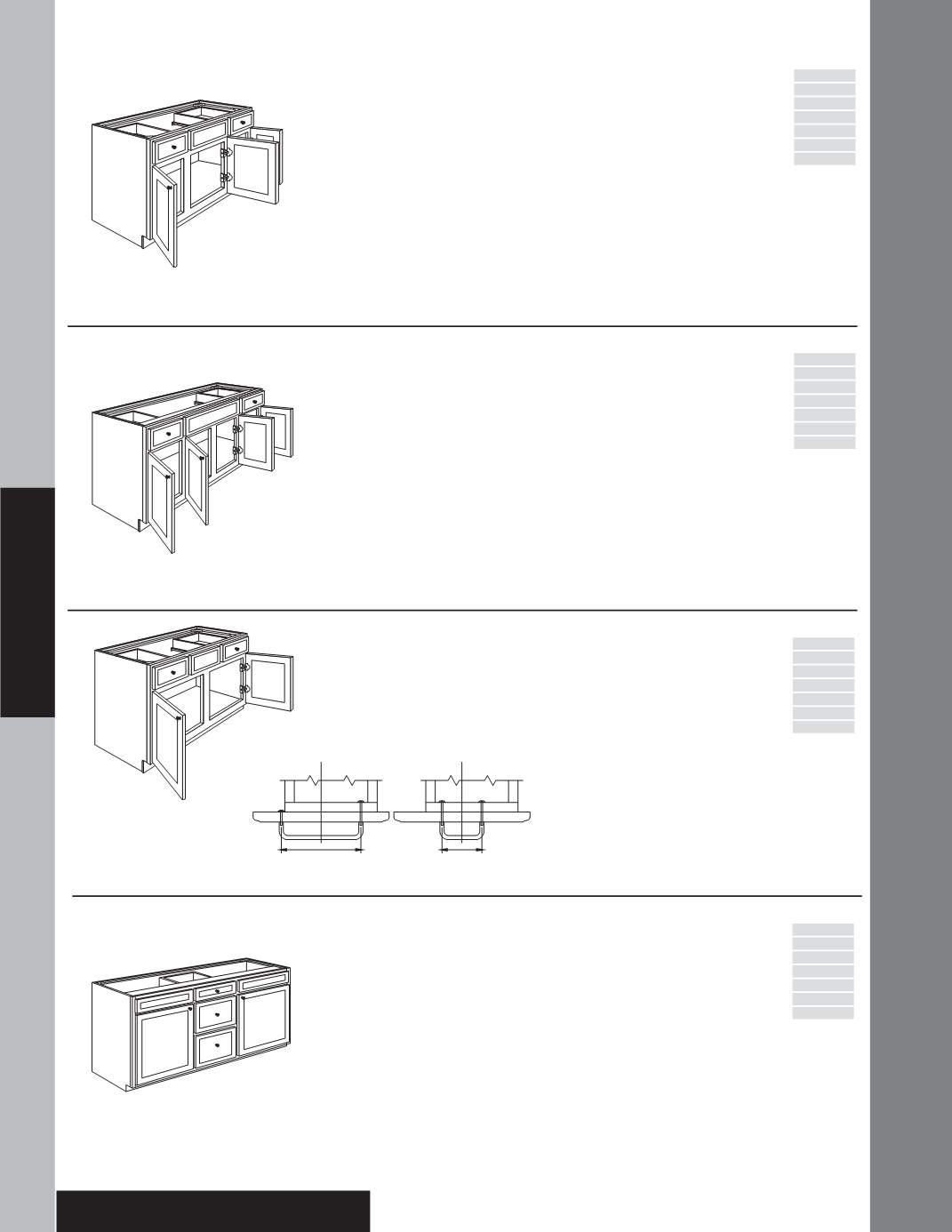

Vanity Sink Base Three Door
31 1/2” High, 18” Deep
s
VSB421831 •2
s
VSB481831 •2
s
VSB541831 •2
34 1/2” High, 18” Deep
s
VSB421834 •2
s
VSB481834 •2
s
VSB541834 •2
31 1/2” High, 21” Deep
VSB422131 •2
VSB482131 •2
VSB542131 •2
34 1/2” High, 21” Deep
VSB422134 •2
VSB482134 •2
VSB542134 •2
• False front only between drawers
• Two standard drawers
• Center door is hinged right
• Space between drawers for sink installation
is 21”
• 54” wide cabinets have a 3 3/16” wide full-
width support cross rail across top front of
cabinet
• Back panel is pre-drilled for Roll-Out Trays
(ROT) behind center door on VSB54
•
Note
: When depth is reduced to 12” or 15”,
drawers become a false front
l
PE
l
APC
RD9
l
RD12
l
RD15
I
RD18
l
CFO
18˝, 21˝
31 ½˝
34 ½˝
12˝
15˝
18˝
12˝
15˝
18˝
18˝
18˝
18˝
s
Reduce to 18” depth
not
available
Vanity Sink Base Four Door
18” Deep
s
VSB601831 •2
s
VSB601834 •2
21” Deep
VSB602131 •2
VSB602134 •2
• False front only between drawers
• Two standard height top drawers
• Door left of center hinged left, door right
of center hinged right
• Actual cabinet width is 59 1/2”, frame
stiles are extended and may be trimmed a
maximum of 1/2” each to a cabinet width of
58 1/2”
• Space between drawers for sink installation is
31 3/4”
• 3 3/16” wide full-width support crossrail
across top front of cabinet
•
Note
: When depth is reduced to 12” or 15”,
drawers become a false front
l
PE
l
APC
RD9
l
RD12
l
RD15
I
RD18
l
CFO
18˝, 21˝
31 ½˝
34 ½˝
s
Reduce to 18” depth
not
available
Vanity Sink Base Two Drawer
18” Deep
s
VSB361831 •2
s
VSB361834 •2
21” Deep
VSB362131 •2
VSB362134 •2
• False front only between drawers
• Space between drawers for sink installation
is 18”
•
Note
: When depth is reduced to 12” or
15”, drawers become a false front
•
Note
: Two standard height top drawers.
Drawer fronts are offset from drawer core.
This limits the sizes of pulls that can be
positioned in the middle of the drawer front
to pulls with 6” centers or 3” and narrower
centers. See details.
l
PE
l
APC
RD9
l
RD12
l
RD15
I
RD18
l
CFO
RIGHT HAND DRAWER SHOWN
3" centers
or less
CL of drawer front
CL of drawer front
6" centers
18˝, 21˝
31 ½˝
34 ½˝
s
Reduce to 18” depth
not
available
Vanity Sink Base Three Drawer
18” Deep
s
VSB541831 •3
s
VSB601831 •3
21” Deep
VSB542131 •3
VSB602131 •3
• False drawer fronts above each door
• One standard drawer
• Two deep drawers
• 3 3/16” wide full-width support crossrail
across top front of cabinet
• Opening on each end for sink installation is
18 7/8” for 54” cabinet and 21 1/4” for 60”
cabinet
• Actual cabinet width for VSB60 is 59 1/2”,
frame stiles are extended and may be trimmed
a maximum of 1/2” each to a cabinet width of
58 1/2”
• Optional Accessory Roll-Out Trays (ROT)
available for 54” wide cabinets only
• Back panel is
not
pre-drilled
•
Note
: When depth is reduced to 12” or 15”,
drawers become a false front
l
PE
l
APC
RD9
l
RD12
l
RD15
I
RD18
l
CFO
31 ½˝
21˝
20¾˝
12˝
18˝
21˝
20¾˝
18˝, 21˝
s
Reduce to 18” depth
not
available
