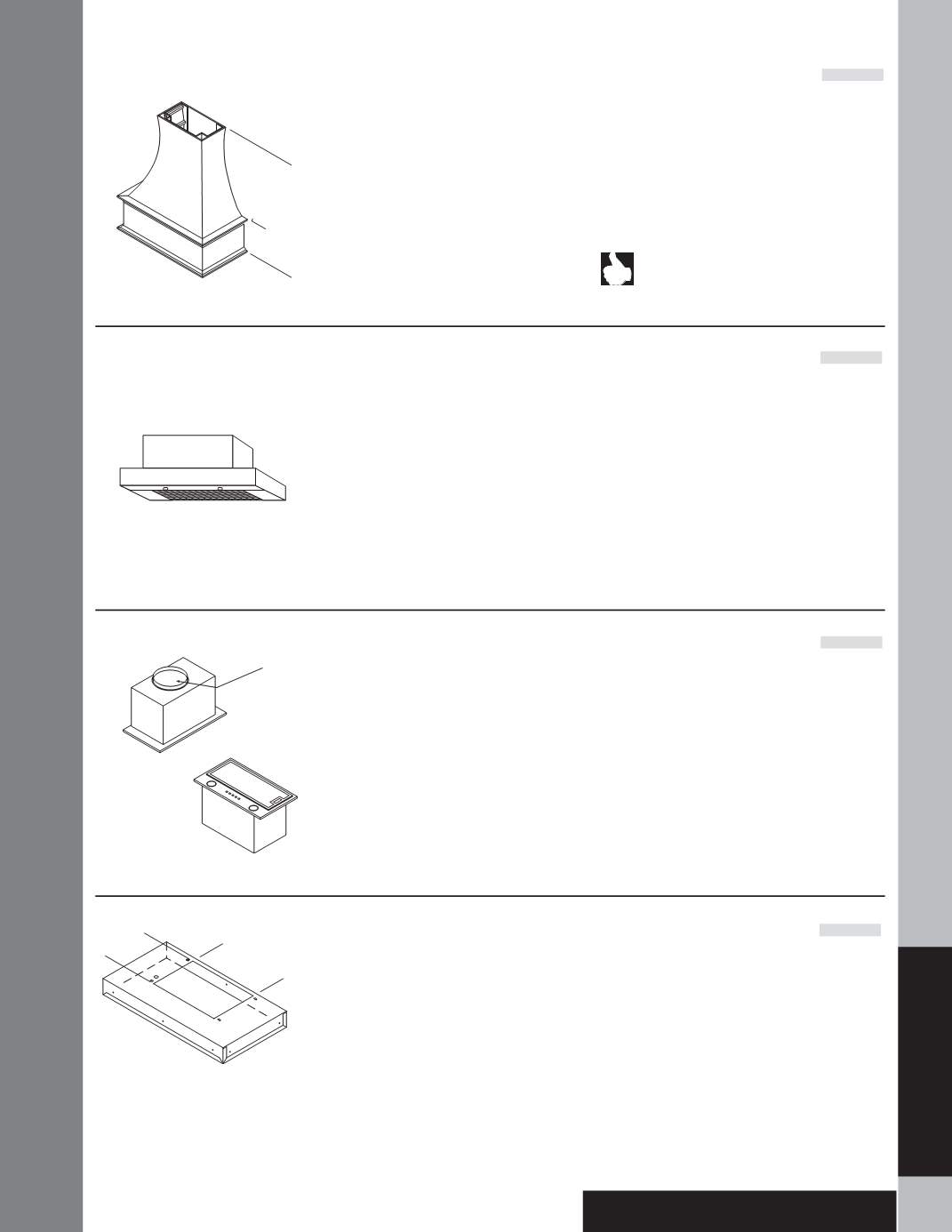

Wall Cabinets
D19
Wall Hoods
Wall Hood Cove
WHCV362442
• Solid wood/wood veneer construction
• For installations with exterior ductwork
• A 3” space is recommended on both sides of
hood for adjacent cabinet runs
• Can accommodate ceilings up to 9’ high
• Not designed to be used with a soffit
• Requires a metal liner and blower. See Wall
Hood Liner (WHL36) and Wall Hood Blower
(WHB36-620)
•
Note
: Cabinetry and appliances located
below these Wall Hoods
must
be pulled to a
minimum of 27˝deep and a maximum of 30˝
deep for improved function
Mount hood a minimum of 24”
above range cooking surface.
Consult building codes prior to
installation. Hood
must
be securely anchored
to wall
v
APC
21˝
38˝
35 ½˝
12˝
42˝
12˝
20˝
Wall Hood Front Blower
RHB
• Double squirrel cage blower unit (360 CFM
maximum) with a solid state, variable
speed control, on/off switch, and two 40
watt tubular light fixtures with lens diffuser
and dimming switch. Tubular bulbs
not
included
• For installations with exterior ductwork
• 3 1/4” x 10” top exhaust with built-in back
draft damper unit; duct
not
included
• Pre-wired for electrical connection
• AC 120 volt required
• Charcoal filter laminated within replaceable
grease filter
• Washable aluminum mesh grease filter
included
• UL and CSA approved
• For use with Wall Hood Front (RHF)
• Almond colored painted finish
APC
Wall Hood Blower
WHB36•620
• 620 CFM/7.5 Sones; three-speed motor with
push button electronic control
• For installations with exterior ductwork
• Constructed of heavy gauge steel
• Pre-wired for electrical connection
• AC 120 volt required
• 8” diameter duct vents on top
• Dual bulb halogen lighting (PAR 20) included
• UL and HVI approved
• For use with Wall Hood Cove (WHCV) and
Wall Hood Classic Chimney (WHCC)
• For use with Wall Hood Liner (WHL)
• Metallic medium gray painted finish on
cover plate is corrosion and rust resistant.
Blowerbox has galvanized finish
APC
8"
diameter
10 ½˝
11 ½˝
17 / ˝
12"
21 / ˝
Wall Hood Liner
WHL36
• Constructed of heavy gauge steel
• For installations with exterior ductwork
• For use with Wall Hood Cove (WHCV) and
Wall Hood Classic Chimney (WHCC)
• For use with Wall Hood Blower (WHB)
• Metallic medium gray painted finish on cover
plate is corrosion and rust resistant
APC
34 / ˝
18 / ˝
4˝
11 ¼˝
17 / ˝
