Wall Cabinets
D18
Wall Hoods
Wall Hoods
Construction Options and
Modifications
I
Available with exceptions
l
Available with an upcharge
v
Included as standard
(Blank)
Not
Available
Consult your local building code for rules and
regulations that may apply to the installation of this
product.
Specifications subject to change
without
notice.
APC All Plywood Construction
WHCC 36 24 42
code
width
depth
height

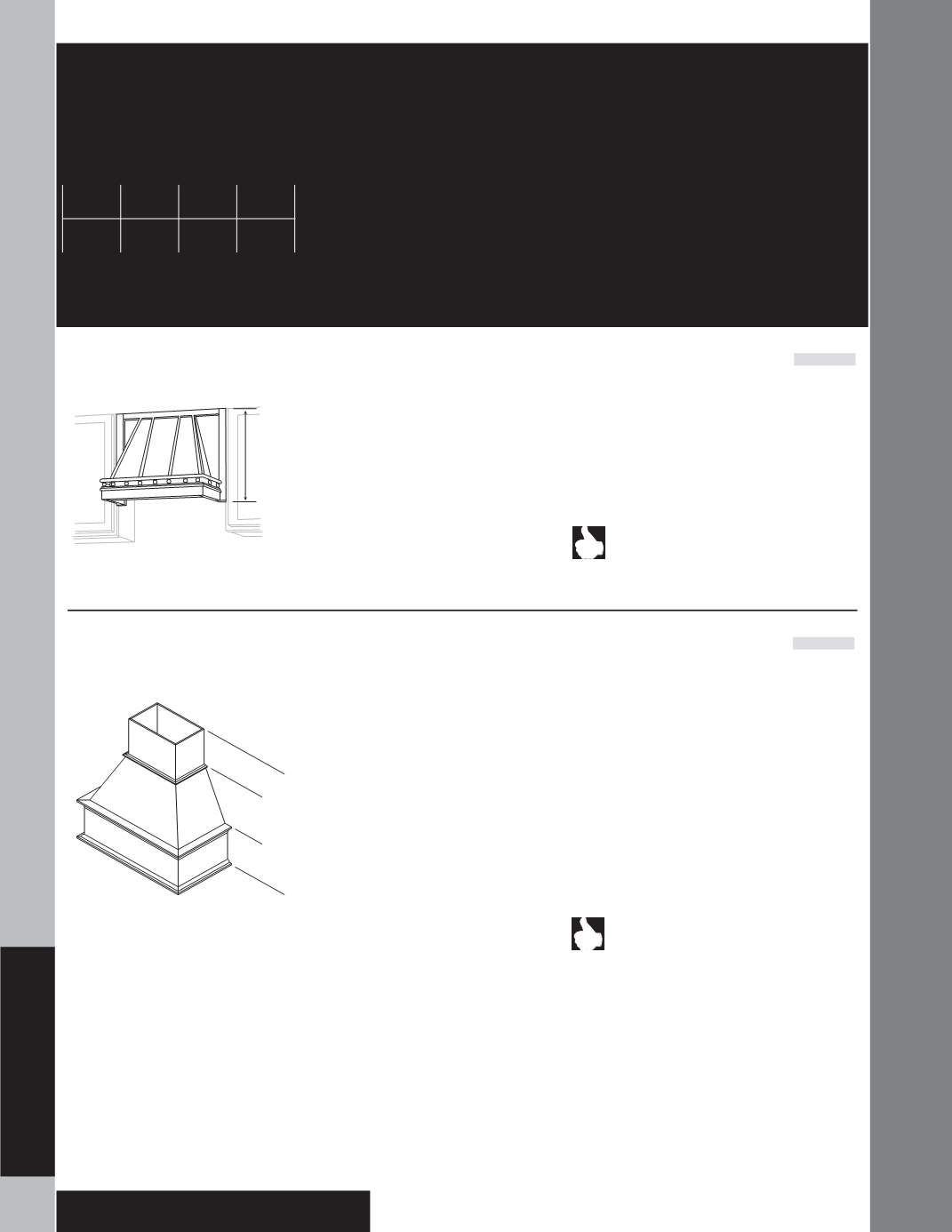

Wall Hood Front
RHF3024SP
RHF3624SP
• Decorative slanted range hood with batten
strips
• For installations with exterior ductwork
• Hood extends 7 1/4” from face frame of
adjacent wall cabinets, 19 1/4” from wall
• Galley rail included, shipped unattached
• Almond colored painted metal liner included
• Wall Hood Front Blower (RHB) required;
ordered separately
•
Note
:
Must
be installed between two cabinets
or between cabinet and side wall
Mount hood a minimum of 24”
above range cooking surface.
Consult building codes prior to
installation. Hood
must
be securely anchored
to wall
v
APC
23 ½˝
30˝ or 36˝
Wall Hood Classic Chimney
WHCC362442P
• Solid wood/wood veneer construction
• For installations with exterior ductwork
• A 3” space is recommended on both sides of
hood for adjacent cabinet runs
• Can accommodate ceilings up to 9’ high with
installation of the chimney or 8’
without
the
chimney
• Not designed to be used with a soffit
• 12” tall chimney is shipped unattached for
easier installation
• Requires a metal liner and blower. See Wall
Hood Liner (WHL36) and Wall Hood Blower
(WHB36)
•
Note
: Cabinetry and appliances located
below these Wall Hoods
must
be pulled to a
minimum of 27˝deep and a maximum of 30˝
deep for improved function
Mount hood a minimum of 24”
above range cooking surface.
Consult building codes prior to
installation. Hood
must
be securely anchored
to wall
v
APC
21˝
38¾˝
12 ½˝
12˝
17 ½˝
42˝
20˝
11¾˝
