Specifications and Options
C1
Cabinet Specifications
Cabinet
Specifications

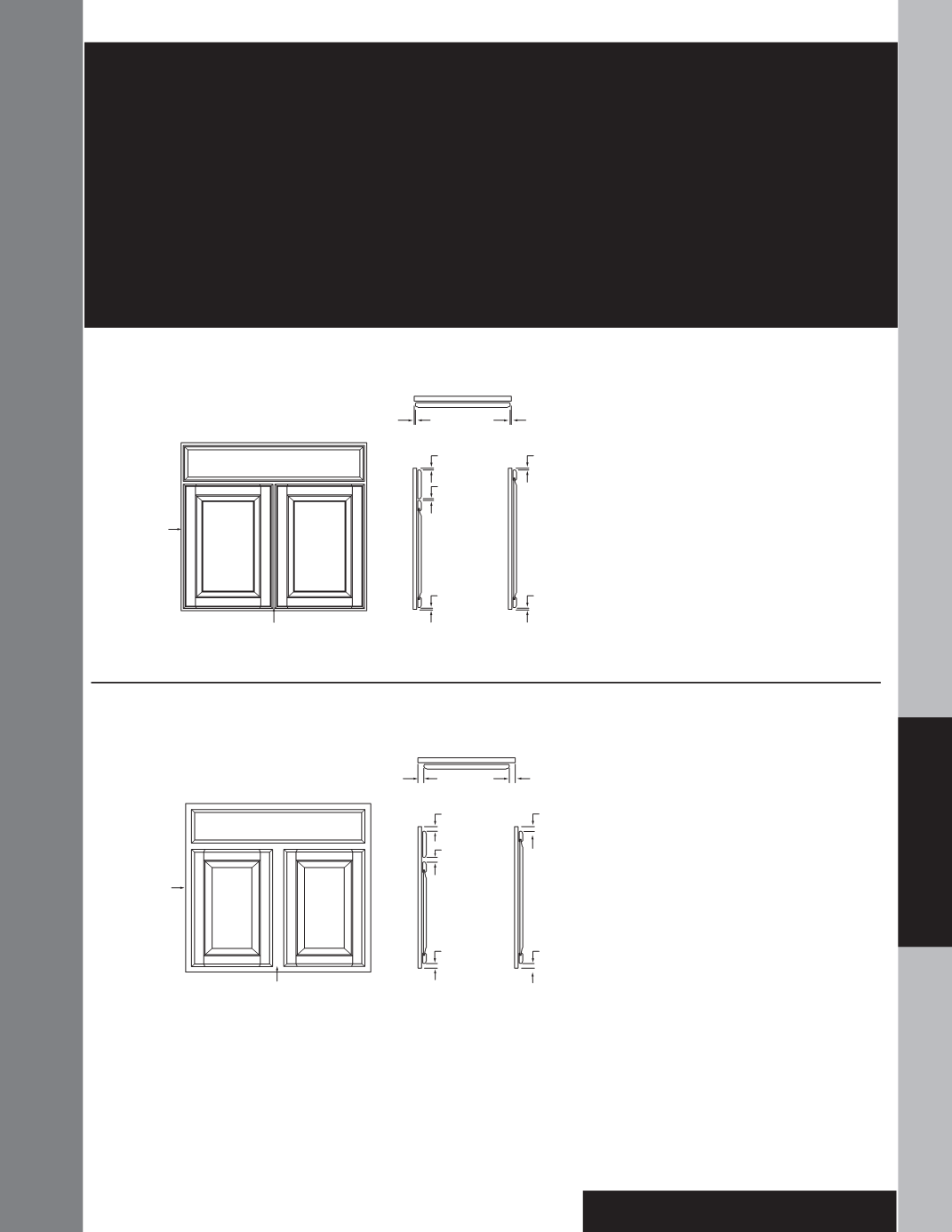

Full Overlay – Concealed Hinges
• Full Overlay doors leave 3/16˝ of the cabinet’s
face frame exposed on either sides of the
doors and 3/8” exposed between doors
• Butt door cabinets have 1/8” reveal between
doors
• Nickel-finished self-closing hinges, adjustable
six ways for perfect alignment
• The reveals shown here may vary slightly on
some cabinets due to actual door/drawer
front sizes used. Refer to the replacement
part section of the book for actual door/
drawer sizes for specific cabinets
⁄"
reveal
⅜"
reveal
top view
side view
⁄"
⁄"
⅜"
⅜"
⅜"
⅜"
⅜"
Partial Overlay – Concealed Hinges
• Partial overlay doors leave 7/8” of the
cabinet’s face frame exposed on either side of
the doors and 1 3/4” exposed between doors
• Butt door cabinets have 1/8” reveal between
doors
• Nickel-finished self-closing hinges, adjustable
six ways for perfect alignment
• The reveals shown here may vary slightly on
some cabinets due to actual door/drawer
front sizes used. Refer to the replacement
part section of the book for actual door/
drawer sizes for specific cabinets
⅞" reveal
1¾" reveal
⅞"
⅞"
top view
side view
1"
1"
1"
1"
1"
