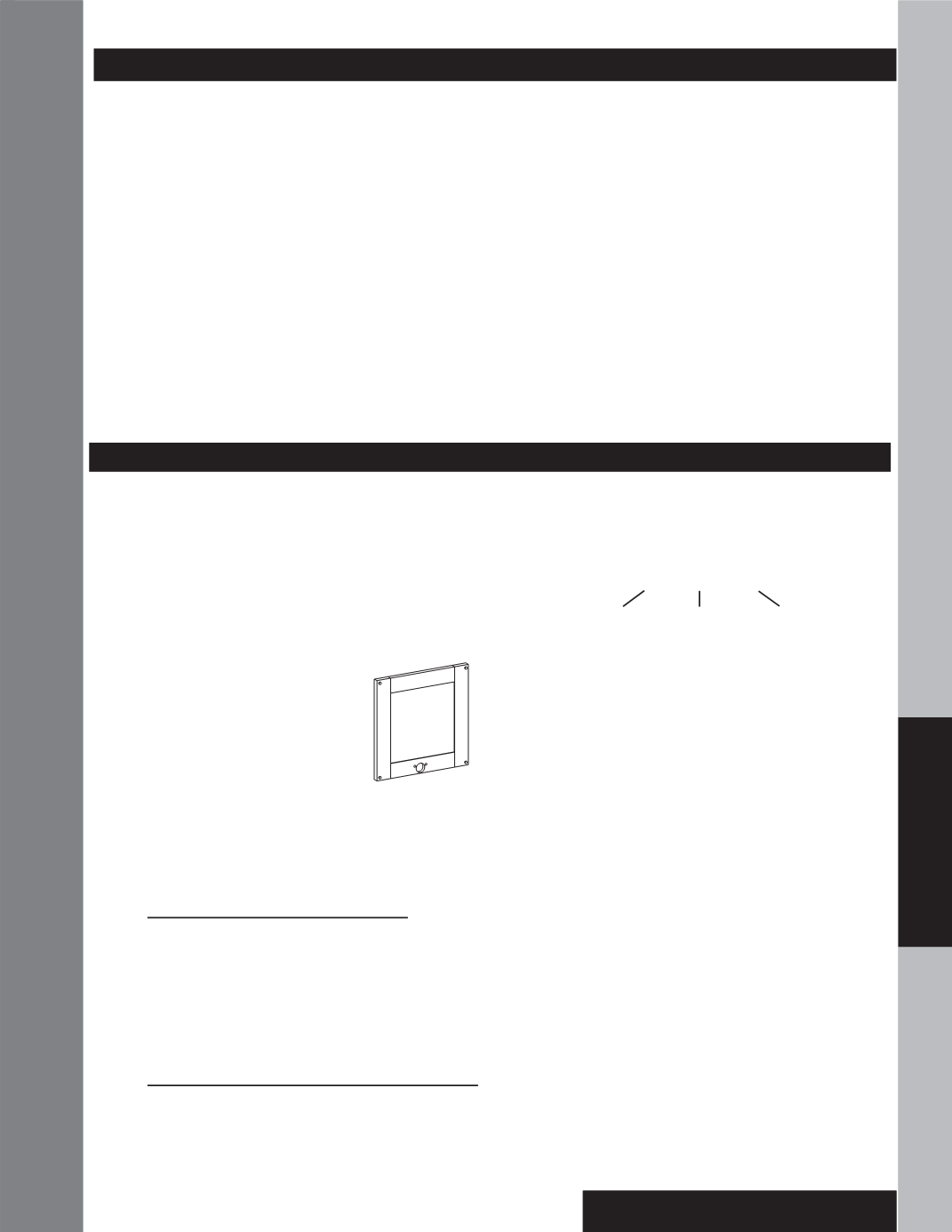

Door & Drawer Fronts - How to use
Replacement doors may be ordered for wall or base application.
When ordering, specify door style, hinging and •W (wall) or •B
(base). Any arch doors ordered as •B will be shipped in a square
design.
Example:
You need a replacement door for a wall 1830, hinged left.
Order: RD1830L•W
Replacement doors are prepared for hinges.
Replacement doors and drawer fronts are
shipped with pliable bumpers attached.
Replacement doors with Bistro Glass,
Savanna Glass, or Traditional Mullion Glass
installed are available on select cabinets. To
order, determine the replacement door(s)
required and add desired glass insert.
Example:
You need a Bistro Glass insert for a wall 1830, hinged left.
Order:
RD1830L•W–1BIS1
Pricing:
RD1830L•W
+ 1 Bistro Insert for 12”-30”high
= Total for replacement door
with insert installed
Example:
You need a Traditional Mullion Glass insert for a wall
1836, hinged left.
Order:
RD1836L•W–1MD2
Pricing:
RD1836L•W
+ 1 Traditional Mullion Insert for 36”-42” high
= Total for mullion door
with insert installed
Replacement doors and drawer fronts are coded for easy refer-
ence. The prefix codes indicate door or drawer and usage. The
first two digits indicate nominal width and the second two digits
indicate nominal height.
RD 18 30
Prefix
Nominal
Nominal
code
Width
Height
Prefix codes are as follows:
RD replacement door
RDB replacement door butt
RDBBC replacement door base blind corner
RDBCA replacement door blind corner angle
RDEZR*
replacement door easy reach
(two doors hinged together)
RDBPP replacement door base pots and pans
RDBWBT replacement door base waste basket top mount
RDDFD replacement door desk file drawer
RDWBC replacement door wall blind corner
RDW replacement drawer front
RDWSFA replacement drawer sink front angle
RDWVSB replacement drawer vanity sink base
Replacement Parts
M13
This guide allows you to choose from a complete line of
doors and drawer fronts for replacement as well as special
applications such as appliance fronts, whirlpool skirts,
wainscoting, etc.
This section is divided into three parts
I.
Part Index
This part lists all cabinets alphabetically by their
nomenclature and tells you the corresponding
replacement doors and drawer fronts used on that
cabinet. Find your door style in the index on the
following pages to determine the configuration to use.
II.
Sizes
This part lists all replacement doors and drawer fronts
by their nomenclature. They are sorted by their
nominal height (last two numbers of the
nomenclature) from largest to smallest.
To choose doors and drawer fronts for replacement, use
the Part Index section to look up the cabinet and deter-
mine which doors and drawer fronts are needed. Then
look up the door(s) and drawer front(s) in the Price List
catalog under the price column number appropriate to
your door style.
To choose doors and drawer fronts for special decorative
applications, use the Sizes section and look in the ap-
propriate overlay column to determine which doors and
drawer fronts are needed. Then look up the door(s) and
drawer front(s) in the Price List catalog under the price
column number appropriate to your door style.
III.
Drawer Boxes
This part lists all replacement drawer boxes by their
nomenclature. They are sorted by their nominal
height (last two numbers of the nomenclature) from
smallest to largest.
How to Use This Section
Replacement Door & Drawer Front Information
