Zerto Analytics Secure Architecture

Transmitted Zerto Analytics data is securely stored and can be securely viewed and exported by the user. The data is also used by the analytics engine to provide advanced guidance and analysis. The following section describes the secure architecture that provides the path to transmit, the datastore where the data is housed, and access of that data.

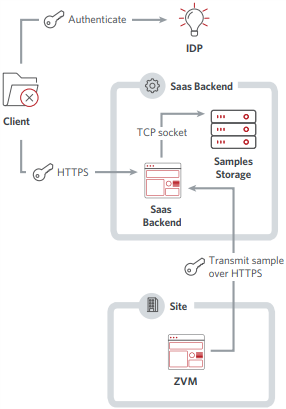

ZVM sends all the data over HTTPS TLS 1.2 only to https://zerto-mobile-data.zerto.com. The data is stored in the Samples Storage in the SaaS backend, located in the public cloud. All communication to and from the cloud are encrypted (HTTPS) using TLS 1.2. Furthermore, the data is isolated in the SaaS backend and accessible only within the backend itself an via VPN from Zerto. End users are authenticated using their myZerto credentials.

Transmission and Storage of Site Status

ZVM transmits current site status over secured HTTPS to the SaaS backend in short (~1 minute) intervals. The SaaS backend collects site status data from all transmitting sites and stores it in the “Samples Storage”. The “Samples Storage” is secured inside an internal protected network and is accessible only within the backend itself and via VPN from Zerto. The samples are kept in the “Samples Storage” of the Zerto Analytics cloud for 30 days to support 30 days of report history.

User Authentication and Authorization

Before sending any request to the backend, a client (browser/mobile/RESTful client) must obtain a security token which securely identifies the user. The security token is achieved by authenticating the user against the Identity Provider (IDP). Each client request contains the security token. For each request, the backend validates the security token and authorizes execution of the request according to the user’s identity which is part of the security token’s payload.

Reporting Historical Data

For each client request, the backend gets the latest data from the relevant samples as stored in the “Samples Storage”. The relevant data is sent to the client.

Zerto Analytics Collected Data

The Zerto Analytics dashboard utilizes several metrics to deliver detailed monitoring and reporting of your multi-site Multi-Cloud environment. The following table was created to address privacy and security issues surrounding data collection.

The following table outlines each piece of information that is collected and sent from the ZVM for Zerto Analytics.

COMPONENT	PARAMETER	DESCRIPTION
Alerts
	affectedZorgs	List of ZORGs affected by the alert.
	affectedZorgIds	List of ZORG IDs affected by the alert.
	alertIdentifier	Internal alert identifier.
	affectedVpgIds	List of VPG IDs affected by the alert.
	alertType	Help identifier associated with the alert.
	createdDateinUTC	The time the alerts was created.
	description	Alert description.
	entityType	The entity for which the alert applies.
	severity	Alert severity (Warning or Error).
	site	The site which is affected by the alert.
Tasks
	taskName	The task type.
	taskIdentifier	Unique identifier of the task.
	status	The status of the task.
	startedDateInUtc	The time the task started.
	completedDateInUtc	The time the task was completed.
	progress	Progress of the task in percentage of completion.
	sitename	Name of the site.
	protectedDataInMB	Total data protected in the ZVM site.
	siteIdentifier	Internal site identifier.
	transmitterCycleInSec	Number of seconds between two (2) data transmissions.
	type	Site environment.
	initiatedBy	Name of user who initiated task.
	information	Task details.
	relatedVpgsList	List of VPGs related to the task.
	relatedSitesList	List of sites related to the task.
Site
	collectionTimeInUtc	Time the ZVM data was collected.
	documentVersion	Version of the document.
	hashedLicenseKey	ZVM license hashed.
	isTransmissionEnabled	Whether transmission of data was enabled by the user.
	sitename	Name of the site.
	protectedDataInMB	Total data protected in the ZVM site.
	siteIdentifier	Internal site identifier.
	transmitterCycleInSec	Number of seconds between two (2) data transmissions.
	type	Site environment.
	utcOffsetInMinutes	Offset of the site time from UTC, in minutes.
	version	Zerto Virtual Manager version.
	vpgsAlertsCount	Number of active alerts in ZVM.
	zorgsCount	Number of ZORGs in the ZVM site.
	zvmIp	IP of the ZVM
VPGs
	actualJournalHistoryInSeconds	The actual journal history, in seconds.
	actualRpoSeconds	Time since the last checkpoint was written to the journal in seconds.
	configuredJournalHistoryInMinutes	Configured journal history, in minutes.
	configuredRpoSeconds	Configured RPO, in seconds.
	earliestRecoveryPointLocalDateInUtc	Time of the earliest checkpoint in the journal.
	priority	Priority specified for the VPG.
	protectedSite	Protected site details (Site ID, Site Name, Site Type and ZVM version).
	recoverySite	Recovery site details (Site ID, Site Name, SiteType and ZVM version).
	status	Status of the VPG.
	subStatus	Substatus of the VPG.
	vpgIdentifier	Identifier of the VPG.
	vpgName	Name of the VPG.
	zorgName	Name of the Zerto organization set up in the Zerto Cloud Manager, which uses this VPG.
VMs
	IOPS	IO per second between all the applications running on the virtual machine in the VPG and the VRA, that sends a copy to the remote site for replication.
	journalHardLimit	Maximum journal size in MBs, or in a percentage of the virtual machine volume size.
	journalWarningThreshold	Journal size in MBs, or in a percentage of the virtual machine volume size, that generates a warning when the journal is nearing its hard limit.
	outgoingBandWidthInMbps	Bandwidth throttling defined for the virtual machines.
	provisionedStorageMb	The storage provisioned for the virtual machine in the recovery site.
	throughputInMB	MBs of all the applications running on the virtual machine being protected.
	usedJournalStorageMb	Storage used by the virtual machine at the recovery site for Journals.
	usedStorageMb	Storage used by the virtual machine at the recovery site.
	vpgName	The name of the VPG, of which the VM is associated.
	vmIdentifier	ID of the VM.
	vmName	Name of the VM.
VRAs
	vraName	Name of the VRA.
	vraVersion	Version of the VRA.
Events
	eventIdentifier	The identifier of the event.
	eventCategory	Category of the event. (Possible values: VPG, VRA, Site).
	eventType	The type of event.
	siteIdentifier	The internal site identifier related to the event.
	zorgIdentifier	The identifier of the Zerto organization (ZORG), defined in the Zerto Cloud Manager.
	zorgName	The name of the Zerto organization (ZORG) set up in the Zerto Cloud Manager.
	description	The event description.
	occurredOnInUTC	The date the event occurred.
	eventCode	The event code.
	eventCompletedSuccessfully	Whether the event completed successfully or not.
ZORGs
	zorgIdentifier	The identifier of the Zerto organization (ZORG), defined in the Zerto Cloud Manager.
	zorgName	The name of the Zerto organization (ZORG) set up in the Zerto Cloud Manager.
Datastores
	datastore	The owning datastore.
	isThisProvisioned	Provision type.
	owningVm	The virtual machine on which the volume is attached.
	path	The volume path.
	protectedVm	The protected virtual machine to which the volume is related.
	size	The volumes used storage.
	volumeType	The volume type.
	vpg	The VPG to which the volume is related.
Planning Metrics are collected for all VMs from the source site.
	WriteKBps - Hourly Avg.	The hourly average data write rate.
	WriteIOPS - Hourly Avg.	The hourly average IO count per second.
	VM ID	The virtual machine identifier.
	Datacenter Name	The datacenter name.
	Datacenter ID	The datacenter identifier.
	Host Name	The host name.
	Host ID	The host identifier.
	Cluster ID	The cluster identifier.
	Cluster Name	The cluster name.
	Folder	The VM folder.
	Configured CPU	The configured CPU.
	Configured RAM	The configured RAM.
	Provisioned Size (GB)	The provisioned storage .
	Used Size (GB)	The used storage.
	Disk Count	Number of virtual disks.
