Zerto ICDR Architecture

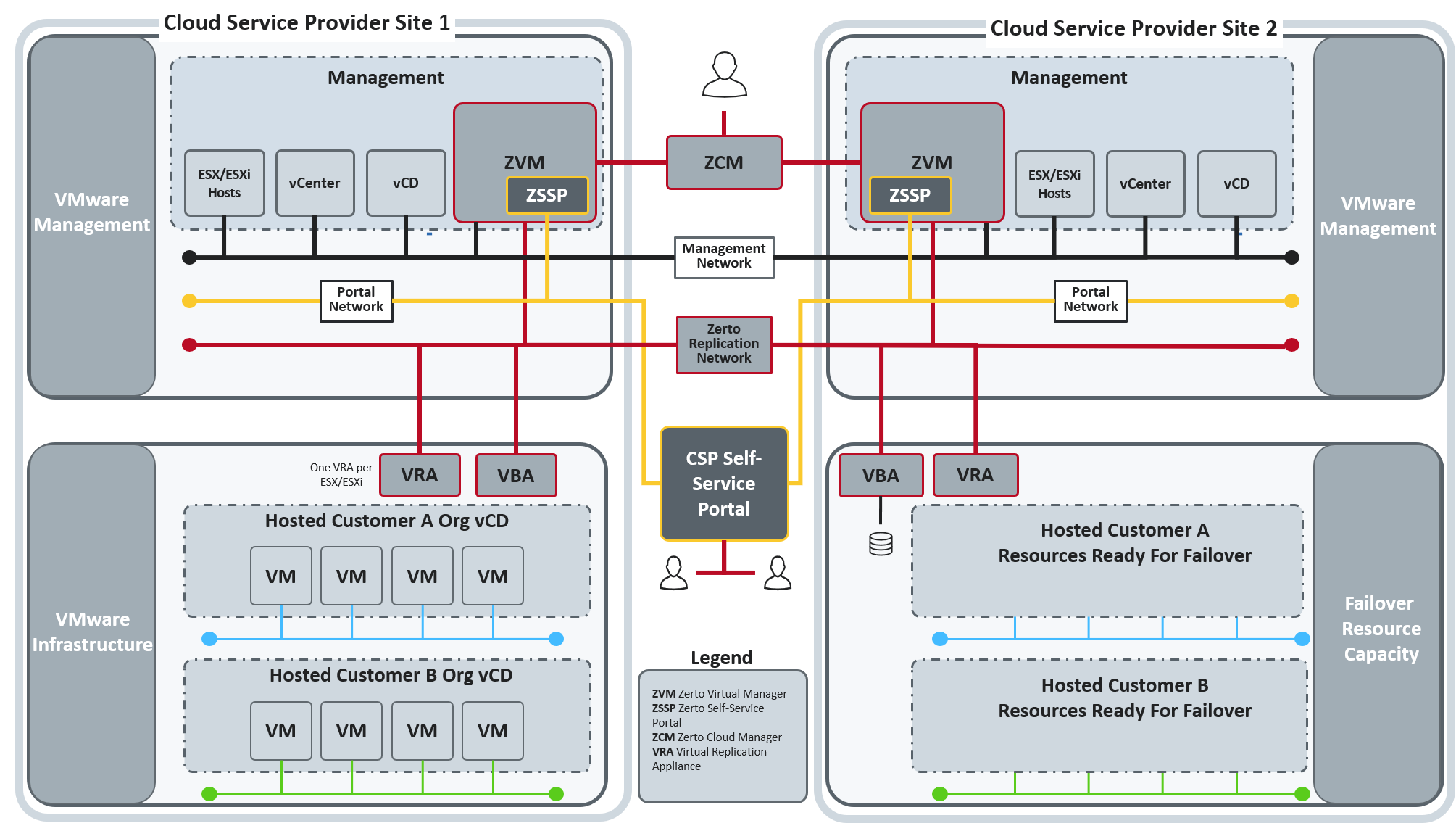

The following diagram shows the basic ICDR architecture. ICDR organizations can manage their disaster recovery via the Zerto Self-service Portal.

The connection between the two cloud sites does not require a Zerto Cloud Connector since the traffic between the two cloud service provider Org vDC Networks belong to the same cloud service provider so separation of networks is not required.
