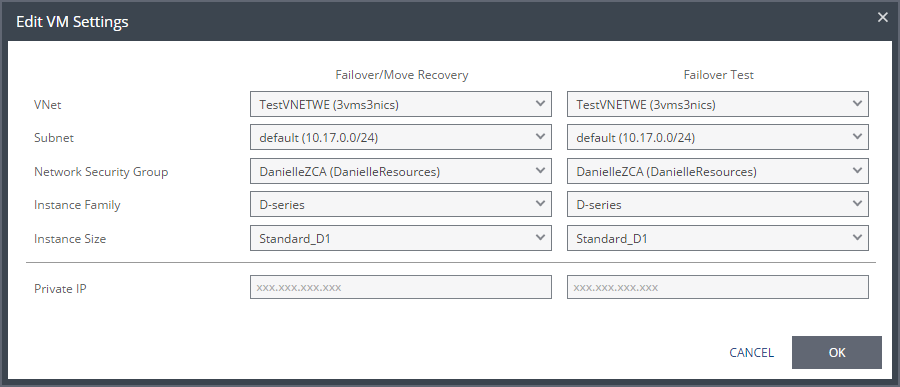

Edit the network settings for one or more virtual machines in a VPG that will be recovered to Azure. There are recovery settings for failovers and moves, and for failover tests.

VNet: A The virtual network dedicated to your Azure subscription.

Subnet: A range of IP addresses in your VPC.

Network Security Group: The Azure network security to be associated with the virtual machines in this VPG. You can associate one or more network security groups with the virtual machines.

Instance Family:– The instance family from which to select the type. Azure instance families are optimized for different types of applications. Choose the instance family appropriate for the application in the virtual machine protected in the VPG.

Instance Type: The instance size, within the instance family, to assign to recovered instances. Different sizes within an instance family vary primarily in vCPU, ECU, RAM, and local storage size. The price per instance is directly related to the instance size.

Private IP: The private IP of an instance from the selected subnet. If you do not set the private IP, during recovery, Azure sets the private IP from the defined subnet range.
