Features:

• 12000 RPM Spindle
• MSC-516 ( Fanuc ) Control
• 1 Degree Index Dual Pallet Changer
• 40 Tools Side Mount Tool Changer
• Expanded Program Memory
• Helical Interpolation
• Rigid Tapping
• Advanced Tool Management
• Coolant Tank
• Telescopic way covers
• Chip Conveyor
• RS-232
• High Pressure Coolant system

Specifications:

Travels:

• X-Axis: 24.8″
• Y-Axis: 23.6″
• Z-Axis: 25.6″
• Rapid Traverse Rates: 1259 Inch Per Minute
• Cutting Feed Rates: 710 Inch Per Minute
• Table Surface to Spindle Center: 2.0″ – 25.6″

Pallet:

• Dual Pallet Changer
• Pallet Size: 19.75″ X 19.75″
• Pallet Change Time: 6 Seconds
• Weight on Table: 2200 lbs

Spindle:

• Taper Size: CAT 40
• Speed Range: 0 – 12000 RPM
• Spindle Power: 30 HP
• Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:

• Capacity: 40 + 1
• Max Tool Weight: 22 lbs
• Max Tool Dia: 6″
• Max Tool Length: 16″
• Tool Changing Time: 1.3 – 3.7 Seconds

General:

• Air Required: 100 psi, 4 scfm
• Power: 220v / 3-Phase
• Overall Shipping Dimensions: 178″ x 110″ x 130″ High
• Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
• Weight: 28,000 lbs

The post Mori Seiki SH50 Horizontal Mill For Sale appeared first on Affordable Machinery.

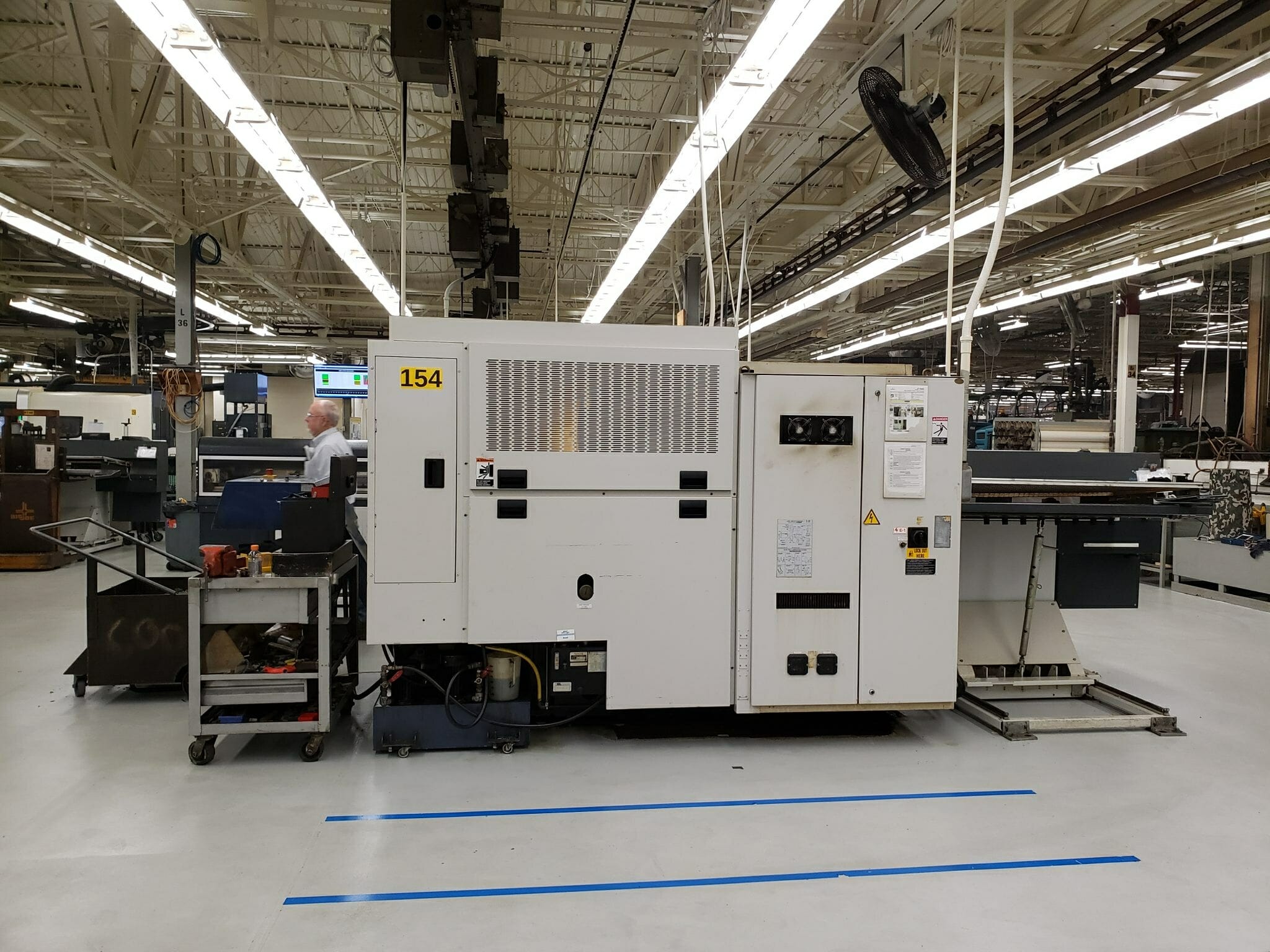

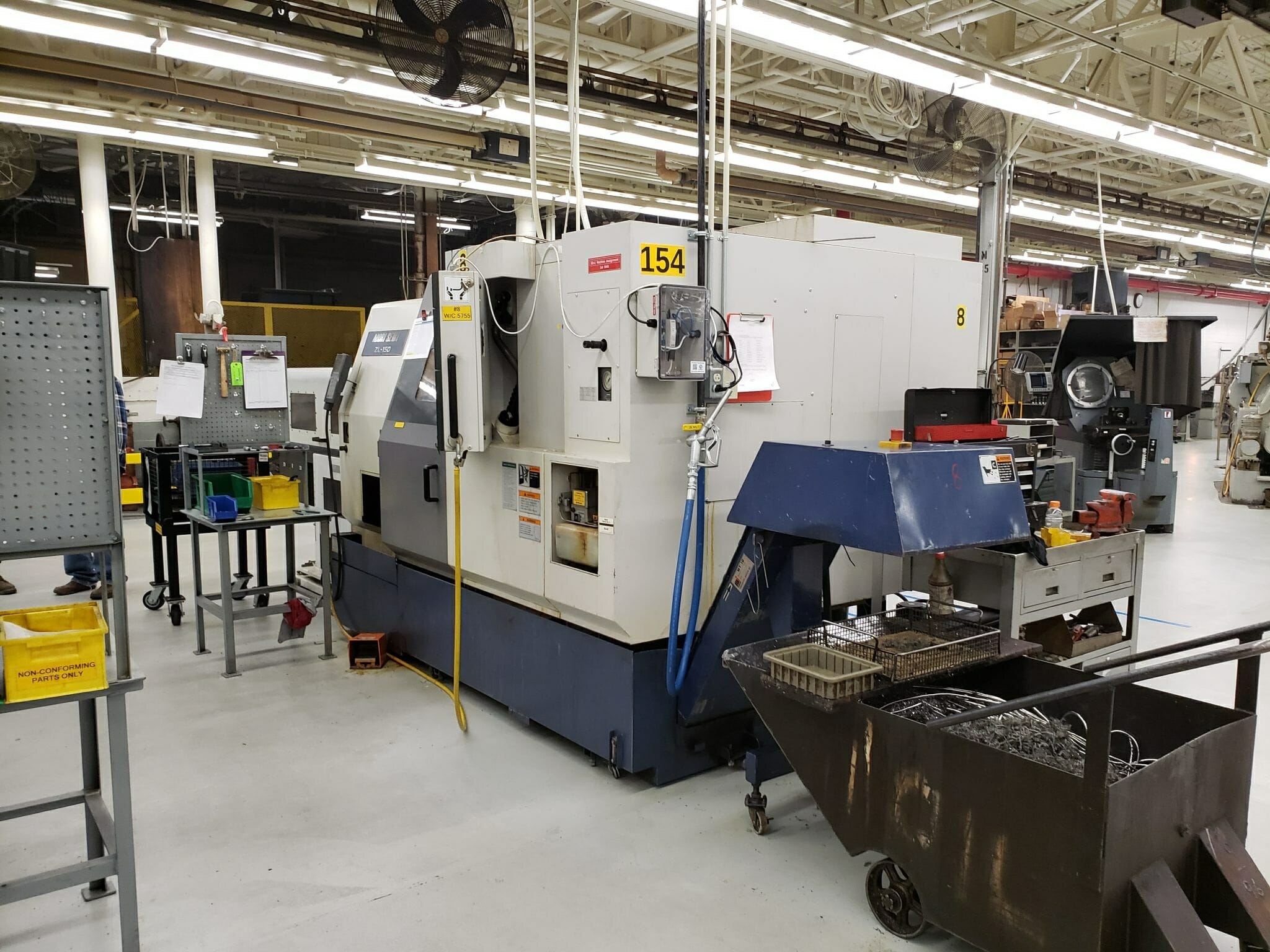

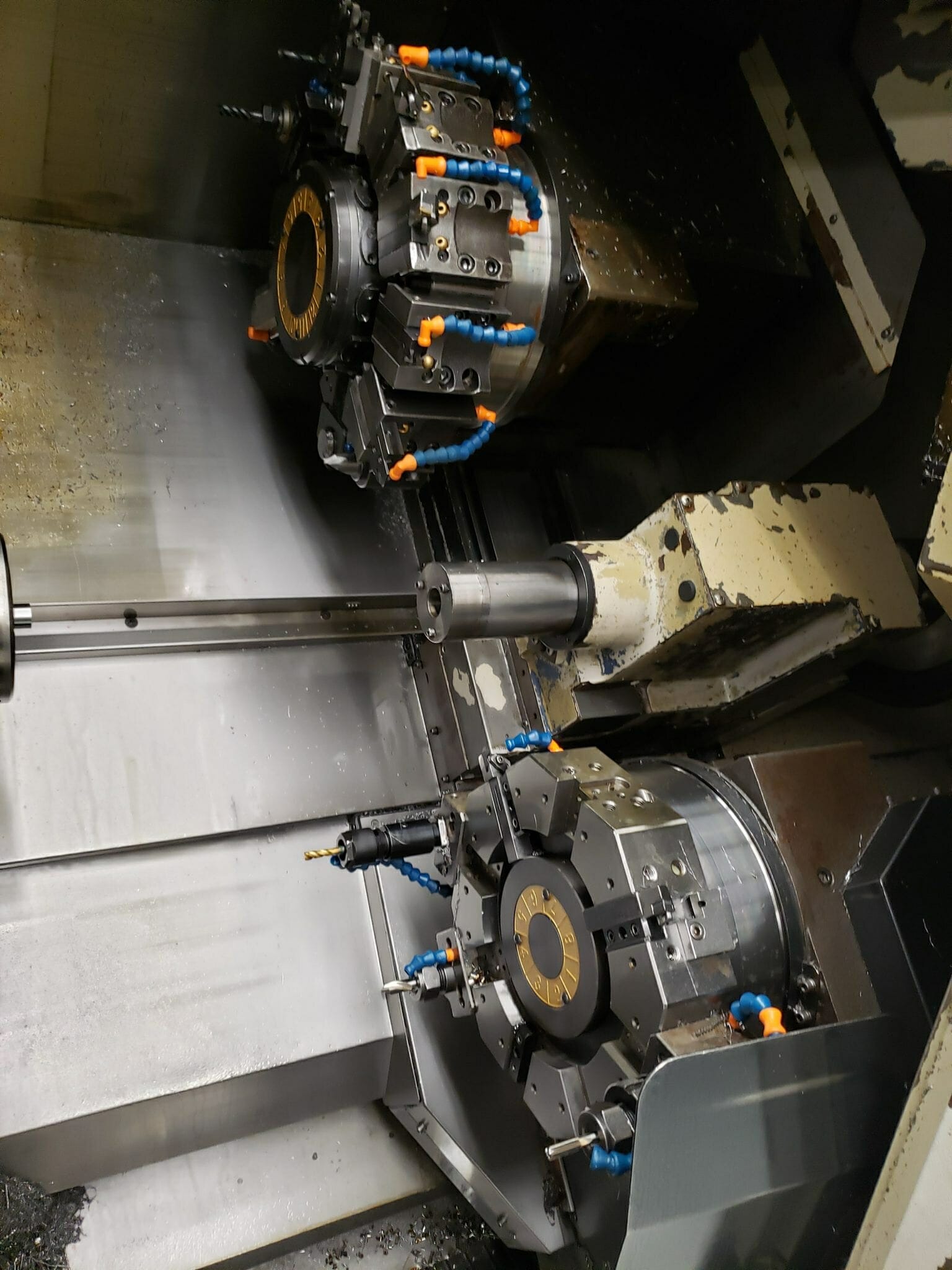

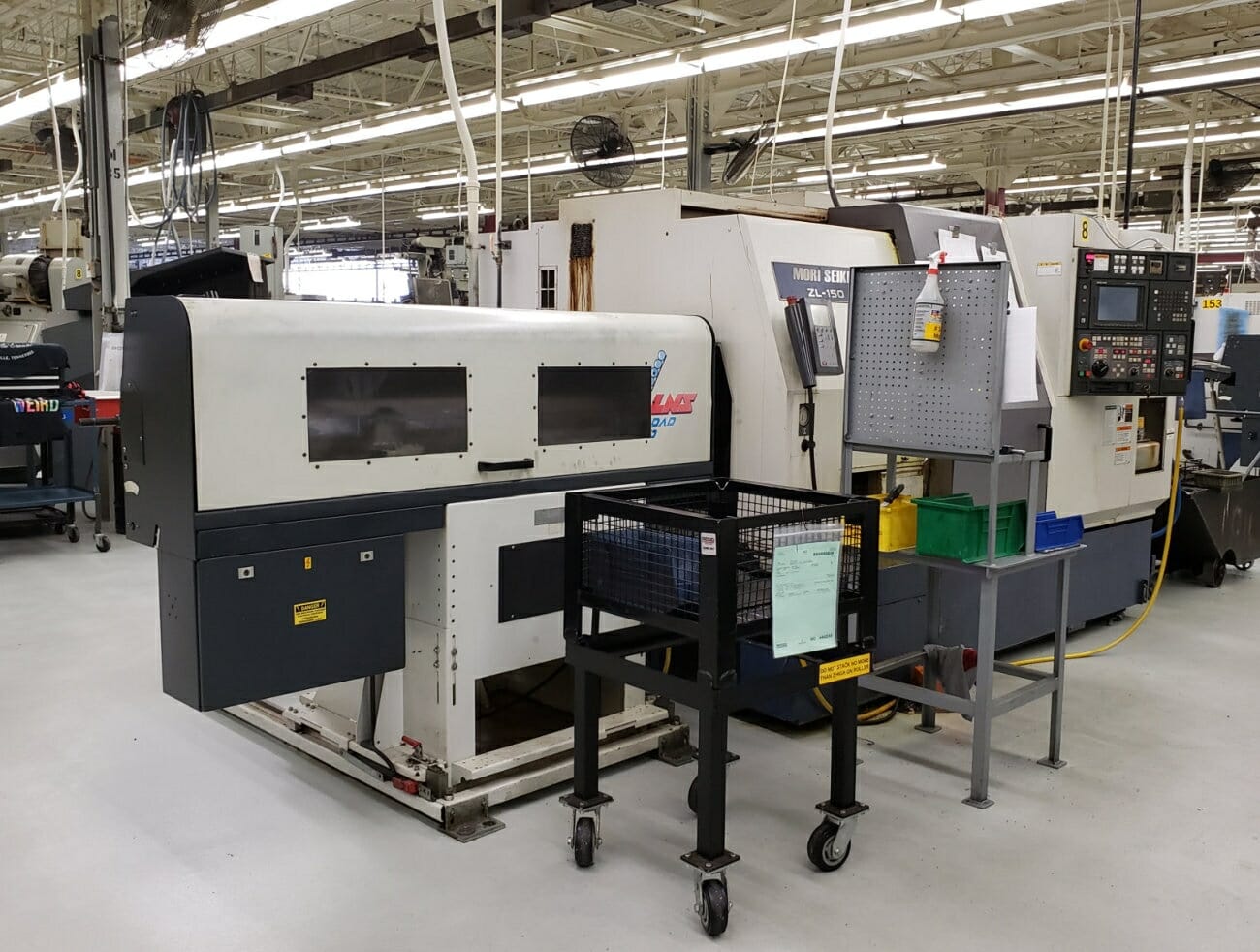

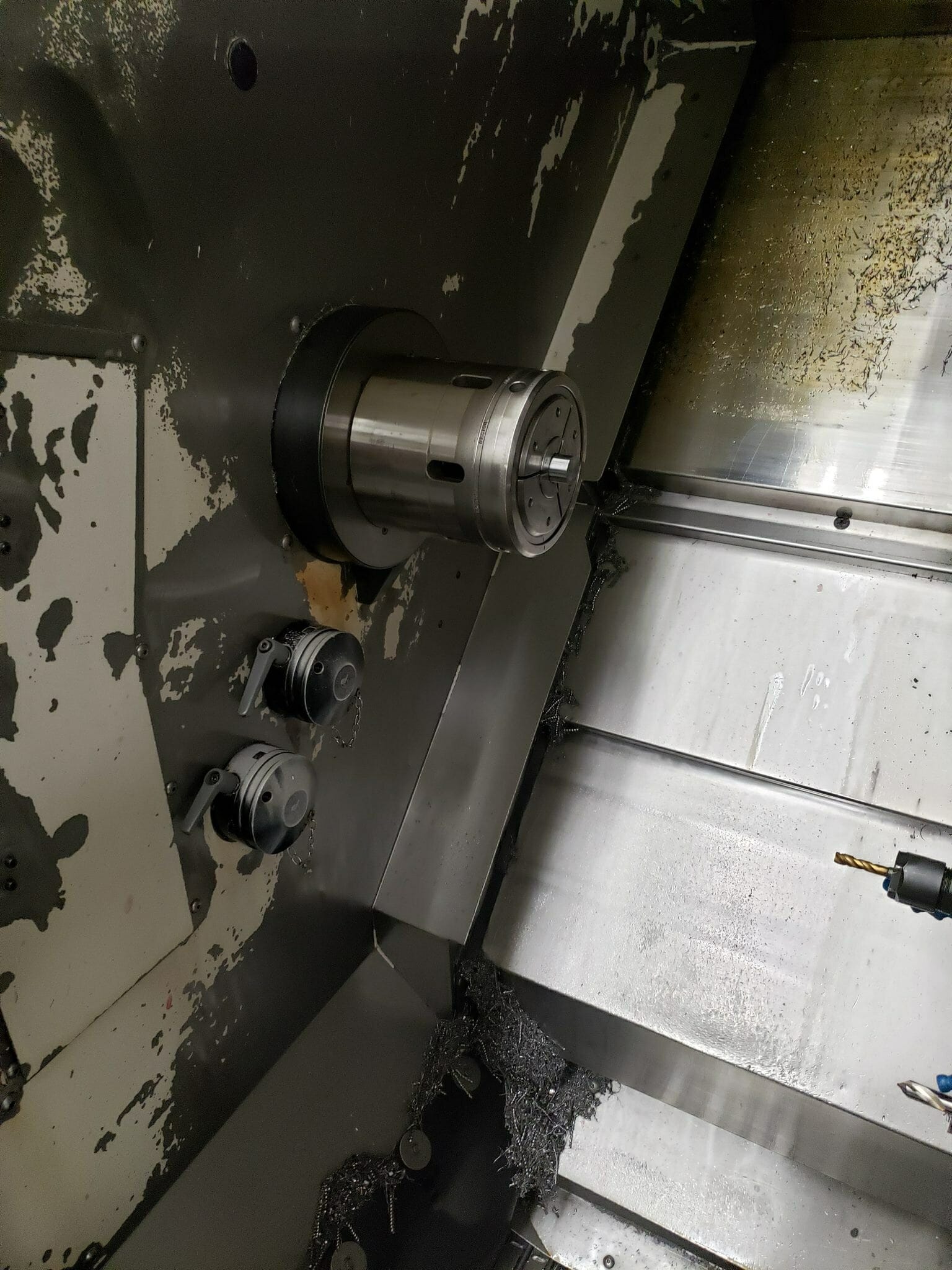

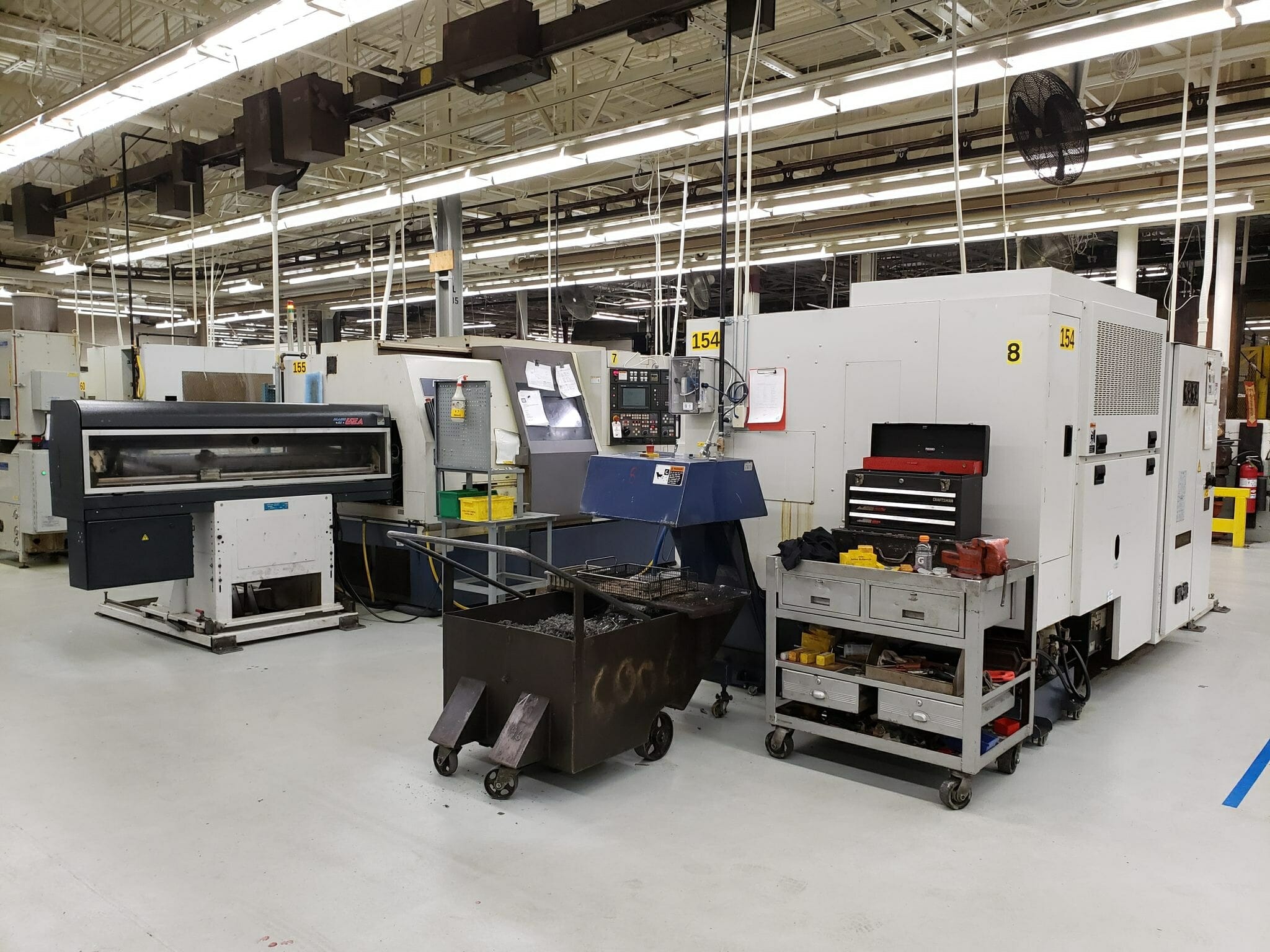

• Year: 1999
• Model: ZL-150MC
• Spindle Speed: 60-5,000 rpm
• Chuck Diameters: 200 mm ( 160mm)
• Travel Axis X: 235 (195+40) mm
• Travel Axis Z: 500 mm
• Max. Diameter:  440 mm
• Spindle hole: 56 mm
• Hole bar diameter: 46 mm
• Turrets: 2
• Rapid: 30 mt /min
• Automatic Tailstock
• Number of tools: 12 + 12 (Dual Turrents)
• Axis C – Live Tool Drive: Yes
• Time change tools: 0.7 sec
• Power kW: 22 KW
• Machine Weight: 6,500 Kg (14,330lbs not including bar feeder)
• Machine Sizes: ( L x L x H) 1,900mm x 1,500mm x 1,700mm (75″ x 60″ x 67″) not including bar feed dimensions

All information is subject to inspection.

No tooling is included with the machines.

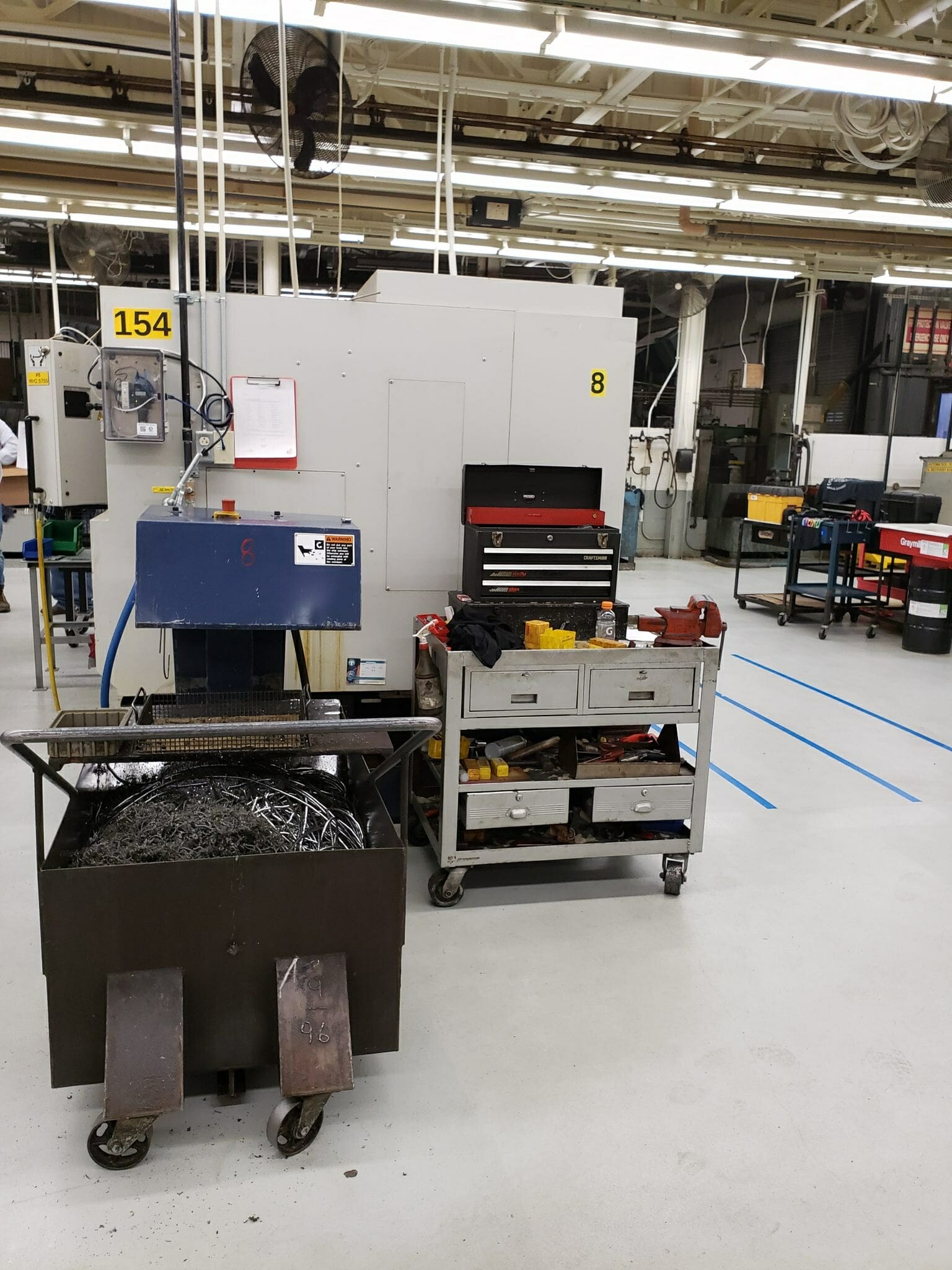

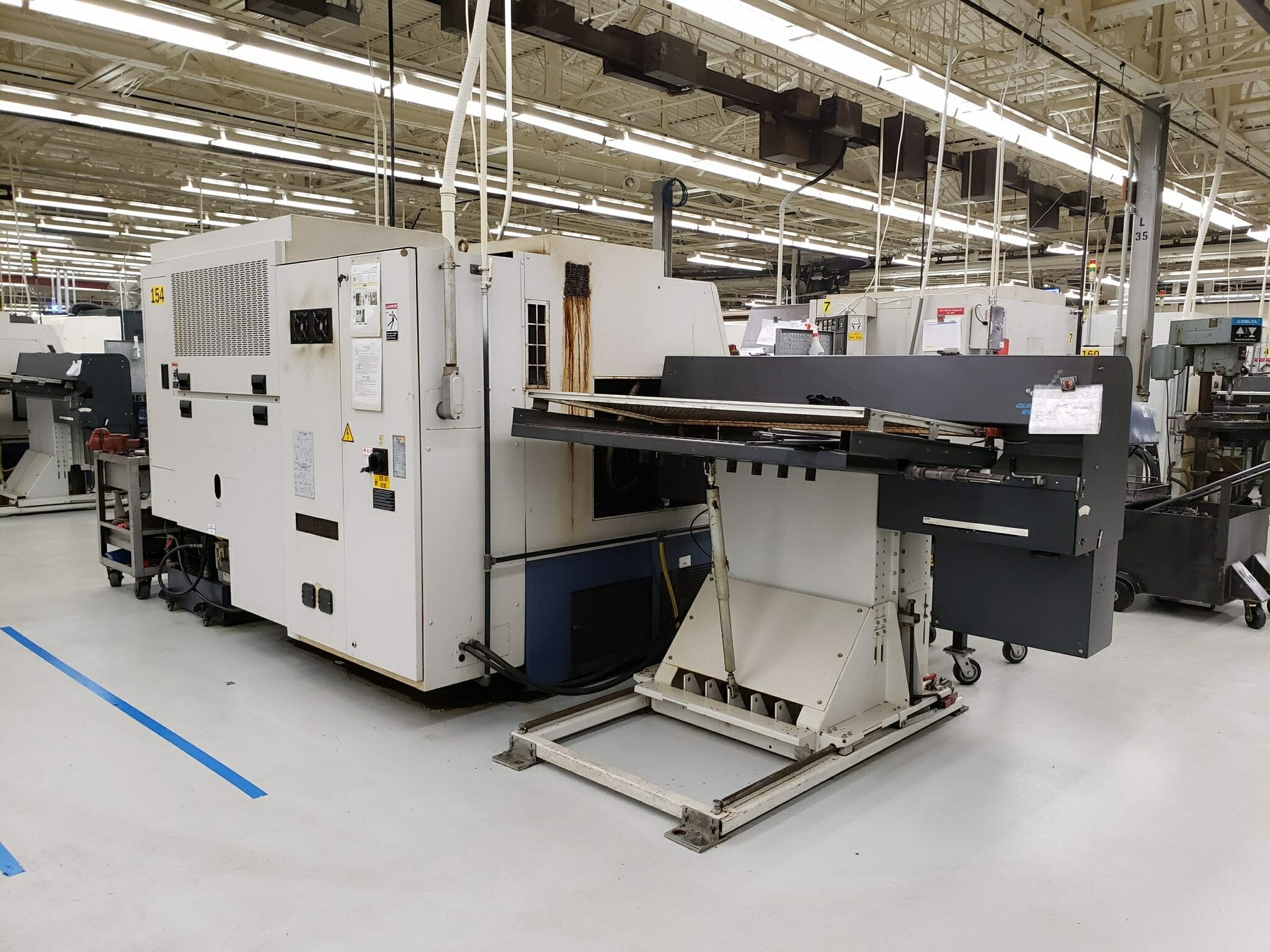

The post 1999 Mori Seiki ZL-150MC CNC Lathe Turning Center For Sale appeared first on Affordable Machinery.

• Year: 1999
• Model: SL-250BSMC/500
• Run Time: 14,550 hours
• Swing Over Bed / Cross Slide:  26.8″/ 22.6″
• Maximum Turning Diameter: 15.3″
• Standard Turning Diameter: 8.27”
• Distance Between Centers: 22.6″
• Max Turning Length: 19.10″
• Spindle Speeds: 35-3500
• Spindle Motor:  20/15
• Spindle Nose: A2-8
• Min. Spindle Index Angle: .001”
• Spindle Bore:  3.3″
• Max Bar Size:  2.9″
• Turret Stations: 10
• Turret Index Time:  0.2 Sec
• Square Tool Capacity: 1″
• Boring Bar Capacity: 2.0″
• Axis Travel:
  • Z- Axis:  19.5″
  • X- Axis:  6.3″
• Live Milling: 10 Positions
• Live Milling RPM: 3,000RPM
• Live Milling HP: 8/5.8 HP
• Rapid Travels: X and Z : 708/944.9 IPM
• Tail Stock Taper: MT # 5
• Tail Stock Travel: 4.7”
• Machine Dimensions: 93.7″ x 69.3″ x 74.2″ high
• Power: 220v/3ph

Equipped With:

• MORI SEIKI-Fanuc MSC-501 (Fanuc 18i) CNC CONTROL
• RS-232C PORT INTERFACE FOR DNC OPERATION
• IN-MACHINE TOOL PRE-SETTER
• TAILSTOCK
• 20 HP SPINDLE
• STANDARD COOLANT SYSTEM WITH TANK & PUMP
• MAYFRAN CHIP CONVEYOR
• COLLET CHUCK INCLUDED (WITH SOME COLLETS)

Note:

• Does Not Include Bar Feeder
• Machine was recently removed from service on 2.10.17 and runs good

Click Here For Updates on Machines & Equipment As They Become Available

The post Mori Seiki SL-250 CNC Lathe Turning Center For Sale appeared first on Affordable Machinery.

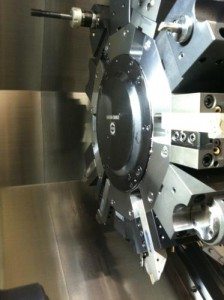

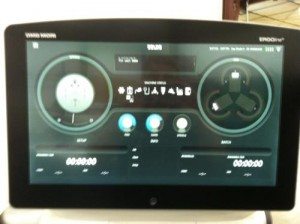

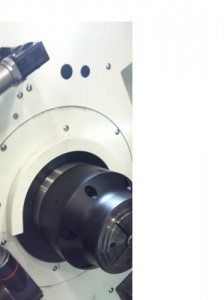

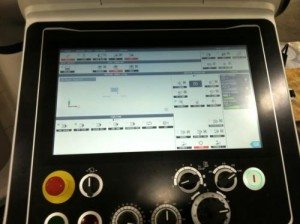

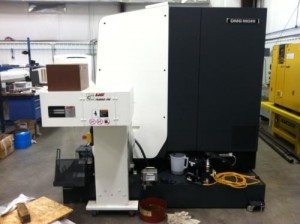

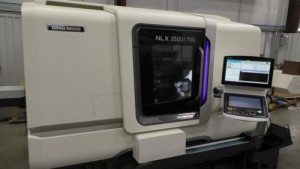

• Year 2014
• Model: NLX2500/700
• Main Spindle
• Sub-Spindle
• Y-Axis

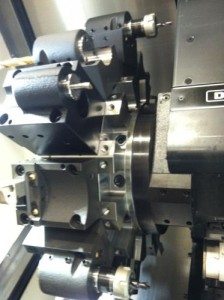

• Live Tooling

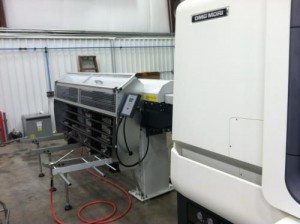

• LNS Quick Six Barfeed

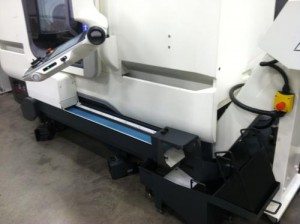

• Part Catcher
• Part Conveyor
• Chip Conveyor
• Additional 6 Tool Blocks

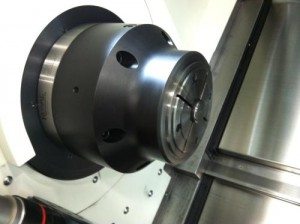

• Royal S-26 Collet on Main Spindle
• 3 Different Size LNS Barfeed Liners (1″, 1-1/4″, 1-1/2″)
• 3 Matching DMG Mori Drawtube Liners (2-Piece Heat-Treated)

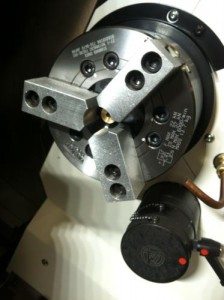

• 10″ Kitagawa 3-Jaw

Click Here For Updates on Machines & Equipment As They Become Available

The post DMG Mori NLX2500-700 Turning Center For Sale – SOLD appeared first on Affordable Machinery.

Click Here For Updates on Machines & Equipment As They Become Available

The post Used Mori Seiki CNC Turning Center Lathe For Sale SL25MC500 appeared first on Affordable Machinery.

Mori Seiki CNC Lathe Turning Center – Dual Turret
Year 1988
Between Centers 19.6″
Swing over cross slide 13.8″
Spindle Speed 35-3,500RPM
Hole Through Spindle: 3.1″
Bar Capacity 2.5″
No. of Tools: Upper 12, Lower 8
Spindle: A2-6
Horsepower (30 Min.): 30HP
Dia. of Quill in Tailstock: 3.3″
Tailstock Quill Taper #3MT
Equiped with:
Fanuc CNC Control
12 Station Upper Turret
8 Station Lower Turret
Live Tailstock
Chip Conveyor



The post Mori Seiki ZL-25MC/500 Dual Turret CNC Lathe Turning Center appeared first on Affordable Machinery.
