FEATURES AND BENEFITS
1
2

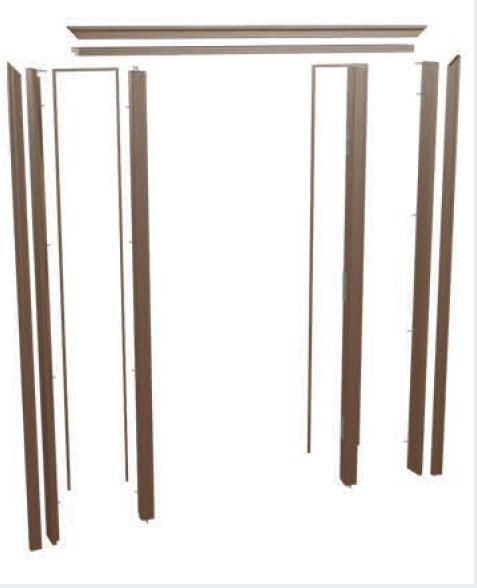

DOOR FRAME PARTS
3
HIDDEN
FASTENER SYSTEM
FASTENER SYSTEM
4
WARRANTY
COMPOSITE DOOR FRAME VIDEO
Protection from damaging effects of moisture
- Eliminates risk of rot and wood-
ingesting insects - Durable composite material is virtually
maintenance free - Does not absorb moisture, resists mold,
mildew and fungus

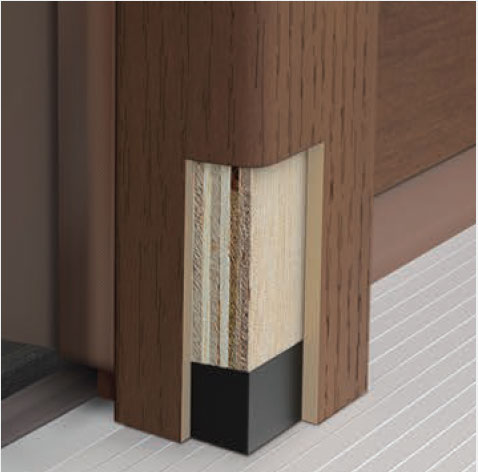

Reinforced mullions with
composite-capped bottom
-
Provide additional structural support and
stability - Reinforced with co-extruded LVL core
-
Composite-capped bottom eliminates risk
of water absorption to maintain rot-free
composite exterior
Hidden fastener system
-
Screw plugs match frame material and finish,
and conceal external fasteners -
Jamb screw plugs allow jamb to be installed
with screws through thickest part for better
aesthetics and long-term performance
Available textures
Buff Grained
-
Universal wood grain to complement wide
range of grain species -
Stain or paint to complement the entry -
no sanding or priming required
White Smooth
- Matte finish similar to painted wood
-
Protective layer with UV inhibitors to help
resist yellowing and fading - Ready to install as is - no painting required
-
Stain or paint to complement entry - no
sanding or priming required
Finish Options
- Can be painted or stained any color to complement the door unit
-
Composite door frames pair well with
PrismaGuardTM finish or Same-Day®
Stain from Therma-Tru

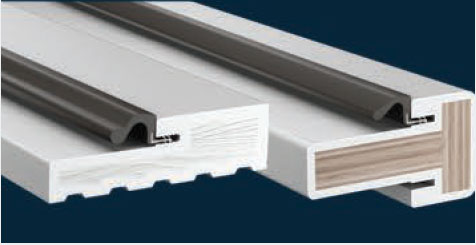

Pre-inserted weatherstrip option
-
Select white smooth composite jambs
and mullions - Pre-matched for hinges and locks
-
Available with convenient, pre-inserted
weatherstrip for quicker install
-

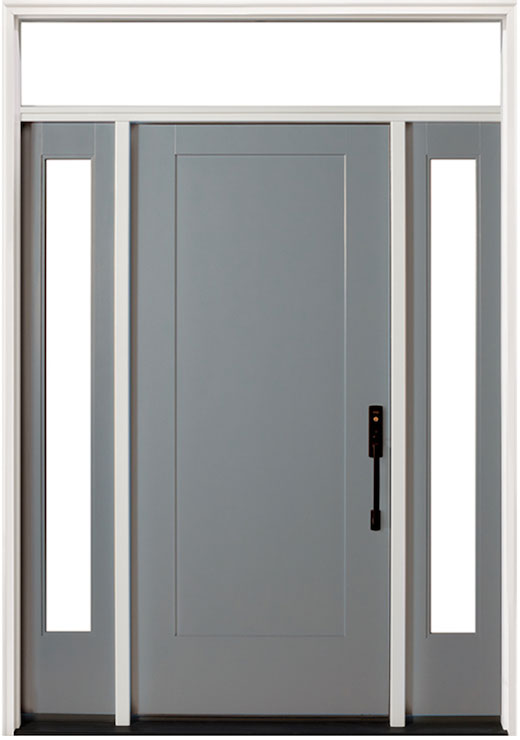

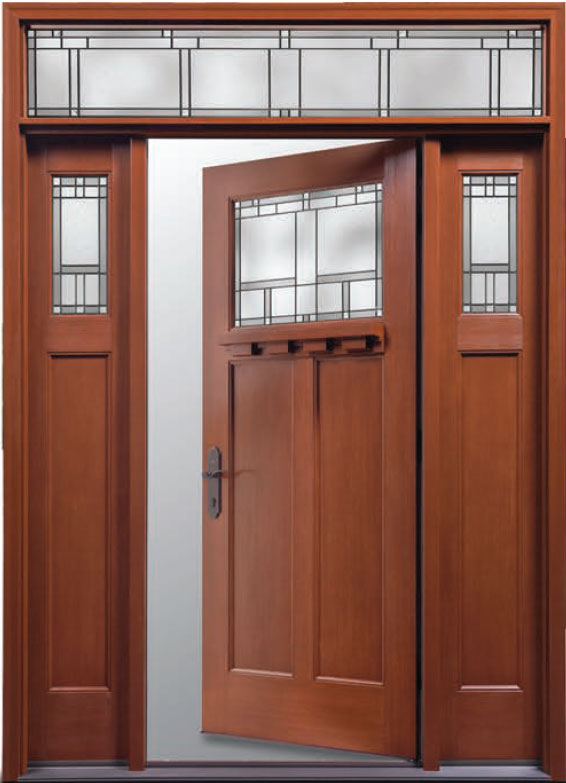

Engineered specifically for Therma-Tru
products, Therma-Tru's composite door
frame is designed to deliver extra protection
from the damaging effects of moisture for
customer peace of mind.
Interior
Exterior
Interior Trim
7/16'' x 5/16'' Cove Mould
Jambs
4-1/8''
4-9/16''
5-1/4''
6-9/16''
7-1/4''
Pre-inserted weatherstrip option
available for select white smooth
jambs and mullions pre-machined
for hinges and locks.
Mullions
All mullions feature a reinfored
co-extruded LVL core with a
composite-capped bottom.
2'' Entry Narrow
2-1/2'' Entry wide
2'' Patio Narrow
2-1/2'' Patio Wide
Pre-inserted weatherstrip option
available for select white smooth
jambs and mullions pre-machined
for hinges and locks.
Exterior Trim
2'' Brickmould WM180
1-5/8'' Florida Brickmould WM176
3-1/2'' x 1'' Flat Casing
Transom Sills (Exterior)
4-9/16''
6-9/16''
Installation for a seamless, aesthetic finish

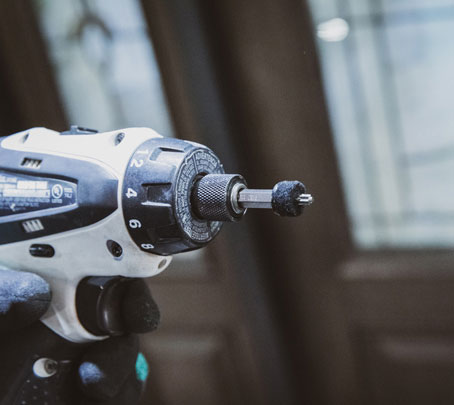

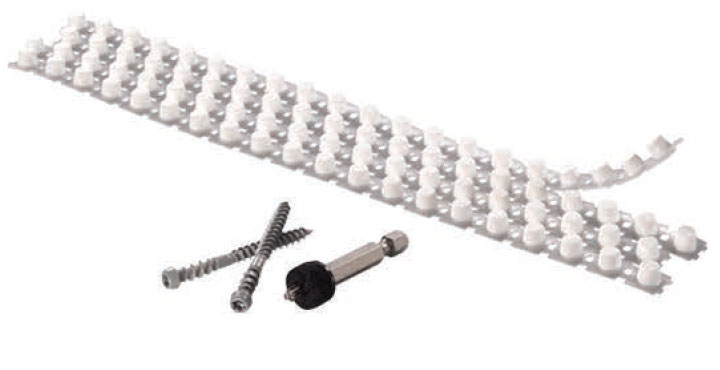

Fasteners, setting Tool &
Screw Plug Covers
Screw plugs are available on
a collared strip for ease
of
installation and finishing.
Installation for a seamless, aesthetic finish

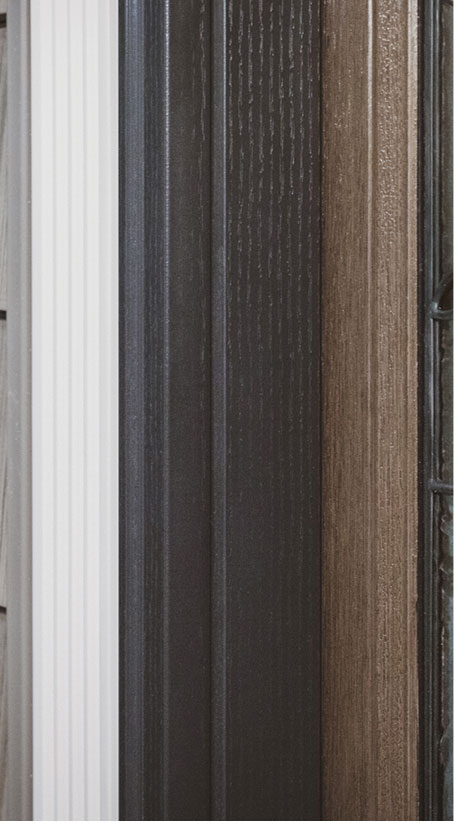

STEP 1
Start with a smooth or
wood-grained Therma-Tru
composite jamb featuring
Tru-Guard composite
technology.

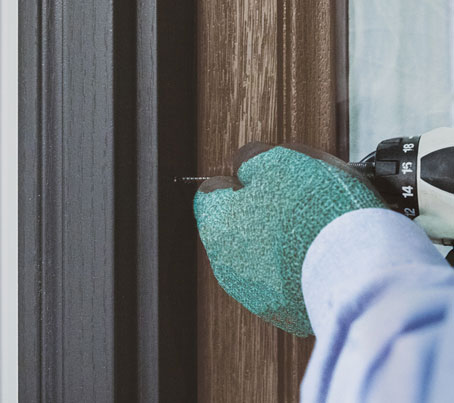

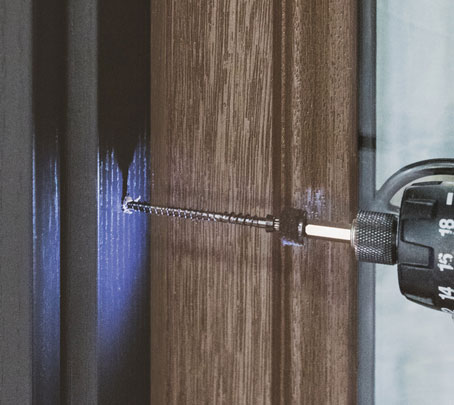

STEP 2
Using the setting tool, drill
the fastener through the
thickest part of the jamb for
better long-term performance.

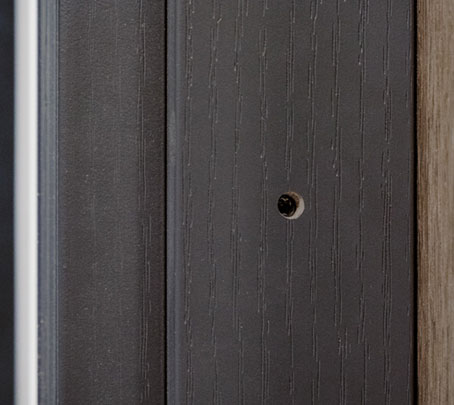

STEP 3
Continue driving the fastener
into the jamb at a steady
speed until the setting tool
disengages.

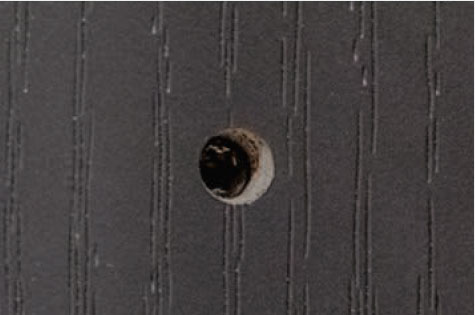

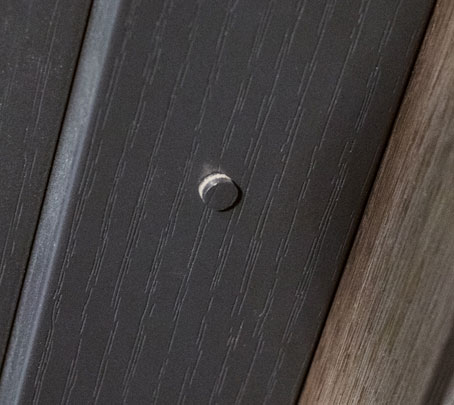

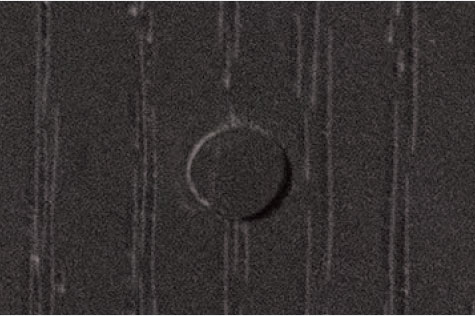

STEP 4
Place the finished screw plug
into the cored hole of the jamb.

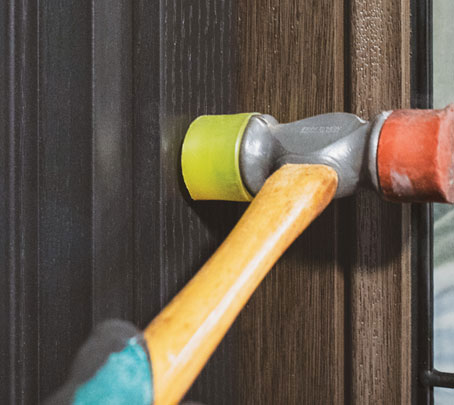

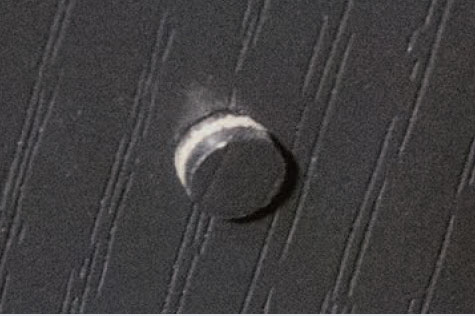

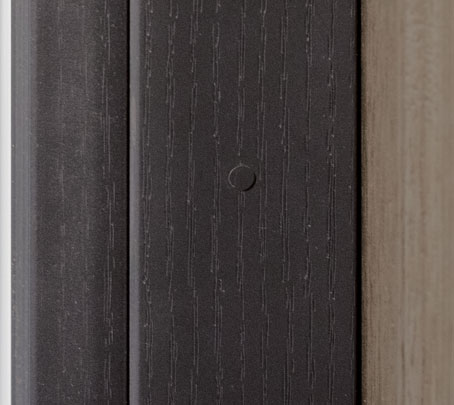

STEP 5
Gently tap the screw plug into
the cored hole until the plug is
flush with the jamb surface.
Screw plugs are made of the
same material as the jamb,
helping them to blend in and
hide unsightly screws.
Included in the Therma-Tru fiberglass door system Lifetime Limited Warranty.
10-year Transferable
Full-System Rider
Available for Therma-Tru door systems with full-system Therma-Tru components and composite door frame.
Frame-only lifetime limited warranty option also available.
See your Therma-Tru seller or visit www.thermatru.com
for details on available product sizes and options, limited warranties
and exclusions, and Rider.
View details about PrismaGuard and
Same-Day Stain Composite Door
Frame warranty here.
