Replacement Door Checklist

Look for these characteristics when recommending a replacement entry door:

  • The door frame is rotting, deteriorating or cracked.
  • There are air gaps letting energy escape.
  • The door does not open or close properly.
  • The door is warped, cracked or dented.
  • The subfloor under the door is rotting or deteriorating.
  • The glass in the door is collecting moisture.
  • The door is not sealing properly and water is entering the home.

How to Measure for a Door

  1. Door Width
  2. Door Height
  3. Door Depth

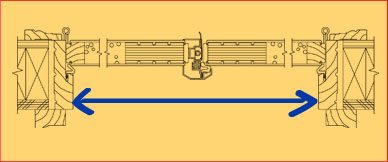

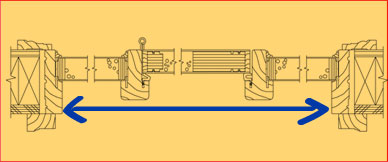

If you could peel back the siding, measuring would be easy. Our goal is to find the dimensions of the rough opening, which is jack stud to jack stud, header to floor, and wall depth.

Continue

Click to Begin

Measuring the correct width requires a jamb-to-jamb measurement. Click and drag the measuring tape to the jamb.

You have located the jamb. Next

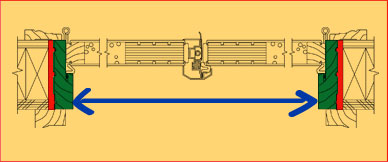

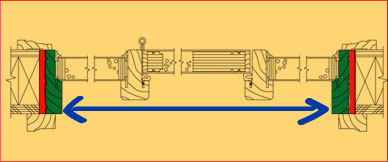

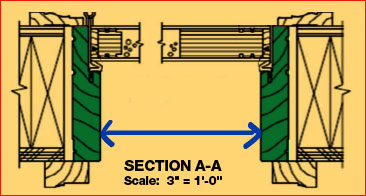

The width measurement is from the inside of one jamb to the other. Enter the correct measurement in the worksheet on the right.

Click to Begin

Measuring the correct height requires a bottom sill to top rail measurement. Click and drag the measuring tape to the sill.

You have located the sill. Next

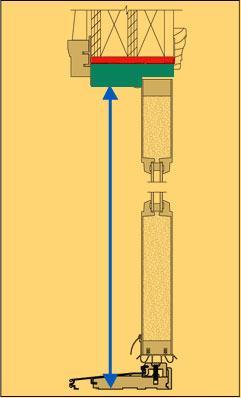

The height measurement is from the bottom sill to the top rail. Enter the correct measurement in the worksheet on the right.

Click to Begin

Measuring the correct depth requires a door slab to brick mold measurement. Click and drag the measuring tape to the door slab.

You have located the door slab. Next

The depth measurement is from the door slab to the brick mold. Enter the correct measurement in the worksheet on the right.

If you could peel back the siding, measuring would be easy. Our goal is to find the dimensions of the rough opening, which is jack stud to jack stud, header to floor, and wall depth.

Continue

Click to Begin

Measuring the correct width requires a jamb-to-jamb measurement. Click and drag the measuring tape to the jamb.

You have located the jamb. Next

The width measurement is from the inside of one jamb to the other. Enter the correct measurement in the worksheet on the right.

Click to Begin

Measuring the correct height requires a bottom sill to top rail measurement. Click and drag the measuring tape to the sill.

You have located the sill. Next

The height measurement is from the bottom sill to the top rail. Enter the correct measurement in the worksheet on the right.

Click to Begin

Measuring the correct depth requires a door slab to brick mold measurement. Click and drag the measuring tape to the door slab.

You have located the door slab. Next

The depth measurement is from the door slab to the brick mold. Enter the correct measurement in the worksheet on the right.

If you could peel back the siding, measuring would be easy. Our goal is to find the dimensions of the rough opening, which is jack stud to jack stud, header to floor, and wall depth.

Continue

Click to Begin

Measuring the correct width requires a jamb-to-jamb measurement. Click and drag the measuring tape to the jamb.

You have located the jamb. Next

The width measurement is from the inside of one jamb to the other. Enter the correct measurement in the worksheet on the right.

Click to Begin

Measuring the correct height requires a bottom sill to top rail measurement. Click and drag the measuring tape to the sill.

You have located the sill. Next

The height measurement is from the bottom sill to the top rail. Enter the correct measurement in the worksheet on the right.

Click to Begin

Measuring the correct depth requires a door slab to brick mold measurement. Click and drag the measuring tape to the door slab.

You have located the door slab. Next

The depth measurement is from the door slab to the brick mold. Enter the correct measurement in the worksheet on the right.

The Rough Opening
The Measurement Goal
Start
Entry Door Worksheet
  1. Width
    1. enter
    2. Add 2 1/2" (Frames generally measure 1 1/4" thick each x2)
    3. Estimated unit size:
    4. Estimated rough opening add 3/4 to unit width measurement
    5. Estimated rough opening
  2. Height
    1. enter
    2. Add 1-1/4" (frame members typically measure 1-1/4")
    3. Estimated unit size:
    4. Estimated rough opening add 1/2" to unit height measurement
    5. Estimated rough opening
  3. Depth
    1. enter
    2. Add 1-3/4" (door slab depth)
    3. Estimated unit size:
Next
Exterior door worksheet & dimensional data:

This measurement is based on an inswing door application. For outswing doors, measure from the door slab to the interior trim.

Take the Quiz
