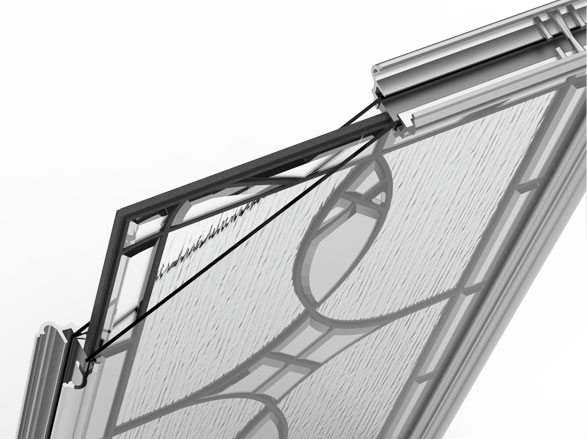

TRIPLE-PANE CONSTRUCTION
All triple-pane decorative, privacy and textured glass panels are enclosed between two panes of tempered glass, offering superior quality, sound dampening and thermal performance.
GLAZING
A glazing compound used to seal the lite frame to the glass.
![[Detail Image]](images/education-center/glass-101/construction_backbedding_details.png)
PERIMETER SEAL
A compound that forms a seal between the perimeter of the lite frame and the door.
SPACER SYSTEM
Runs along the perimeter edge and helps keep the three panes of glass spaced evenly, maintaining the units structural integrity. The spacer system also seals the unit from moisture.
DECORATIVE GLASS PANEL
The decorative glass panel can incorporate clear or colored glass, varying glass textures, bevels and caming to create unique glass designs with a range of opacity levels. The panel’s premium look and quality comes from being handcrafted and built with all-glass bevels.
![[Detail Image]](images/education-center/glass-101/construction_decorative-glass_details.png)
TEMPERED GLASS
Therma-Tru uses two panes of tempered glass that have been strengthened by heat processing in the construction of its triple-pane glass. The benefits of using tempered glass is that it is stronger than annealed glass and when broken breaks into small pieces for enhanced safety.
![[Detail Image]](images/education-center/glass-101/Homeward_Camimg.jpg)

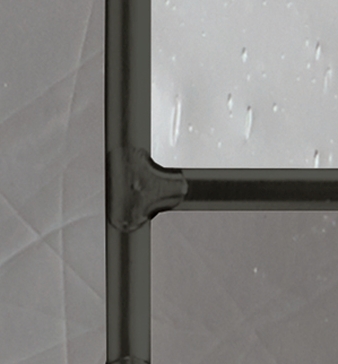

CAMING
Formed metal stripping used between cut pieces of glass to assemble the pieces into a decorative panel. Available in black nickel, brushed nickel, and brass.
![[Detail Image]](images/education-center/glass-101/Homeward_bevel.jpg)

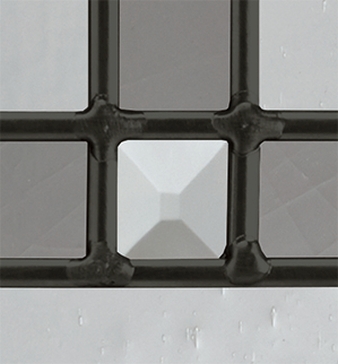

BEVEL
A glass plate with edges ground and polished to an angle other than 90 degrees to create a prism-like effect.

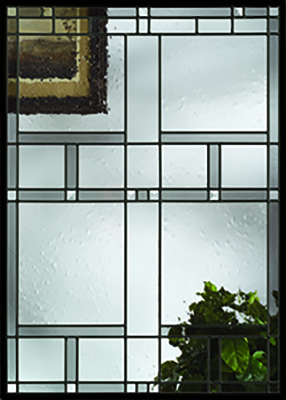

FIELD GLASS
Flat pieces of clear, colored or textured glass used in the overall pattern to create distinctive designs with a wide range of opacity levels.
![[Detail Image]](images/Borrassa_2542_WI.png)

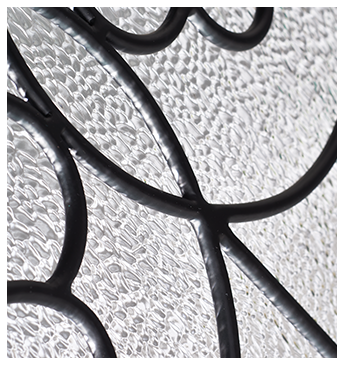

WROUGHT IRON
Wrought iron grille that is inserted between two pieces of tempered glass.
Enhance the beauty and decorative appeal of entry and patio doors with a variety of divided lite choices.
|
|
|||||||||||||||||

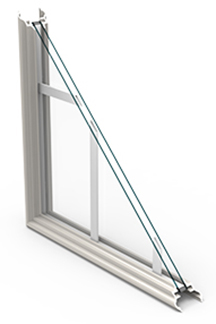

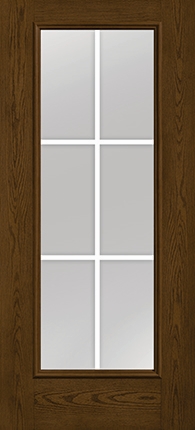

GRILLES BETWEEN GLASS• Thermally sealed between two panels of tempered glass. • Smooth glass surface is easy to clean. • Choose contour bars for a traditional look or flat bars for a contemporary appeal. |
|
|||||||||||||||||

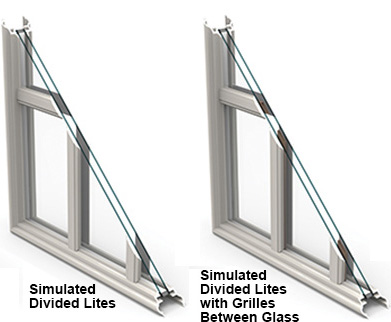

SIMULATED DIVIDED LITES
• SDL bars are adhered to the interior and exterior of tempered glass.
• Wood-grained or smooth textured SDLs can be stained or painted.
• Durable composite material is suitable for use in a variety of climates.
• SDL bars layered over GBGs create a more authentic divided lite look.

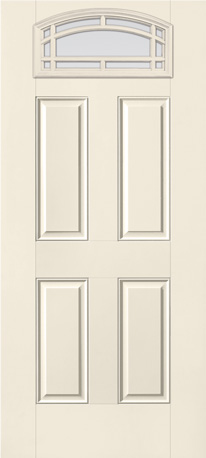

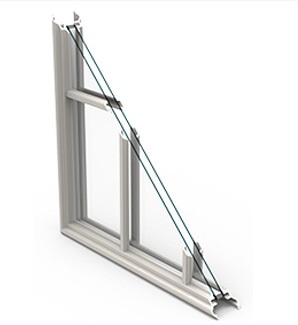

FIXED GRILLES
• Molded as part of the lite frame on the interior and exterior panes of tempered safety glass.
• Can be stained or painted.

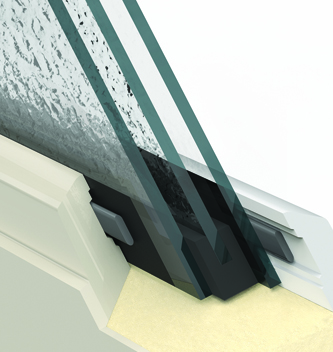

ENLITEN™ FLUSH-GLAZED DESIGNS
During manufacturing, double- or triple-pane glass is built directly into the door. This design eliminates the need for a lite frame and screw-plugs, achieving a seamless, consistent finish.
• Up to 16% increase in visible glass area compared to traditional lip-lite frames.
• Warranty riders for peace of mind during construction and installation and for homeowners.
LITE FRAME
The lite frame securely attaches glass to the door and provides a seal to help prevent water and air infiltration.

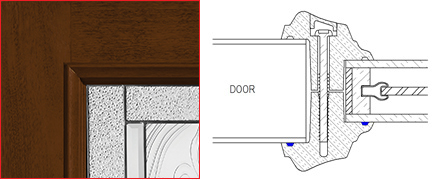

Classic Craft Frame
• Species-specific grained fiberglass lite frame.
• Seamlessly blends with the rest of the entryway for a premium aesthetic.

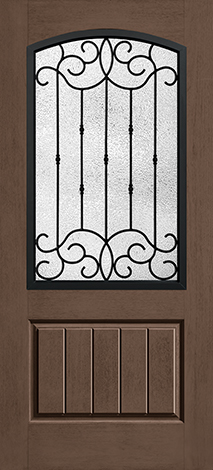

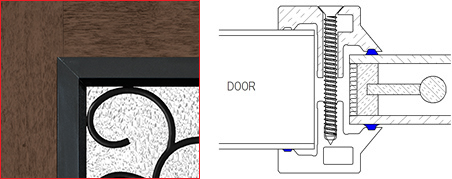

Wrought Iron Frame
• Complements the wrought iron glass design for a cohesive appearance.
• Features a smooth, flat profile.

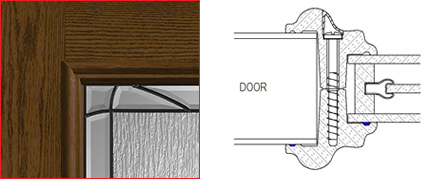

Fiber-Classic and
Smooth-Star BTS Scrolled Frame
• Attractive scrolled profile.
• Can be stained or painted to match the entry door.
Smooth-Star and Pulse
Flat Lite Frame
• Lower profile with no corner seems for a sleek and modern aesthetic.
• Heat and fade resistant frame material.

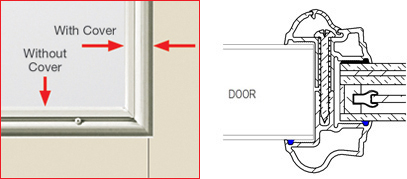

Impact Lip-Lite Frame
• Features a durable aluminum construction.
• Attractive scrolled profile and a screw channel cover helps to hide unsightly screws.
