The application sends text to a website via UART or USB.

You can see the text that was entered by going to the address:

M2M_main.c

• Send to Process 1.

M2M_proc1.c

• Set the variable 'APN' according to the network provider (for example: INTERNETG).

The APN must be set according to the SIM card network provider in order to connect to the internet.

• Set the variable 'SERVER' to the AppZone server address (APPZONE.TELIT.COM).

• Open USB or UART.

• Call the function 'get_IP'.

The function activates PDP context and gets the IP from the network.

• Set USB or UART callback.

After setting the callback, the function 'hw_usb_read_cb' (or 'hw_uart_read_cb') will be called each time data is transferred over USB or UART.

Wait for data to be sent over USB or UART.

• Gather the data that is received over USB or UART and wait until the 'Enter' key is entered.

When the 'Enter' key is entered, call the function 'send_data'.

• Call 'create_socket' function

The function creates a TCP socket that will be used to send data to the servers.

• Call 'create_socket' function.

The function sets the socket port (80 for HTTP) and the server Address (APPZONE.TELIT.COM).

Then, it connects the socket.

• Send HTTP GET request to the server with the string sent over USB or UART.

The HTTP GET request format is as follows:

GET /Demo/GETserver/report.php?text=%s HTTP/1.1\r\n

Host: %s\r\n

\r\n\r\n\r\n\r\n

• Read and print the results from the server.

The following figures provide an example for sending information using UART to the server:

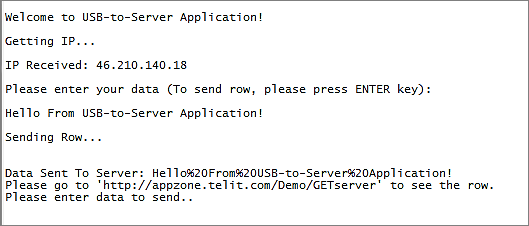

The following figures provide an example for sending information using USB to the server:
