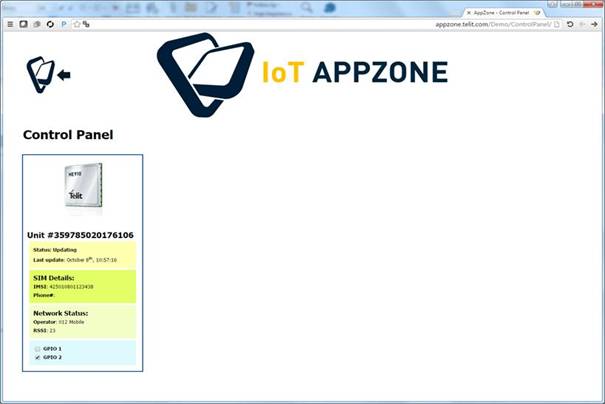

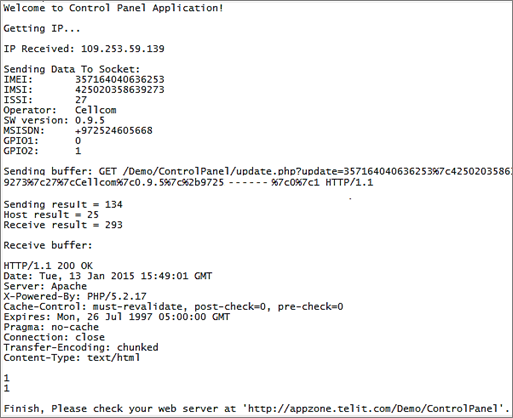

The application displays the module‘s information in the terminal and sends it to a website, where the information is presented.

You can see the module's information by going to this address:

M2M_main.c

• Send to Process 1

M2M_proc1.c

• Set the variable 'TCP_SERVER_PORT' to 80 (HTTP port).

• Set the variable 'GPRS_APN' according to the network provider (for example: INTERNETG).

The APN must be set according to the SIM card network provider in order to connect to the internet.

• Set the variable 'SERVER' to the AppZone server address (APPZONE.TELIT.COM).

• Open USB/UART

• Call the function 'get_IP'

The function activates PDP context and gets IP from the network

• Call the function 'socketProcess'

• Create TCP socket

• Set the socket port (80 for HTTP) and server address (APPZONE.TELIT.COM)

• Connect the socket.

• Call the function 'UpdateSendString'

The function gets the module's information (IMEI, FW version, signal level, GPIO, etc.) and prepare the string to be sent.

• Send HTTP GET request to the server with the prepared string

The HTTP GET request format is as follows:

GET /Demo/ControlPanel/update.php?update=%s HTTP/1.1\r\n

Host: %s\r\n

\r\n\r\n\r\n\r\n

• Close the socket
