Navigation:  Job Editor Menu > Setup > Layers Table

Displays all layer properties for the active design.

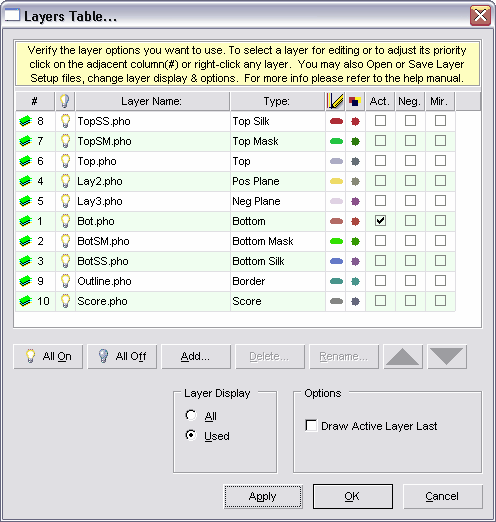

Screen capture of Layers Table



#

DFM Now! Layer Number



Visibility (bulb icon):

Determine if Objects on the layer are visible.

If the layer is visible, the icon used is 'bulb on'.

If the layer is not visible, the icon used is 'bulb off'



Name:

Name of the layer.



Layer Type



Draw Color:

Traces and Polygons on the associated layer will display that color.



Flash Color

Flashes on the associated layer will display that color.



Act.

Active Layer used when adding objects (ie. Polygons, Flashes, etc)



Neg.

Negative Polarity.  Assign a negative polarity on output for this layer.



Mirr.

Mirror.  Assign a mirror attribute for this layer.  Mirror will take effect on output.



Arrow Up:

Controls Layer Stackup.  This feature allows you to control the layer stackup by moving the layer up to the top of the stack. This button remains de-active until a single layer is selected.  To select a layer click on the layer icon (located on the leftmost side).



Arrow Down:

Controls Layer Stackup.  This feature allows you to control the layer stackup by moving the layer down to the bottom of the stack. This button remains de-active until a single layer is selected.  To select a layer click on the layer icon (located on the leftmost side).
