Editing a netlist.



Note: To edit Nets requires that you extract a netlist before proceeding.



Command Sequence

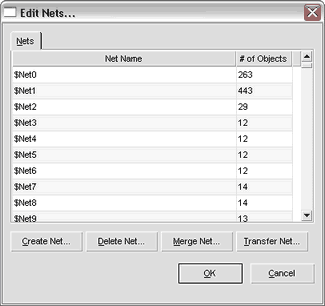

1. Select menu: Tools | Nets  | Edit Nets...





Features:

Create Net - Add a new net to the job.

Delete Net - Remove Net from job.

Merge Net - Combine Nets

Transfer Net - Copy contents from one net to another.
