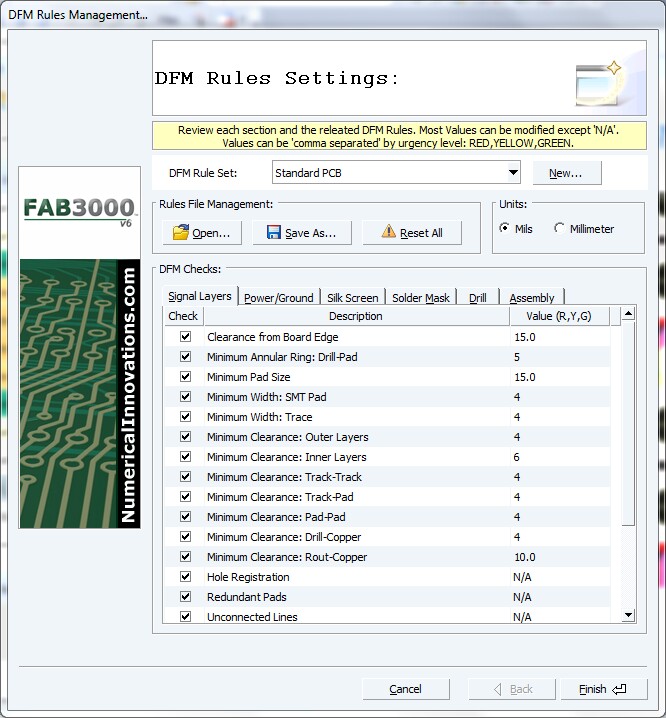

Manage DFM Rules.
Note: Uncheck any DFM Rule to disable it.
Note: Units can be toggled between Mils (English) and Millimeter (metric).
You can assign your required DFM Rules (menu: Tools | DFM | DFM Rules...) and save to a file. All DFM Rule files are actually stored as external files, and located in the local FAB 3000 DFM folder (example: C:\Numerical Innovations\FAB3000v6\DFM ). To share with colleagues, simply give them a copy of the DFM Rules FILE (*.DRF) and either have them place that DRF file into their DFM folder or have them start FAB 3000 and go to the DFM Rules dialog (menu: Tools | DFM | DFM Rules...), then press button "Open..." select the file and FAB 3000 will automatically place a copy in the DFM folder.
