Navigation:  Job Editor Menu > Edit > Polar Array

This command arrays the selection by a specified center point and angle to fill.











Polar Array Options:

Method:                Total number of items and Angle to fill

                 Total number of items and Angle between items

                 Angle to fill and angle between items

Total # of items:        Number of copies.

Angle to fill:                Total angle (in degrees) for polar array

Angle between items: Individual angle between each item.





Command Sequence



1. Select Objects.



Note: For more information about object selection see Viewing & Selection Basics



2. Select menu: Edit  | Array | Polar.



3. Specify Center Point.



Note: Pick a point in the editor, or enter coordinates in command window

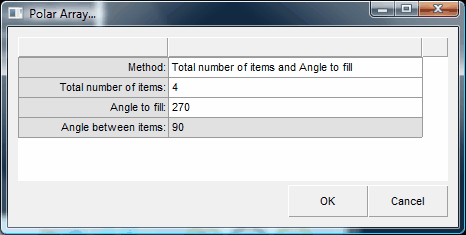

The Polar Array dialog box will appear.



4. Choose the Method you want to use.



5. Enter in the appropriate options.



6. Select OK to begin.



7. If the command is incorrect, you may Undo.
