General |

|
|
General |
|

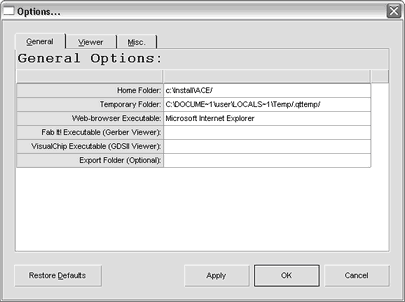

The following are the general settings and preferences.
Home Folder:
The location of the ACE executable file. Many necessary files are located relative to the location of the ACE executable.
Temporary Folder:
The location of the temporary files used by ACE during conversions. Please make sure this folder has Write permissions, and keep it local to your machine (ie. not over a network).
Web-Browser Executable:
Use this browser to display any HTML or XML files.
Fab It! Executable:
The location of Fab It! (Optional). Allows you to view gerbers directly from ACE by selecting the "View Gerbers with Fab It!" button (located on the Finish Page)
Visual Chip Executable:
The location of Visual Chip(Optional). Allows you to view GDSII & ACE directly from ACE by selecting the "View files with Visual Chip" button (located on the Finish Page)
Export Folder:
Optional. If you would like to have a defaulted folder where all exported files goto, you may define it here.
