INSTALLATION
WARNING:
To avoid serious or fatal injury on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag,
occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes
for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could
result in accidental airbag deployment.
1.

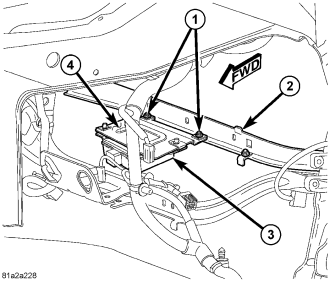

Position the intrusion module (3) and mounting bracket (4) under the instrument panel as a unit.
2.
Reconnect the instrument panel wire harness connector to the connector receptacle at the forward-facing of the module housing.
3.
Position the module mounting bracket to the lower instrument panel reinforcement (2).
4.
Install and tighten the two screws (1) that secure the mounting bracket to the lower instrument panel reinforcement. Tighten the screws to 8 Nm (71 in. lbs.).
5.
Reinstall the steering column opening cover onto the instrument panel.
(Refer to 23 - BODY/INSTRUMENT PANEL/STEERING COLUMN OPENING
COVER - INSTALLATION).
6.
Reconnect the battery negative cable.
