U1008-LIN 1 BUS

For a complete wiring diagram Refer to Section 8W

When Monitored:
Continuously while the VTSS is armed.
Set Condition:
If the Intrusion Transceiver Module detects incorrect voltage on the LIN Bus circuit.

Possible Causes

INTERMITTENT CONDITION

(D122) LIN BUS CIRCUIT SHORT TO BATTERY

(D122) LIN BUS CIRCUIT SHORT TO GROUND

INTRUSION SENSOR

INTRUSION TRANSCEIVER MODULE

Diagnostic Test

1. INTERMITTENT DTC

With the scan tool, erase the current Intrusion Transceiver Module DTC's.
Turn the ignition off.
Arm the VTSS and wait 1 minute.
Disarm the VTSS and turn the ignition on.
Using the scan tool, read the ITM DTCs.

Does the scan tool display the same DTC?

Yes

Go To 2

No

The condition that caused this symptom is currently not present. Inspect the related wiring harness for a possible intermittent condition. Look for any chafed, pierced, pinched or partially broken wires.
Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

2. DISCONNECT INTRUSION SENSOR AND RECHECK DTC

Disconnect each of the Intrusion Sensor connectors one at a time and recheck for DTC using the following steps.
With the scan tool, erase the current Intrusion Transceiver Module DTC's.
Turn the ignition off.
Arm the VTSS and wait 1 minute.
Disarm the VTSS and turn the ignition on.
Using the scan tool, read the ITM DTCs.

Does the scan tool display U1008-LIN 1 BUS?

Yes

Go To 3

No

Replace the Intrusion Sensor that sets the DTC in accordance with the service information.
Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

3. (D122) LIN BUS CIRCUIT SHORT TO BATTERY

Ensure all Intrusion Sensors are disconnected.
Disconnect the Intrusion Transceiver Module connector.

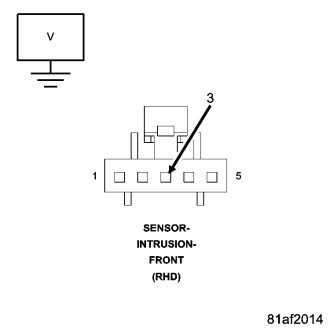

Measure the voltage of the (D122) LIN Bus circuit with the ignition switch Off and On.

Is there any voltage present?

Yes

Repair the (D122) LIN Bus circuit for a short to voltage.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

No

Go To 4

4. (D122) LIN BUS CIRCUIT SHORT TO GROUND

Turn the ignition Off.

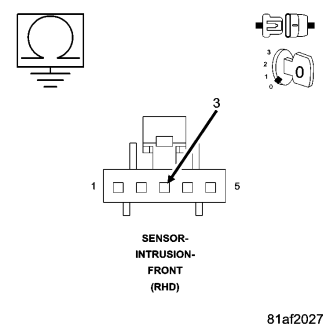

Measure the resistance between ground and the (D122) LIN Bus circuit.

Is the resistance above 1000 ohms?

Yes

Replace the Intrusion Transceiver Module in accordance with the Service Information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

No

Repair the (D122) LIN Bus circuit for a short to ground.
Perform BODY VERIFICATION TEST - 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
