SECOND ROW - RIGHT - FOUR DOOR

WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.

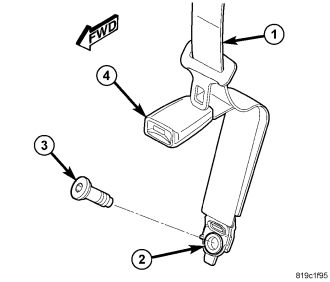

NOTE: The anchor plates for the right second row seat belt buckle (4) and the second row center seat belt anchor (1) are secured to each other by a soft metal grommet as an assembly aid during the manufacturing process and, once removed, the grommet does not require reinstallation.

1. Fold the 60 percent second row seat back flat for easiest access to the right second row seat belt buckle (4) and the second row center seat belt anchor (1) screw.
2. Remove the screw (3) that secures the right second row seat belt buckle anchor plate and the center second row seat belt anchor plate to the rear floor panel.
3. Remove the two anchor plates from the rear floor panel as a unit.
4. Using an appropriate drill or chisel, carefully remove the soft metal grommet (2) that secures the two anchor plates to each other.
5. Move the 60 percent second row seat back to the uptight position.
6. Disengage the right second row seat belt buckle unit from the elastic loop integral to the seat cushion trim cover and remove the buckle from the vehicle.
