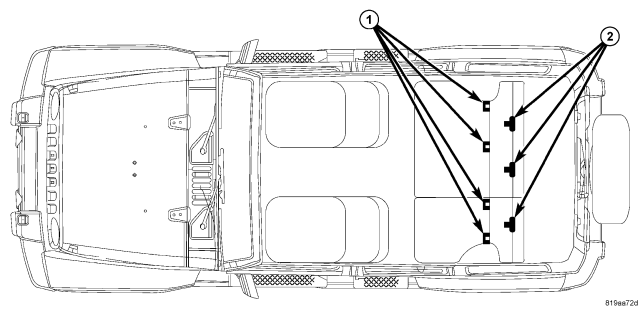

This vehicle is equipped with a Lower Anchors and Tether for CHildren, or LATCH child restraint anchorage system. The second row seats in these vehicles are equipped with a fixed-position child restraint upper tether anchor (2) for the two outboard seating positions and child restraint lower anchors (1) for the two outboard seating positions. Vehicles with four doors have an additional upper tether anchor for the center seating position.

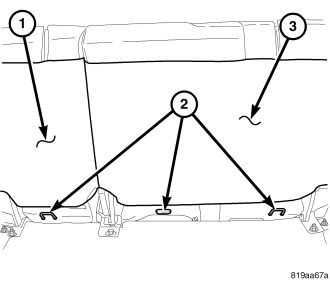

The upper tether anchors (2) are each integral to the second row seat cushion frames. One anchor is located on the 40 percent seat (1) and 2 are located on the 60 percent seat (3). These anchors are each constructed from a heavy-gauge steel wire loop that is securely welded to the seat cushion frames. The child restraint upper tether anchors cannot be adjusted or repaired and, if ineffective or damaged, they must be replaced as a unit with their respective second row seat cushion frames.

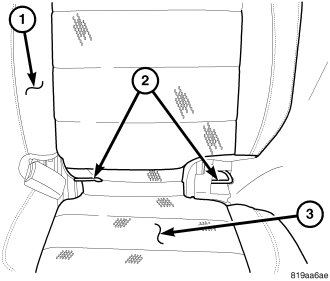

The right and left outboard lower anchors (2) are integral to the second row seat back hinges, which are secured to the rear floor panel. These anchors are each constructed from a short length of heavy-gauge steel wire that is securely welded to the outboard seat back hinges. The right and left inboard lower anchors are integral to the seat cushion frames. These anchors are each constructed from a heavy-gauge steel wire loop that is securely welded to the seat cushion frames. The anchors are located where the second row seat back (1) meets the seat cushion (3). The child restraint lower tether anchors cannot be adjusted or repaired and, if ineffective or damaged, they must be replaced as a unit with their respective second row seat hinge or child anchor brackets.
WARNING: To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler Mopar Parts Catalog.
