B1B87-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR PERFORMANCE

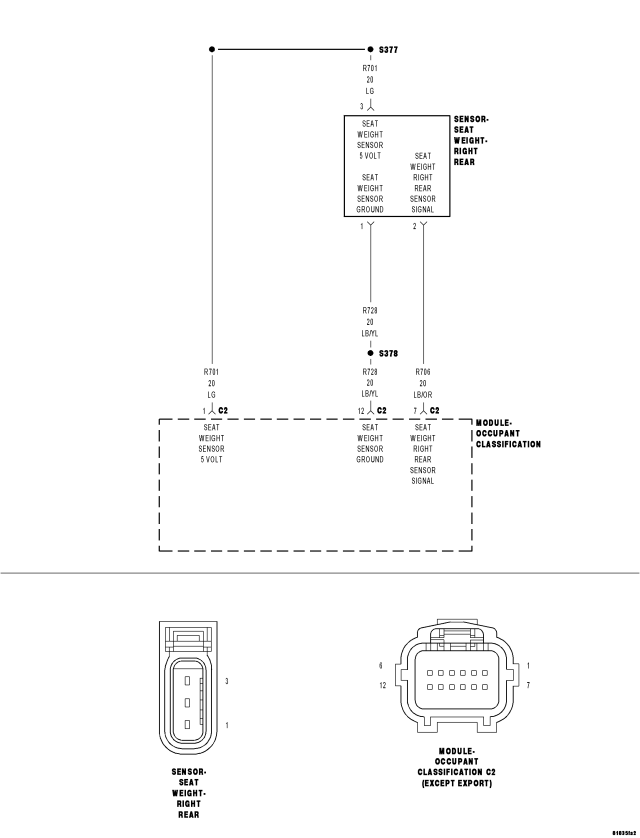

For a complete wiring diagram Refer to Section 8W.

When Monitored:
When CAN ignitions status is Run or SNA, during auto zero and while performing the Occupant Classification Module System Verification Test.
Set Condition:
During the occupant classification module system verification test: if the module detects that the sensor input is less than 1.4 volts or greater than 3.6 volts. During auto zero: if the module detects that the sensor input is less than 1 volt or greater than 4 volts.

Possible Causes

PASSENGER SEAT HARNESS WIRES CHAFED, PIERCED, PINCHED, PARTIALLY BROKEN

PASSENGER SEAT HARNESS CONNECTOR TERMINALS BROKEN, BENT PUSHED OUT, SPREAD, CORRODED, CONTAMINATED

RIGHT-REAR PASSENGER SEAT WEIGHT SENSOR

DAMAGE TO THE PASSENGER SEAT STRUCTURE, RISER ASSEMBLY, CROSSMEMBERS, SEAT TRACKS, FLOOR PAN

OCCUPANT CLASSIFICATION MODULE (OCM)

Diagnostic Test

1. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT CLASSIFICATION MODULE (OCM)

NOTE: Ensure that the battery is fully charged.

Turn the ignition on, then off, and then on again.
With the scan tool, read Occupant Classification Module (OCM) DTCs.

Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

Yes

Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of symptoms.

Go To 2

2. VERIFY THAT DTC B1B87-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR PERFORMANCE IS ACTIVE

With the scan tool, read OCM DTCs.

Does the scan tool display active: B1B87-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR PERFORMANCE?

Yes

Go To 3

Go To 6

3. INSPECT PASSENGER SEAT HARNESS WIRES AND CONNECTORS

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Using the wiring diagram / schematic as a guide, inspect the Passenger Seat Harness wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.

Are any of these conditions present?

Yes

NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.
Replace the Passenger Seat Harness in accordance with the Service Information.
Perform *OCM SYSTEM VERIFICATION TEST.

Go To 4

Diagnostic Test

4. PERFORM THE OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST

NOTE: Ensure that the battery is fully charged.

NOTE: The Occupant Classification Seat Weights 9077 are required to perform this test.

Remove any special tools or jumper wires and reconnect all previously disconnected components – except the battery.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

NOTE: Failure to follow the test instructions or aborting the test will cause faults to set when performing the Occupant Classification Module System Verification Test. To prevent faults due to process errors: verify that all tests steps that led you here were performed as directed; verify that the ignition is in run; Wait 30 seconds after changing the seat weight before proceeding to allow the system to stabilize; only press scan tool buttons when directed to do so; and perform the Occupant Classification Module System Verification Test to completion.

With the scan tool in OCM, select More Options, select System Tests, and select Occupant Classification Module System Verification Test. Run the test by following the instructions displayed on the scan tool. When the test is complete, wait two minutes, and then proceed as follows.
With the scan tool, read OCM DTCs.

Does the scan tool display any active PASSENGER SEAT WEIGHT SENSOR DTCs?

Yes

Go To 5

Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

5. PERFORM OCCUPANT CLASSIFICATION MODULE SYSTEM VERIFICATION TEST

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Verify that all of the Seat Weight Sensor mounting screws are tightened to specification. Refer to GROUP 23 for specification.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

Perform the *Diagnosis / Checkout Procedure For Seat Weight Sensors in this Section.

But Other DTCs Present
Diagnose and repair the DTCs. Refer to the Table of Contents in this Section for a complete list of symptoms.

No Active DTCs Present
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

6. CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents in this Section for a complete list of airbag system diagnostic procedures.

With the scan tool, record and erase all Airbag System Module DTCs.

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
Reconnect all disconnected components and harness connectors.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

With the scan tool, monitor for active codes while performing the following:

Wiggle the wiring harness and connectors of the related airbag circuit.
Continue the test until either a code becomes active or the problem area is isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question / causing the intermittent condition.

Are any ACTIVE DTCs present?

Yes

Select the appropriate diagnostic procedure from the Table of Contents in this section.

No problem found at this time. Perform the Occupant Classification Module System Verification Test in this Section. Erase all codes before returning vehicle to customer.
