B1B7E-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT LOW

For a complete wiring diagram Refer to Section 8W.

When Monitored:
While the CAN bus ignition status is in IGN_RUN, the module checks the sensor input ranges.
Set Condition:
If the module detects that the sensor input is less than 3.4 +/- 0.6% of the (R701) Seat Weight Sensor 5 Volt circuit voltage. This DTC will also set if the (R701) Seat Weight Sensor 5 Volt circuit is shorted to ground. However, this condition would prevent communication with the OCM and cause a Lost Communication With OCM DTC to set in other modules. Also, this DTC will remain active after the condition that set this fault is no longer present. This condition is referred to as latching the DTC for the ignition cycle. Cycling the ignition key will change the status from active to stored if the condition that set the fault is no longer present.

Possible Causes

ACTIVE B1B7E DTC AND B1B7F DTC AT THE SAME TIME

PASSENGER SEAT HARNESS IMPROPERLY ROUTED

PASSENGER SEAT HARNESS WIRES CHAFED, PIERCED, PINCHED, PARTIALLY BROKEN

PASSENGER SEAT HARNESS CONNECTOR TERMINALS BROKEN, BENT PUSHED OUT, SPREAD, CORRODED, CONTAMINATED

(R718) RT-FT SEAT WEIGHT SENSOR SIGNAL CIRCUIT SHORTED TO GROUND

(R718) RT-FT SEAT WEIGHT SENSOR SIGNAL CIRCUIT OPEN

(R701) SEAT WEIGHT SENSOR 5 VOLT CIRCUIT OPEN

RIGHT-FRONT SEAT WEIGHT SENSOR

OCCUPANT CLASSIFICATION MODULE (OCM)

Diagnostic Test

1. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT CLASSIFICATION MODULE (OCM)

NOTE: Ensure that the battery is fully charged.

Turn the ignition on, then off, and then on again.
With the scan tool, read Occupant Classification Module (OCM) DTC.

Does the scan tool display any active DTC relating to internal faults, ignition faults, or battery faults?

Yes

Diagnose and repair the DTC. Refer to the Table of Contents in this Section for a complete list of symptoms.

Go To 2

2. VERIFY THAT DTC B1B7E-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT LOW IS ACTIVE

With the scan tool, read OCM DTC.

Does the scan tool display active: B1B7E-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT LOW?

Yes

Go To 3

Go To 10

3. VERIFY THAT DTC B1B7F-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT HIGH AND B1B7E-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT LOW ARE BOTH ACTIVE

With the scan tool, read OCM DTC.

Does the scan tool display active: B1B7F-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT HIGH?

Yes

Perform B1B7F-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT HIGH diagnostic test.

Go To 4

4. INSPECT PASSENGER SEAT HARNESS WIRES AND CONNECTORS

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Using the wiring diagram / schematic as a guide, inspect the Passenger Seat Harness wiring and connectors. Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.

Are any of these conditions present?

Yes

NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.
Replace the Passenger Seat Harness in accordance with the Service Information.
Perform *OCM SYSTEM VERIFICATION TEST.

Go To 5

5. VERIFY THAT PASSENGER SEAT HARNESS IS ROUTED CORRECTLY

Verify that the Passenger Seat Harness is routed correctly.

Is the Passenger Seat Harness routed correctly?

Yes

Go To 6

Reroute the Passenger Seat Harness as necessary.
Perform *OCM SYSTEM VERIFICATION TEST.

6. CHECK VOLTAGE OF (R701) SEAT WEIGHT SENSOR 5 VOLT CIRCUIT

Disconnect the Right-Front Seat Weight Sensor connector.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

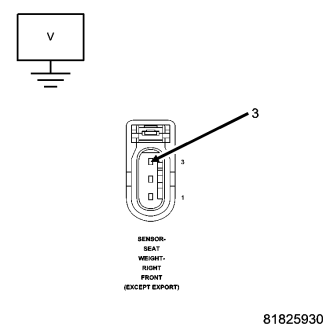

Measure the voltage of the (R701) Seat Weight Sensor 5 Volt circuit.

Is the voltage above 4.8 volts?

Yes

Go To 7

Go To 9

7. CHECK (R718) RT-FT SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Disconnect the OCM C2 connector.

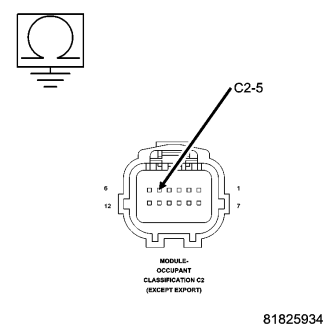

Measure the resistance of the (R718) RT-FT Seat Weight Sensor Signal circuit between the OCM C2 connector cavity 5 and ground.

Is the resistance below 5.0 ohms?

Yes

NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.
Replace the Passenger Seat Harness in accordance with the Service Information.
Perform *OCM SYSTEM VERIFICATION TEST.

Go To 8

8. CHECK (R718) RT-FT SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR AN OPEN

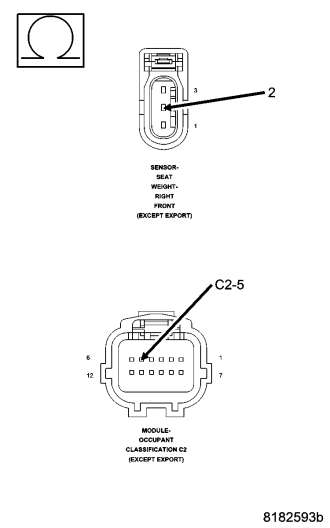

Measure the resistance of the (R718) RT-FT Seat Weight Sensor Signal circuit between the OCM C2 connector cavity 5 and the Right-Front Seat Weight Sensor connector cavity 2.

Is the resistance below 5.0 ohms?

Yes

Replace the Right-Front Seat Weight Sensor in accordance with the Service Information.
Perform *OCM SYSTEM VERIFICATION TEST.
If DTC B1B7E-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT LOW returns active, replace the OCM in accordance with the Service Information.

NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.
Replace the Passenger Seat Harness in accordance with the Service Information.
Perform *OCM SYSTEM VERIFICATION TEST.

9. CHECK (R701) SEAT WEIGHT SENSOR 5 VOLT CIRCUIT FOR AN OPEN

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Disconnect the OCM C2 connector.

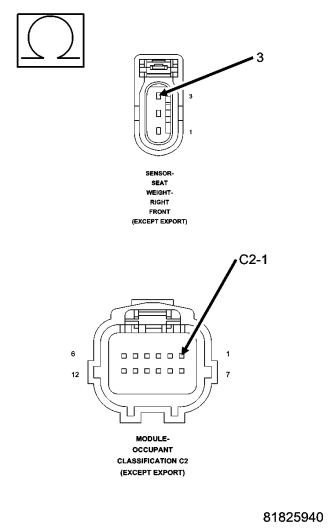

Measure the resistance of the (R701) Seat Weight Sensor 5 Volt circuit between the OCM C2 connector cavity 1 and the Right-Front Seat Weight Sensor connector cavity 3.

Is the resistance below 5.0 ohms?

Yes

Replace the OCM in accordance with the Service Information.
Perform *OCM SYSTEM VERIFICATION TEST.

NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or testing for is present in the Seat Harness.
Replace the Passenger Seat Harness in accordance with the Service Information.
Perform *OCM SYSTEM VERIFICATION TEST.

10. CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents in this Section for a complete list of airbag system diagnostic procedures.

With the scan tool, record and erase all Airbag System Module DTC.

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chaffed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
Reconnect all disconnected components and harness connectors.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

With the scan tool, monitor for active codes while performing the following:

Wiggle the wiring harness and connectors of the related airbag circuit.
Continue the test until either a code becomes active or the problem area is isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question / causing the intermittent condition.

Are any ACTIVE DTC present?

Yes

Select the appropriate diagnostic procedure from the Table of Contents in this section.

No problem found at this time. Perform the Occupant Classification Module System Verification Test in this Section. Erase all codes before returning vehicle to customer.
