B1B0A-PASSENGER AIRBAG SQUIB 1 CIRCUIT OPEN

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.
Set Condition:
The Occupant Restraint Controller (ORC) monitors the resistance of the Passenger Squib 1 circuits. The ORC will set this DTC if it detects an open or high resistance on the Passenger Squib 1 circuits.

Possible Causes

(R42) PASSENGER SQUIB 1 LINE 2 CIRCUIT OPEN

(R44) PASSENGER SQUIB 1 LINE 1 CIRCUIT OPEN

PASSENGER AIRBAG

OCCUPANT RESTRAINT CONTROLLER (ORC)

Diagnostic Test

1. DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following test.

Turn the ignition on.

Select ACTIVE or STORED DTC:

ACTIVE DTC

Go To 2

STORED DTC

Go To 5

2. CHECK FOR OPEN SQUIB CIRCUITS IN PASSENGER AIRBAG

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Disconnect the Passenger Airbag Squib connectors.

NOTE: Check connectors - Clean and repair as necessary.

Connect the 8443 Load Tool and 8443-8 Jumper to the Passenger Airbag Squib connectors.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

With the scan tool, read the active ORC DTCs.

Does the scan tool display: B1B0A-PASSENGER AIRBAG SQUIB 1 CIRCUIT OPEN?

Yes

Go To 3

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.
Replace the Passenger Airbag in accordance with the Service Information.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

3. CHECK (R42) PASSENGER SQUIB 1 LINE 2 CIRCUIT FOR AN OPEN

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Disconnect the 8443 Load Tool and Jumper from the Passenger Airbag Squib connectors.
Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.

Connect the 8443-32-L ORC Adaptor to the ORC connectors.

NOTE: The IP Harness is always connected to the right side (C1) of the 8443-32-L Adapter.

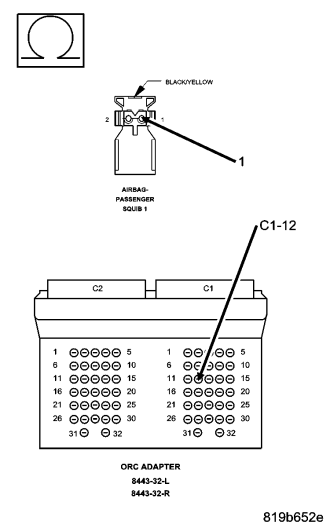

Measure the resistance of the (R42) Passenger Squib 1 Line 2 between the Passenger Airbag Squib connector circuit cavity 1 and the 8443-32-L Adaptor cavity C1-12.

Is the resistance below 1.0 ohm?

Yes

Go To 4

Repair the (R42) Passenger Squib 1 Line 2 circuit for an open.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

4. CHECK (R44) PASSENGER SQUIB 1 LINE 1 CIRCUIT FOR AN OPEN

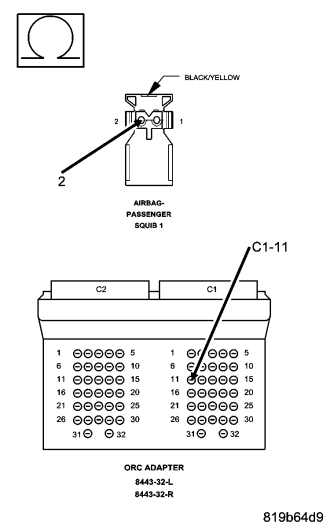

Measure the resistance of the (R44) Passenger Squib 1 Line 1 circuit between the Passenger Airbag Squib connector circuit cavity 2 and the 8443-32-L Adaptor cavity C1-11.

Is the resistance below 1.0 ohm?

Yes

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and serious or fatal injury.
Replace the ORC in accordance with Service Information.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

Repair the (R44) Passenger Squib 1 Line 1 circuit for an open.
Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

5. CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents in this Section for a complete list of airbag system diagnostic procedures.

With the scan tool, record and erase all Airbag System Module DTCs.

WARNING: To avoid serious or fatal injury, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
Reconnect all disconnected components and harness connectors.

WARNING: To avoid serious or fatal injury, turn the ignition on, then reconnect the battery.

With the scan tool, monitor for active codes while performing the following:

Wiggle the wiring harness and connectors of the related airbag circuit.
Continue the test until either a code becomes active or the problem area is isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question / causing the intermittent condition.

Are any ACTIVE DTCs present?

Yes

Select the appropriate diagnostic procedure from the Table of Contents in this section.

No problem found at this time. Erase all codes before returning the vehicle to the customer.
