*ONE PASSENGER DOOR LOCK INOPERATIVE

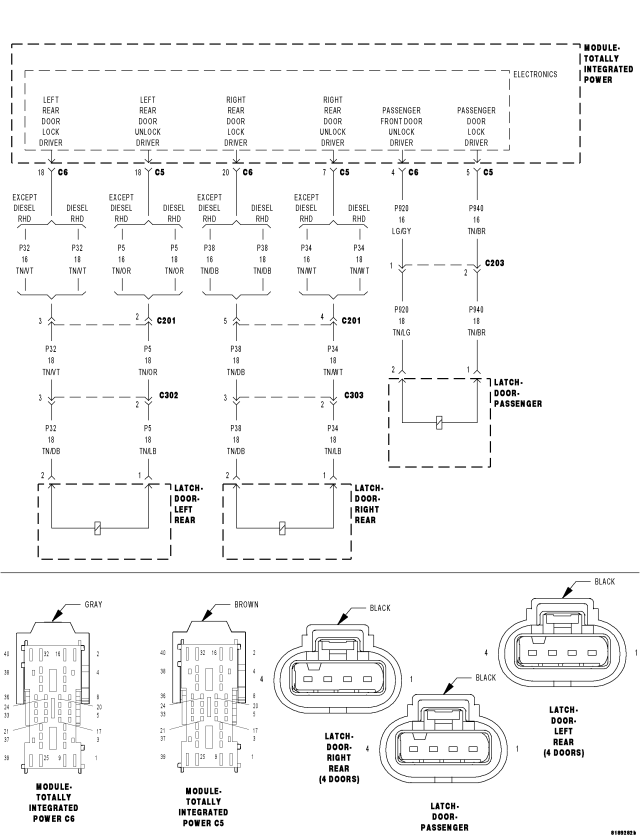

For a complete wiring diagram Refer to Section 8W.

Possible Causes

(P32), (P38) OR (P920) DOOR LOCK DRIVER CIRCUIT OPEN

(P32, (P38) OR (P920) DOOR LOCK DRIVER CIRCUIT SHORT TO GROUND

(P5), (P34) OR (P940) DOOR UNLOCK DRIVER CIRCUIT OPEN

(P5), (P34) OR (P940) DOOR UNLOCK DRIVER CIRCUIT SHORT TO GROUND

TOTALLY INTEGRATED POWER MODULE (TIPM)

Diagnostic Test

1. PASSENGER DOOR LATCH INOPERATIVE

NOTE: Graphics in this test show Left Rear Latch but the other 2 passenger latches are similar.

Turn the ignition off.
Disconnect the inoperative Passenger Door latch connector.

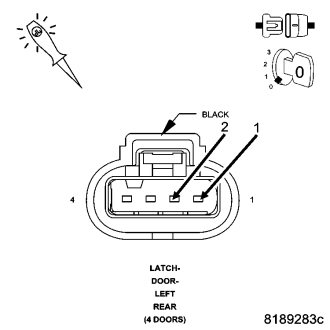

Connect a test light between the Door Lock Driver circuit and the Door Unlock Driver circuit.
Close the front doors or trip the door latches to the closed position.
Operate the door locks in both positions and observe the test light.

Does the test light illuminate brightly for approximately 300 ms. when the door locks are actuated?

Yes

Replace the Passenger Door Latch Assembly.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

No

Go To 2

2. PASSENGER DOOR UNLOCK DRIVER CIRCUIT OPEN

Turn the ignition off.
Disconnect the TIPM C5 connector.

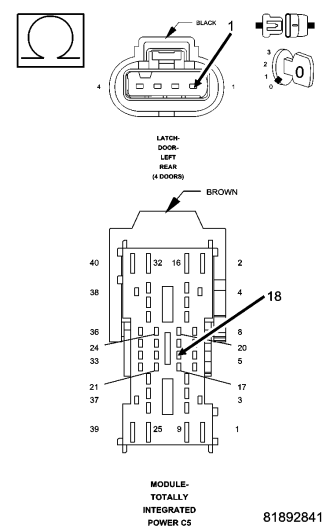

Measure the resistance of the appropriate Door Unlock Driver circuit between the Latch connector and the TIPM C5 connector.

Is the resistance below 2.0 ohms?

No

Using the wiring diagram/schematic as a guide, measure the circuit from the in-line door harness connector to the latch connector to determine if the wire is open in the door harness or the instrument panel harness. Repair the appropriate Door Unlock Driver circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

Yes

Go To 3

3. PASSENGER DOOR UNLOCK DRIVER CIRCUIT SHORT TO GROUND

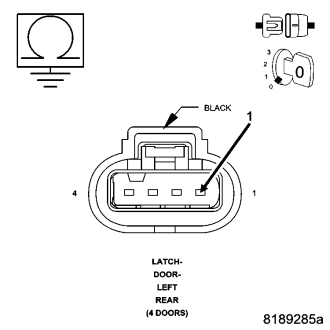

Measure the resistance between Ground and the appropriate Door Unlock Driver circuit.

Is the resistance below 1000.0 ohms?

Yes

Using the wiring diagram/schematic as a guide, measure the circuit from the in-line door harness connector to ground to determine if the wire is shorted in the door harness or the instrument panel harness. Repair the appropriate Door Unlock Driver circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

No

Go To 4

4. PASSENGER DOOR LOCK DRIVER CIRCUIT OPEN

Disconnect the TIPM C6 connector.

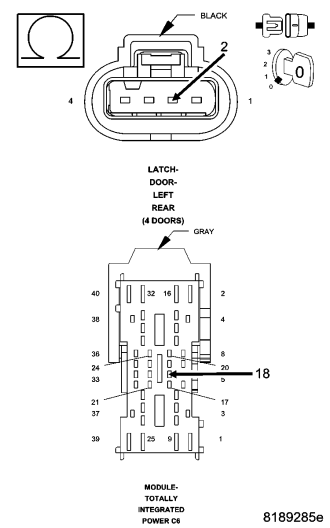

Measure the resistance of the appropriate Door Lock Driver circuit between the TIPM C6 connector and the appropriate Door Latch connector.

Is the resistance below 2.0 ohms?

Yes

Go To 5

No

Using the wiring diagram/schematic as a guide, measure the circuit from the in-line door harness connector to the latch connector to determine if the wire is open in the door harness or the instrument panel harness. Repair the appropriate Door Lock Driver circuit for an open.
Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

5. PASSENGER DOOR LOCK DRIVER CIRCUIT SHORT TO GROUND

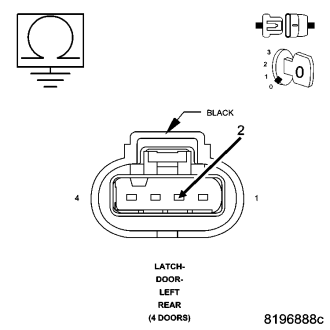

Measure the resistance between Ground and the appropriate Door Lock Driver circuit.

Is the resistance below 1000.0 ohms?

Yes

Using the wiring diagram/schematic as a guide, measure the circuit from the in-line door harness connector to ground to determine if the wire is shorted in the door harness or the instrument panel harness. Repair the appropriate Door Lock Driver circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)

No

Replace the Totally Integrated Power Module in accordance with service information.
Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
