B2339–HORN SWITCH STUCK – CLUSTER

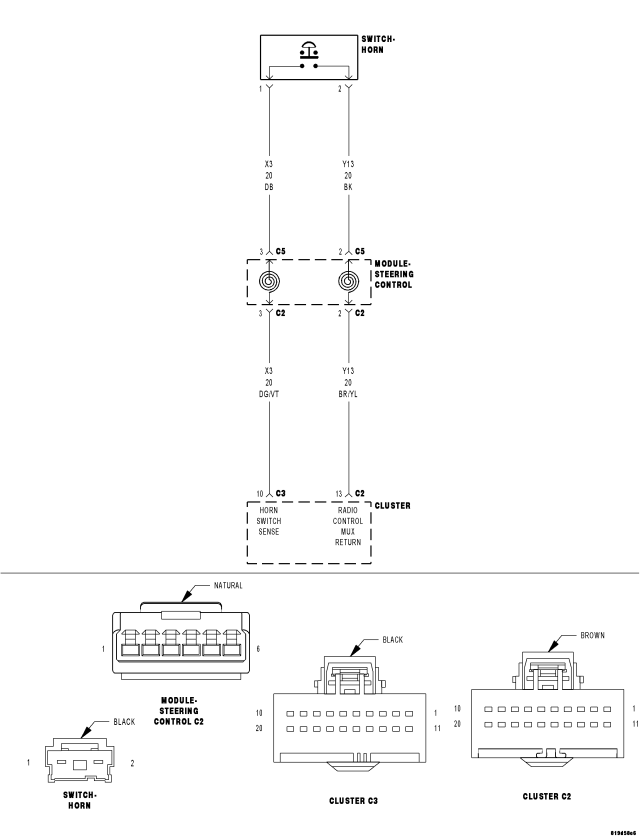

For a complete wiring diagram Refer to Section 8W.



Possible Causes
HORN SWITCH
CLOCKSPRING
(X3) HORN SWITCH SENSE CIRCUIT SHORTED TO GROUND
(X3) HORN SWITCH SENSE CIRCUIT SHORTED TO (Y13) RADIO CONTROL RETURN
INSTRUMENT CLUSTER




Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC's
Operate the Horn Switch several times.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTC's.

Does the scan tool display HORN SWITCH STUCK?

Yes


No

2. HORN SWITCH SHORTED



WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

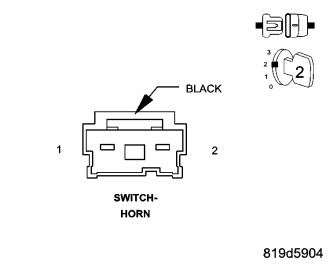

Disconnect the Horn switch connector.
With the scan tool, erase DTC's
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTC's.

Does the scan tool display HORN SWITCH STUCK?

Yes


No

3. STEERING WHEEL HARNESS SHORTED

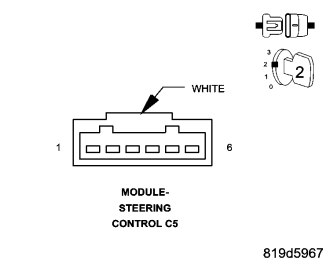

Disconnect the Steering Control Module C5 connector.
With the scan tool, erase DTC's
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTC's.

Does the scan tool display HORN SWITCH STUCK?

Yes


No

4. CLOCKSPRING SHORTED

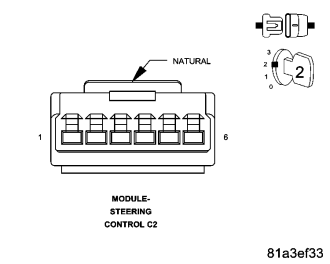

Disconnect the Steering Control Module C2 connector.
With the scan tool, erase DTC's
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTC's.

Does the scan tool display HORN SWITCH STUCK?

Yes


No

5. (X3) HORN SWITCH SENSE SHORTED TO GROUND



Turn the ignition off.
Disconnect the Cluster C2 and C3 connector.

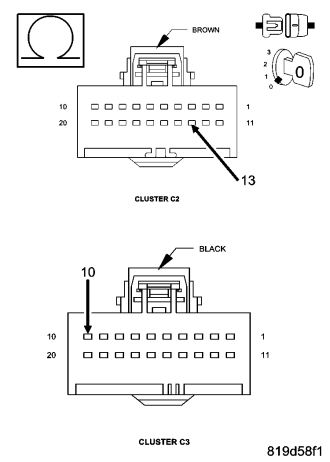

Measure the resistance between (X3) Horn Switch Sense and the (X13) Radio Control Return circuit.

Is the resistance below 1000.0 ohms?

Yes


No

6. (X3) HORN SWITCH SENSE SHORTED TO GROUND

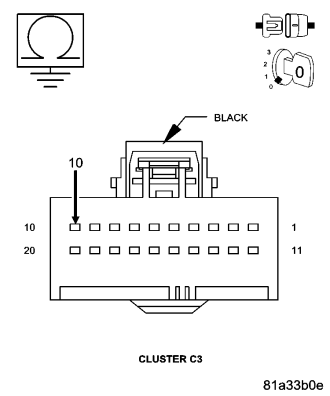

Measure the (X3) Horn Switch Sense circuit to ground.

Is the resistance below 1000.0 ohms?

Yes


No
