DESCRIPTION |
FIGURE |
|

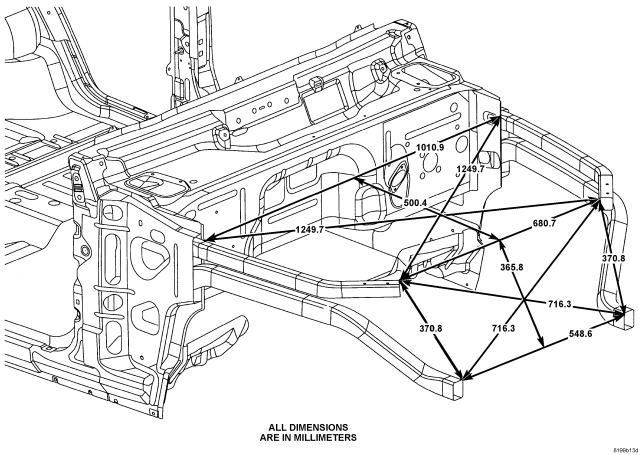

ENGINE BOX |
ENGINE BOX
|
|

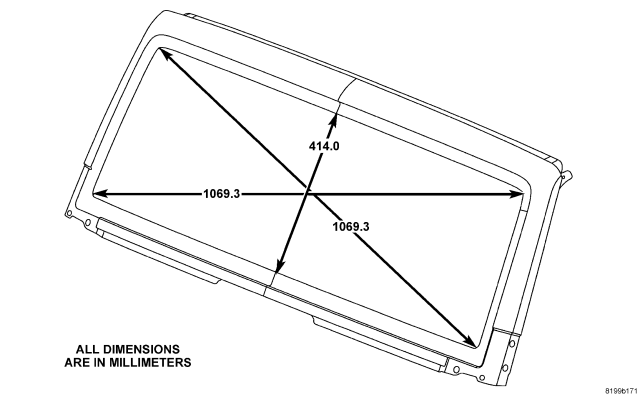

WINDSHIELD OPENING |
WINDSHIELD OPENING
|
|

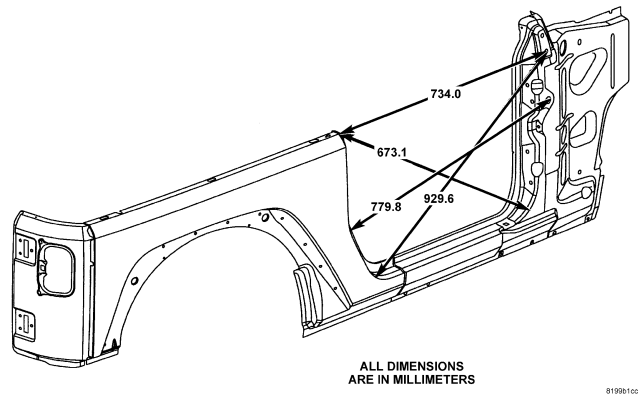

FRONT DOOR OPENING - JK72 ONLY |
FRONT DOOR OPENING - JK72 ONLY
|
|

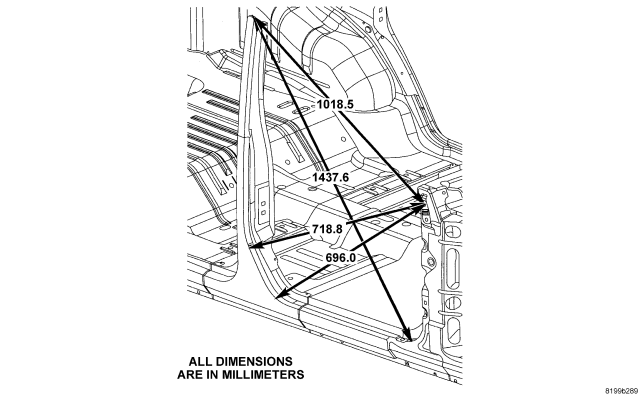

FRONT DOOR OPENING - JK74 ONLY |
FRONT DOOR OPENING - JK74 ONLY
|
|

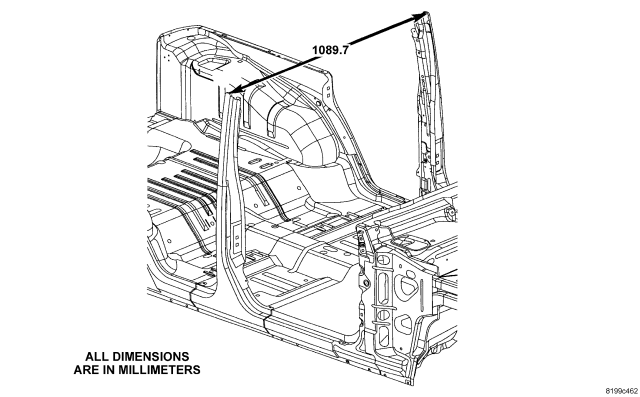

B-PILLAR CROSS/CAR - JK74 ONLY |
B-PILLAR CROSS/CAR - JK74 ONLY
|
|

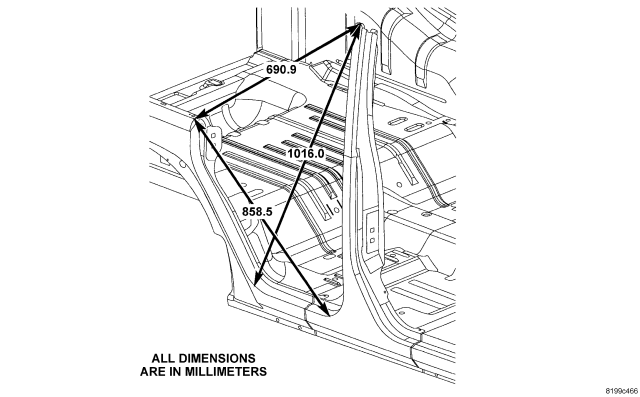

REAR DOOR OPENING - JK74 ONLY |
REAR DOOR OPENING - JK74 ONLY
|
|

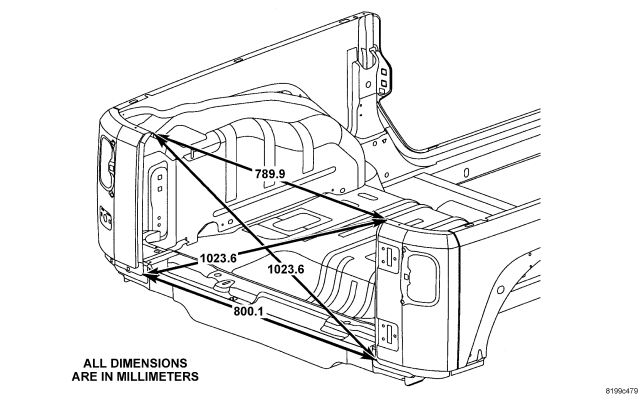

TAILGATE OPENING |
TAILGATE OPENING
|
| ENGINE BOX |
| WINDSHIELD OPENING |
| FRONT DOOR OPENING - JK72 ONLY |
| FRONT DOOR OPENING - JK74 ONLY |
| B-PILLAR CROSS/CAR - JK74 ONLY |
| REAR DOOR OPENING - JK74 ONLY |
| TAILGATE OPENING |
